ACAR ALUMINUM CONDUCTOR ALLOY REINFORCED

Overview

DESCRIPTION

An outer layer of Aluminum conductor concentrically stranded over the central core of solid Aluminum alloy or Stranded Aluminum alloy wire to form ACAR conductor.

APPLICATION

ACAR conductors are used as bare overhead conductor for power transmission and distribution lines,where higher capacity and strength for equal weight are prime line considerations.ACAR is the solution over ACSR due to its better strength-to-weight ratio.

STANDARD

ASTM B524/B524M

CONSTRUCTION

1)Outer layer: Aluminum alloy wire 6201
2)Center: Aluminum wire 1350

ADDITIONAL STANDARDS

IEC, BS, ASTM, CAN-CSA, DIN, IS, AS and relevant national and international standards.

ACAR Conductor Specifications:

Get all the answers to the most frequently asked questions (FAQs) regarding ACAR Conductor chart,ACAR Conductor sizes,ACAR Conductor full form,ACAR Conductor ampacity,ACAR Conductor diameter and much, much more.

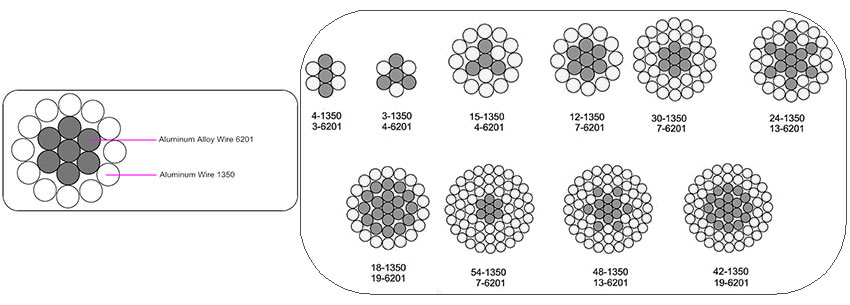

acar structure

ACAR manufactured by GE meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc

ACAR Conductor ASTM Standard

Show entries

Size		No. of 1350 Wire /Dia.	No. of 6201 Wire /Dia.	Approx. Overall Dia.	Approx. Weight	Rated Strength	Max. DC Resistance at 20 °C
AWG	mm2	No./mm	No./mm	mm	kg/km	kgf	Ω/km
4	21.1	4/1.96	3/1.96	5.88	58.22	507.5	1.4757
2	33.63	4/2.47	3/2.47	7.42	92.55	793.8	0.9282
1/0	53.51	4/3.12	3/3.12	9.36	147.3	1221.9	0.5833
2/0	67.44	4/3.50	3/3.50	10.51	185.6	1502.5	0.4628
3/0	85.03	4/3.93	3/3.93	11.8	234	1861.4	0.3671
195.7	99.16	4/4.25	3/4.25	12.74	272.9	2170.9	0.3148
4/0	107.22	4/4.42	3/4.42	13.25	295.1	2347.3	0.2911
250	126.68	12/2.91	7/2.91	14.57	348.8	2813.8	0.2442
300	152.01	12/3.20	7/3.20	15.96	418.6	3344	0.2035
350	177.35	15/3.45	4/3.45	17.24	488.7	3390	0.1704
350	177.35	12/3.45	7/3.45	17.24	488.3	3816	0.1744
355	179.88	12/3.47	7/3.47	17.36	495.3	3871	0.1720
392.5	198.88	24/2.62	13/2.62	18.3	547.7	4277	0.1551
400	202.68	12/3.69	7/3.69	18.4	558.1	4318	0.1526
450	228.02	12/3.91	7/3.91	19.54	627.8	4810	0.1357
450	228.02	18/2.80	19/2.80	19.61	627.3	5401	0.1387
450	228.02	15/3.91	4/3.91	19.54	628.4	4240	0.1325
465.9	236.08	12/3.98	7/3.98	19.89	650	4980	0.1310
465.9	236.08	18/2.85	19/2.85	19.95	649.5	5592	0.1339
500	253.35	12/4.12	7/4.12	20.6	697.6	5344	0.1221
500	253.35	18/2.95	19/2.95	20.7	697	6001	0.1248
500	253.35	30/2.95	7/2.95	20.7	698.3	4901	0.1189
500	253.35	24/2.95	13/2.95	20.7	697.7	5395	0.1218
550	278.69	18/3.10	19/3.10	21.68	766.7	6556	0.1135
550	278.69	15/4.32	4/4.32	21.61	768	5183	0.1084
600	304.02	18/3.23	19/3.23	22.64	836.4	7152	0.1040
600	304.02	24/3.24	13/3.24	22.64	837.2	6409	0.1015
650	329.36	18/3.37	19/3.37	23.57	906.1	7534	0.0960
650	329.36	24/3.37	13/3.37	23.57	907	6798	0.0937
700	354.7	30/3.49	7/3.49	24.46	977.6	6680	0.0849
700	354.7	18/3.49	19/3.49	24.46	975.9	8114	0.0891
700	354.7	24/3.49	13/3.49	24.46	976.7	7240	0.0870
739.8	374.86	18/3.59	19/3.59	25.14	1031	8514	0.0844
750	380.03	33/3.62	4/3.62	25.31	1048	6525	0.0783
750	380.03	30/3.62	7/3.62	25.31	1047	7056	0.0793
750	380.03	18/3.62	19/3.62	25.31	1046	8631	0.0832
750	380.03	24/3.62	13/3.62	25.31	1046	7763	0.0812
800	405.37	18/3.74	19/3.74	26.14	1115	9207	0.0780
800	405.37	24/3.74	13/3.74	26.14	1116	8280	0.0761
850	430.7	18/3.85	19/3.85	26.95	1185	9711	0.0734
850	430.7	24/3.85	13/3.85	26.95	1186	8706	0.0716
853.7	432.58	24/3.86	13/3.86	27.01	1191	8744	0.0713
853.7	432.58	30/3.86	7/3.86	27.01	1192	7917	0.0696
900	456.04	18/3.96	19/3.96	27.7	1255	10283	0.0693
900	456.04	24/3.96	13/3.96	27.73	1256	9219	0.0677
900	456.04	30/3.96	7/3.96	27.7	1257	8347	0.0661
918	465.16	18/4.00	19/4.00	28	1280	10488	0.0680
927.2	469.82	18/4.02	19/4.02	28.1	1293	10593	0.0673
950	481.37	18/4.07	19/4.07	28.49	1324	10854	0.0657
950	481.37	30/4.07	7/4.07	28.5	1327	8810	0.0626
950	481.37	24/4.07	13/4.07	28.49	1326	9731	0.0641
1000	506.71	18/4.18	19/4.18	29.23	1394	11425	0.0624
1000	506.71	54/3.25	7/3.25	29.27	1397	8890	0.0588
1000	506.71	30/4.18	7/4.18	29.23	1397	9274	0.0594
1000	506.71	42/3.25	19/3.25	29.27	1396	10211	0.0605
1000	506.71	33/3.25	28/3.25	29.27	1394	10981	0.0619
1024.5	519.12	30/4.23	7/4.23	29.59	1431	9501	0.0580
1024.5	519.12	18/4.23	19/4.23	29.59	1429	11707	0.0609
1024.5	519.12	24/4.23	13/4.23	29.59	1430	10494	0.0594
1080.6	547.55	24/4.34	13/4.34	30.39	1508	11069	0.0563
1080.6	547.55	18/4.34	19/4.34	30.39	1506	12346	0.0578
1100	557.38	24/4.38	13/4.38	30.66	1535	11267	0.0554
1100	557.38	18/4.38	19/4.38	30.66	1533	12568	0.0567
1100	557.38	30/4.38	7/4.38	30.66	1536	10201	0.0540
1100	557.38	48/3.41	13/3.41	30.7	1536	10408	0.0542
1100	557.38	42/3.41	19/3.41	30.7	1535	11232	0.0550
1172	593.86	18/4.52	19/4.52	31.64	1634	13390	0.0532
1198	607.04	30/4.57	7/4.57	31.99	1673	11110	0.0496
1198	607.04	24/4.57	13/4.57	31.99	1672	12271	0.0508
1200	608.05	18/4.57	19/4.57	32.02	1673	13710	0.0520
1200	608.05	24/4.57	13/4.57	32.02	1674	12292	0.0507
1200	608.05	30/4.57	7/4.57	32.02	1676	11129	0.0495
1200	608.05	48/3.56	13/3.56	32.06	1676	11202	0.0497
1250	633.38	30/4.67	7/4.67	32.68	1746	11592	0.0476
1250	633.38	48/3.64	13/3.64	32.72	1746	11668	0.0477
1250	633.38	54/3.64	7/3.64	32.72	1746	10933	0.0470
1250	633.38	33/3.64	28/3.64	32.72	1743	13615	0.0495
1300	658.72	42/3.71	19/3.71	33.37	1814	13126	0.0466
1300	658.72	18/4.76	19/4.76	33.33	1812	14853	0.0480
1300	658.72	30/4.76	7/4.76	33.33	1816	12056	0.0457
1303	660.24	54/3.04	37/3.04	33.43	1818	14367	0.0471
1361.5	689.88	54/3.79	7/3.79	34.15	1902	11908	0.0432
1400	709.39	33/3.85	28/3.85	34.63	1952	15123	0.0442
1400	709.39	48/3.85	13/3.85	34.63	1955	12890	0.0426
1400	709.39	42/3.85	19/3.85	34.63	1954	13976	0.0432
1400	709.39	54/3.85	7/3.85	34.63	1956	12044	0.0420
1500	760.06	33/3.98	28/3.98	35.85	2092	16203	0.0413
1500	760.06	42/3.98	19/3.98	35.85	2093	14974	0.0404
1600	810.73	42/4.11	19/4.11	37.02	2233	15973	0.0378
1600	810.73	54/4.11	7/4.11	37.02	2235	13764	0.0368
1700	861.4	42/4.24	19/4.24	38.16	2373	16971	0.0356
1700	861.4	33/4.24	28/4.24	38.16	2371	18363	0.0364
1703	862.92	42/4.24	19/4.24	38.2	2377	17001	0.0355
1800	912.07	42/4.36	19/4.36	39.27	2512	17969	0.0336
1800	912.07	33/4.36	28/4.36	39.27	2510	19701	0.0344
1900	962.74	42/4.48	19/4.48	40.34	2652	18968	0.0319
2000	1013.41	42/4.60	19/4.60	41.39	2791	19966	0.0303
2250	1140.09	54/4.00	37/4.0	43.93	3169	23572	0.0276
2493	1263.22	54/4.20	37/4.20	46.25	3512	26118	0.0249
2500	1266.77	54/4.21	37/4.21	46.31	3521	26191	0.0248
2750	1393.45	54/4.42	37/4.42	48.57	3874	28811	0.0225
3000	1520.1	54/4.61	37/4.61	50.73	4226	31430	0.0207

Few More thing you should know

What’s ACAR Conductor?

Aluminium Conductor Alloy Reinforced (ACAR) is formed by concentrically stranded wires of Aluminium 1350 on high strength Aluminium -Magnesium -Silicon(AlMgSi) alloy core. The number of wires of Aluminum1350 & AlMgSi alloy depends on the cable design. Though the general design comprises a stranded core of AlMgSi alloy strand, in certain cable constructions , the wires of AlMgSi alloy strands can be distributed in layers throughout the Aluminium 1350 strands.

What’s The Advantages of ACAR Conductor?

ACAR has got a better mechanical and electrical properties as compared to an equivalent ACSR, AAC or AAAC. A very good balance between the mechanical and electrical properties therefore makes ACAR the best choice where the ampacity, strength and light weight are the main consideration of the line design. These conductors are extensively used in overhead transmission and distribution lines.

What’s The Features of ACAR Conductor?

improved strength to weight ratio
better mechanical properties
improved electrical characteristics
excellent resistance to corrosion
