ACAR 750MCM Aluminum Conductor Alloy Material Reinforced ASTM B524

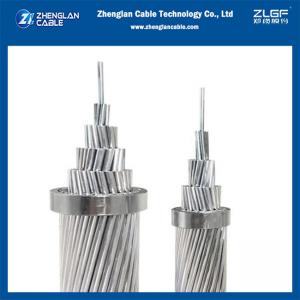

ACAR 750MCM Aluminum Conductor Alloy Material Reinforced ASTM B524 image
ACAR 750MCM aluminum conductor alyminum alloy reinforced ASTM B524 are used as bare overhead transmission cable in primary and secondary distribution cable. The good strength-to-weight ratio makes ACAR applicable where both ampacity and strength are prime considerations in line design. For equal weight, ACAR offers higher strength and ampacity than ACSR.
| SR.NO | DESCRIPTION | RANGE | |
| 1 | Conductor Area | 10.6mm2 to 1520mm2 | 0.0164 in2 to 2.356 in2 |
| 2 | Conductor construction | 4Al/3Al Alloy to 72Al/19 Al Alloy | |
| 3 | Conductivity | 61% | |
| 4 | Conductivity of Al Alloy | 52.5% to 53% | |
| SR. NO. | CONDUCTOR CONSTRUCTION | MODOLUS OF ELASTICITY* | LINEAR COEFFCIENT* | ||
| MPA | KSI | /OC | /OF | ||
| 1 | 7 Strands | 62000 | 8992 | 23.0 X 10-6 | 12.8 X 10-6 |
| 2 | 19 Strands | 60000 | 8702 | 23.0 X 10-6 | 12.8 X 10-6 |
| 3 | 37 Strands | 57000 | 8267 | 23.0 X 10-6 | 12.8 X 10-6 |
| 4 | 61 Strands | 55000 | 7977 | 23.0 X 10-6 | 12.8 X 10-6 |
STANDARD
Basic design to ASTM 524/524M standards
ACAR 750MCM aluminum conductor alyminum alloy reinforced ASTM B524 Technical data
| kcmil | Area 2 mm |
Wire Size mm |
No.of wires | Overall Dia. mm |
Weight kg/km | Rated Strength kN |
DC Resistance at 20oC a/km |
|||||
| 1350 | 6201 | Total | 1350 | 6201 | Total | |||||||
| 750 | 380.2 | 3.617 | 18 | 19 | 37 | 25.32 | 510.3 | 535.7 | 1046 | 84.52 | 0.0815 | |
| 750 | 380.2 | 3.617 | 24 | 13 | 37 | 25.32 | 680.4 | 366.5 | 1046.9 | 76.16 | 0.0796 | |
| 750 | 380.2 | 3.617 | 30 | 7 | 37 | 25.32 | 850.5 | 197.4 | 1047.9 | 69.4 | 0.0777 | |
| 750 | 380.2 | 3.617 | 33 | 4 | 37 | 25.32 | 935.6 | 112.8 | 1048.4 | 64.26 | 0.0768 | |
Product show of ACAR 750MCM aluminum conductor alyminum alloy reinforced ASTM B524
