AC Conductor 95/16mm2 ACSR Conductor Overhead Bare Conductor Gost 839

AC conductor 95/16mm2 ACSR conductor overhead bare conductor Gost 839​

Overhead ACSR Conductors APPLICATION

A wire consisting of a steel core made of galvanized steel wires of normal strength and a TFC made of aluminum wires. ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

Overhead ACSR Conductors STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110/Gost 839 standards.

Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

Overhead ACSR Conductors CONSTRUCTION

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

Overhead ACSR Conductors ELECTRICAL PROPERTIES

Overhead ACSR Conductors SERVICE CONDITIONS

Overhead ACSR Conductors TECHNICAL DATA

CONSTRUCTION PARAMETERS

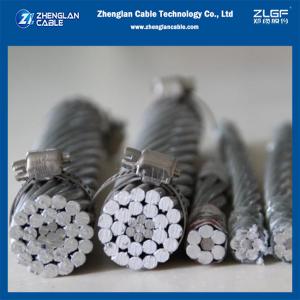

AC conductor 95/16mm2 ACSR conductor overhead bare conductor Gost 839 images
