AC Conductor 35/6.2mm2 Aluminum Conductor Steel Reinforced Gost 839

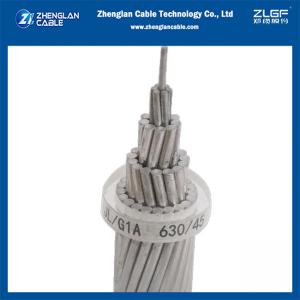

AC Conductor 35/6.2mm2 Aluminum Conductor Steel Reinforced Gost 839 image
AC conductor 35/6.2mm2 Aluminum conductor steel reinforced Gost 839
Overhead ACSR Conductors APPLICATION
A wire consisting of a steel core made of galvanized steel wires of normal strength and aluminum wires. widely used in the creation of overhead high-voltage power lines on supports with long spans, operating in difficult environmental conditions with the presence of wind, icing and snow sticking to the wires.
Overhead ACSR Conductors STANDARD
Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110/Gost 839 standards.
Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.
The product is used where the air serves as an insulator, and only on land:
Power lines.
Substation.
Power supply to switchgears.
Electrified transport lines.
Circuits that distribute power to electrical appliances and machines.
Overhead ACSR Conductors ELECTRICAL PROPERTIES
| density@20ºC | Aluminium: 2.703 kg/dm |
| Galvanised Steel: 7.80 kg/dm | |
| Temperature Coefficient@20°C | Aluminium: 0.00403 (°C) |
| resistivity@20°C | Aluminium: Should not exceed 0.028264 |
|
linear Expansivity |
Aluminium: 23 x10 (°C) |
| Galvanised Steel: 11.5 x10 (1/°C) |
Overhead ACSR Conductors SERVICE CONDITIONS
| Ambient Temperature | -5°C – 50°C |
| Wind Pressure | 80 – 130kg/m |
| Seismic Acceleration | 0.12 – 0.05g |
| Isokeraunic level | 10 – 18 |
| relative Humidity | 5 – 100% |
Overhead ACSR Conductors TECHNICAL DATA
| Numbers of Wires | Modules of Elasticity | Coeficient of linear Expansion | |||
| AL | STEEL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
| 6 | 1 | 81 | 11.5 x106 | 19.1 x10-6 | 10.6 x10-6 |
| 6 | 7 | 77 | 11.0 x106 | 19.8 x10-6 | 11.0 x10-6 |
| 12 | 7 | 107 | 15.2 x106 | 15.3 x10-6 | 8.5 x10-6 |
| 18 | 1 | 67 | 9.5 x106 | 21.2 x10-6 | 11.8 x10-6 |
| 24 | 7 | 74 | 10.5 x106 | 19.6 x10-6 | 10.9 x10-6 |
| 26 | 7 | 77 | 10.9 x106 | 18.9 x10-6 | 10.5 x10-6 |
| 28 | 7 | 79 | 11.2 x106 | 18.4 x10-6 | 10.2 x10-6 |
| 30 | 7 | 82 | 11.6 x106 | 17.8 x10-6 | 9.9 x10-6 |
| 30 | 19 | 80 | 11.4 x106 | 18.0 x10-6 | 10.0 x10-6 |
| 32 | 19 | 82 | 11.7 x106 | 17.5 x10-6 | 9.7 x10-6 |
| 54 | 7 | 70 | 9.9 x106 | 19.3 x10-6 | 10.7 x10-6 |
| 54 | 19 | 68 | 9.7 x106 | 19.4 x10-6 | 10.8 x10-6 |
AC conductor 35/6.2mm2 Aluminum conductor steel reinforced Gost 839 CONSTRUCTION PARAMETERS
| Code | Area | No. of Wires | Wire Diameter | Diameter | Mass per Unit | Rated Strength | DC Resistance | |||||
| AL | Steel | Total | AL | Steel | AL | Steel | Core | Cond. | Length | |||
| mm2 | 2 mm | 2 mm | mm | mm | mm | mm | kg/km | kN | Q/km | |||
| 35/6.2 | 36.9 | 6.2 | 41.2 | 6 | 1 | 2.8 | 2.8 | 2.8 | 8.4 | 148 | 13.2 | 0.7821 |
AC conductor 35/6.2mm2 Aluminum conductor steel reinforced Gost 839 images
Factory Equipment
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
