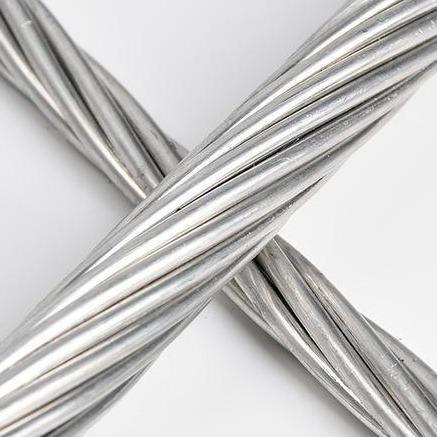

AACSR Bare Aluminium Conductor IEC 61089 Variable Steel Core Stranding

IEC 61089 Variable Steel Core Stranding AACSR Bare Aluminum Conductor Cable

Standard:

ASTM B 711, IEC 61089, DIN 48206, etc.

Description:

Compared with the conventional ACSR, the all aluminum alloy conductor steel reinforced features high tensile strength, light weight, sound creep resistance and good sag property. When setting up lines, our AACSR can help to reduce the iron tower height, enlarge the span length, and lower the cost.

Uses:

Construction:

AACSR bare aluminium conductor is a concentrically stranded conductor composed of one or more layers of 6201 -T81 aluminum alloy wire stranded with a high-strength coated steel core. The core may be a single wire or stranded, depending on the size. The proportion of aluminum alloy and steel can be varied to obtain sound current carrying capacity and mechanical strength in order to make our all aluminum alloy conductor steel reinforced best suited to each application. Additional corrosion protection is available through the application of grease to the core or infusion of the complete cable with grease.

Specificaiton:

Bare Aluminium Conductor
