AAC Code 95 2.5mm Overhead Aerial Bare Aluminum Conductor For Transmission Line

 China AAC Code 95 2.5mm Overhead Aerial Bare Aluminum Conductor For Transmission Line supplier

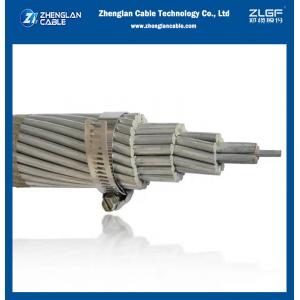

AAC Code 95 2.5mm Overhead Aerial Bare Aluminum Conductor For Transmission Line image

Get a Quote Email to us

AAC Code 95 19/2.5mm Overhead Aerial Bare Aluminum Conductor For Transmission Line Construction as per DIN 48201

Application

AAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Rated Voltage: 35kv/110kv/220kv/500kv
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Standard:
Construction as per DIN 48201,BS 215 ,IEC 60189,ASTM-B231,CSA C49

Technical parameters

DIN 48201

CODE SECTION STRANDING OVERALL DIAMETER RATED STRENGTH N ELECTRICAL RESISTANCE CABLE WEIGHT CURRENT CARRYING CAPACITY
mm2 No Q mm mm ohms/km kg/km (1) Amps
16 15.89 7 1.7 5.1 2840 1.8018 44 110
25 24.25 7 2.1 6.3 4170 1.1808 67 145
35 34.46 7 2.5 7.5 5740 0.8332 94 180
50 49.48 7 3 9 7950 0.5786 135 225
50 48.36 19 1.8 9 8440 0.595 133 225
70 65.82 19 2.1 10.5 11250 0.4371 181 270
95 93.27 19 2.5 12.5 15650 0.3085 256 340
120 117 19 2.8 14 18750 0.2459 322 390
150 147.1 37 2.25 15.7 25250 0.1961 406 455
185 181.6 37 2.5 17.5 30450 0.1587 501 520
240 242.5 61 2.25 20.2 39350 0.1192 670 625
300 299.4 61 2.5 22.5 47550 0.0965 827 710
400 400.1 61 2.89 26 60700 0.0722 1105 855
500 499.8 61 3.23 29.1 74500 0.0578 1381 990
625 626.3 91 2.96 32.6 95000 0.0462 1733 1140
800 802.1 91 3.35 36.8 118200 0.0361 2219 1340
1000 999.7 91 3.74 41.1 145500 0.029 2766 1540

Product show

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

If you are interested, please do not hesitate to contact us.Any inquiry will be welcomed.

We are China AAC Code 95 2.5mm Overhead Aerial Bare Aluminum Conductor For Transmission Line manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
