AAC Bee Mosquito All Aluminium Conductor High Temperature Resistance

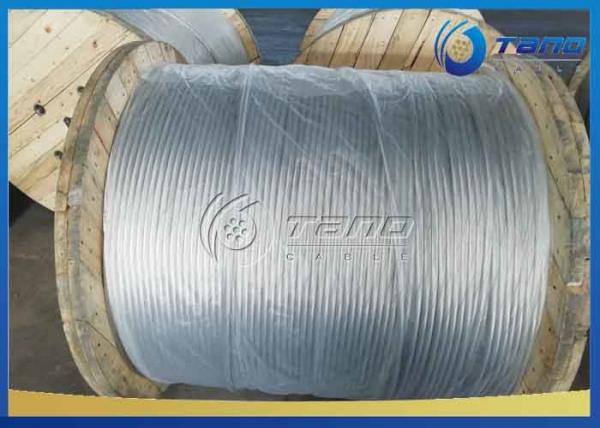

AAC Bee Mosquito All Aluminium Conductor High Temperature Resistance image
Brand Name :
Tano Cable
Model Number :
AAC
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000KM per month
Delivery Time :
5-20 working days
Packaging Details :
by coil, carton, plastic bag, all wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Description :
All aluminum conductor AAC
Conductor :
Aluminum wire
Lay Ratio :
13-16
Voltage :
MV HV
Jacket :
Bare
Standard :
EN 50182
Tano Cable EN 50182 standard AAC Bee Mosquito Aluminum conductor For Overhead
Standard of AAC Bee conductor
EN 50182
Construction of AAC Mosquito Conductor
All layers are made of hard drawn aluminum wire.
AAC conductor is composed by bare concentric-lay-stranded aluminum wires with a straight round central aluminum wire surrounded by one or more layers of helically layed aluminum wires
Technical Parameter of aluminum conductor for overhead line
| BS EN 50182 | |||||||
| Code Name | Nominal Area |
No./Nominal diameter of wires |
Approximate Overal Diameter |
Total Area | Approximate Weight |
Nominal Breaking Load |
Nominal DC Resistance at 20°C |
| mm2 | No./mm | mm | mm 2 | kg/km | KN | ohm/km | |
| Gnat | — | 7/2.21 | 6.63 | 26.9 | 73.0 | 4.8 | 1.0643 |
| Mosquito | — | 7/2.59 | 7.77 | 36.9 | 101.0 | 6.3 | 0.7749 |
| Ladybird | — | 7/2.79 | 8.37 | 42.8 | 117.0 | 7.3 | 0.6678 |
| Bluebottle | — | 7/3.66 | 10.98 | 73.6 | 201.0 | 11.8 | 0.3880 |
| Earwig | — | 7/3.78 | 11.34 | 78.6 | 215.0 | 12.6 | 0.3638 |
| Grasshopper | — | 7/3.91 | 11.73 | 84.1 | 230.0 | 13.5 | 0.3400 |
| Clegg | — | 7/4.17 | 12.51 | 95.6 | 261.0 | 15.3 | 0.2989 |
| Beetle | — | 19/2.67 | 13.35 | 106.4 | 292.0 | 18.1 | 0.2701 |
| Bee | — | 7/4.90 | 14.70 | 132 | 361.0 | 21.1 | 0.2165 |
| Caterpillar | — | 19/3.53 | 17.65 | 185.9 | 511.0 | 29.8 | 0.1546 |
| Spider | — | 19/3.99 | 19.95 | 237.6 | 653.0 | 38.0 | 0.1210 |
| Moth | — | 19/5.00 | 25.00 | 373.1 | 1025.0 | 59.7 | 0.0770 |
| Drone | — | 37/3.58 | 25.06 | 372.4 | 1027.0 | 59.6 | 0.0774 |
| Maybug | — | 37/4.09 | 28.63 | 486.1 | 1341.0 | 77.8 | 0.0593 |
| Scorpion | — | 37/4.27 | 29.89 | 529.8 | 1461.0 | 84.8 | 0.0544 |
| Cicada | — | 37/4.65 | 32.55 | 628.3 | 1733.0 | 100.5 | 0.0459 |
Features of aluminum AAC cable
AAC Conductor is widely used in power transmission lines with various voltage levels, since they thave such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical features exist.
Advantages
a. Excellent electric and mechanical characteristics.
b. Good conductivity, Resistance chemical corrosion and heat-aging,environment stress.
c. Unit volume light, Simple in structure.
d. Convenient to use, especially for laying across
Conductor Photo
We are China AAC Bee Mosquito All Aluminium Conductor High Temperature Resistance manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
