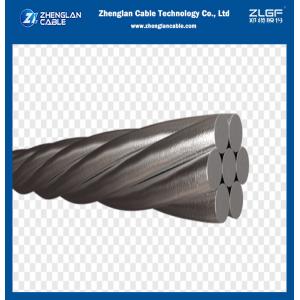

AAC Bare Aluminum Conductor AAAC Cable Overhead Transmission image

Get a Quote Email to us

AAC Bare Aluminum Conductor AAAC Cable Aluminum Overhead Transmission

STANDARD

Basic design to BS 215-1 / BS EN 50182 / IEC 61089 / ASTM B 231/B 231M / DIN 48201-5 standards

Technical data sheet BS 215-1

Code Name

Nominal

Aluminum Area

Stranding and

Wire Diameter

Sectional Area

Approximate

Overall Diameter

Linear Mass

Calculated

Breaking Load

Calculated

D.C. Resistance

at 20 ℃

Current Rating
mm 2 mm mm 2 mm kg/km daN Ω/km A
Midge 22 7/2.06 23.33 6.18 64 399 1.227 114
Aphis 25 7/3.35 26.4 7.2 73 411 1.081 134
Gnat 25 7/2.21 26.8 6.6 73 459 1.066 135
Weevil 30 3/3.66 31.6 7.9 86 486 0.9082 163
Mosquito 35 7/2.59 37 7.8 101 603 0.7762 188
Ladybird 40 7/2.79 42.8 8.4 117 687 0.6689 210
Ant 50 7/3.10 52.83 9.3 145 828 0.5419 181
Fly 60 7/3.40 63.55 10.2 174 990 0.4505 199
Bluebottle 70 7/3.66 73.7 11 202 1134 0.3881 228
Earwig 75 7/3.78 78.5 11.4 215 1194 0.3644 242
Grasshopper 80 7/3.91 84.1 11.7 230 1278 0.3406 251
Clegg 90 7/4.17 95.6 12.5 262 1453 0.2994 285
Beetle 100 19/2.67 106 13.4 293 1742 0.2704 295
Wasp 100 7/4.39 106 13.17 290 1600 0.2702 271
Bee 125 7/4.90 132 14.7 361 1994 0.2169 330
Cricket 150 7/5.36 157.9 16.1 432 2385 0.1818 395
Hornet 150 19/3.25 157.6 16.25 434 2570 0.1825 346
Caterpillar 175 19/3.53 186 17.7 512 2863 0.1547 410
Chafer 200 19/3.78 213.2 18.9 587 3240 0.1349 414
Spider 225 19/3.99 236.9 20 652 3601 0.1211 462
Cockroach 250 19/4.22 265.7 21.1 731 4040 0.1083 470
Butterfly 300 19/4.65 322.7 23.25 888 4875 0.08916 528
Drone 350 37/3.58 373.3 25.1 1029 5745 0.07741 612
Moth 350 19/5.00 373.2 25 1027 5637 0.07711 612
Centipede 400 37/3.78 415.2 26.46 1145 6310 0.06944 619
Locust 400 19/5.36 428.5 26.8 1179 6473 0.0671 656
Maybug 450 37/4.09 486.9 28.6 1342 7401 0.05931 729

Product show

Why you choose us?

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China AAC Bare Aluminum Conductor AAAC Cable Overhead Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
