AAC 7mm / 4.75mm MOON AS 1531 Standard OEM For OLEX Overhead Bare Conductor

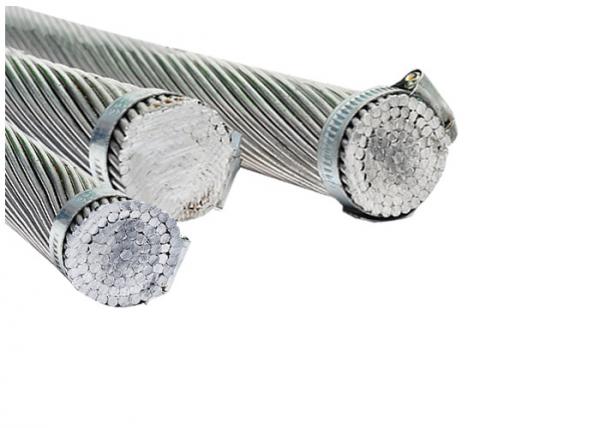

AAC 7mm / 4.75mm MOON AS 1531 Standard OEM For OLEX Overhead Bare Conductor image
Brand Name :
SHAN CABLE
Model Number :
AAC 7/4.75mm MOON
Certification :
KEMA/CE/TUV/ISO
Place of Origin :
SHANGHAI CHINA
MOQ :
500m
Price :
USD 0.08-6.32/M
Payment Terms :
L/C, T/T
Supply Ability :
862458KM/Day
Delivery Time :
7 Days
Packaging Details :
Wooden Drum
No.of Al Wire :
7/4.75mm
Standard :
AS 1531
Min Breaking Load :
18.9
D.C.Resistance :
0.232 Ω/km
Lay Direction :
Right hand
Min Tensile Stress :
160MPa
AAC 7/4.75mm MOON AS 1531 Standard OEM For OLEX Overhead Bare Conductor Which is used for Aerial Power Network
TECHNICAL SPECIFICATION AND PACKING DETAIL
(MOON)
Description: Overhead AAC conductor which is used for aerial power networks is suitable for aerial installation between poles.
Construction: The metallic conductor (AAC) is consisted of hard-drawn aluminum wires.
Standard: AS1531
AAC Cross section diagram
MOON
Properties of AAC 7/4.75mm
| ITEM | DESCRIPTION | UNIT | TECHNICAL PARTICULARS |
| 1 | Code name | – | MOON |
| 2 | Applicable Standards | – | AS1531 |
| 3 | Type of conductor | – | AAC |
| 4 |
Properties of Hard-drawn Aluminum wires |
||
| Nominal Diameter | mm | 4.75 | |
| Max. | mm | 4.798 | |
| Min. | mm | 4.703 | |
| Cross-sectional area | mm2 | 17.72 | |
| Approx. Mass | Kg/km | 47.8 | |
| Minimum ultimate tensile stress | MPa | 160 | |
| Maximum DC resistance at 20℃ | Ω/km | 1.60 | |
| 5 | Properties of Stranded conductor | ||
|
Stranding and wire diameter: Aluminum wire |
7/4.75 |
||
| Lay length of outermost layer | 178(-0,+7) | ||
| Lay direction of outermost layer | Right hand | ||
| Approx. Overall diameter | mm | 14.3 | |
| Cross-sectional area | mm2 | 124.0 | |
| Approx. mass(without grease) | Kg/km | 339 | |
| Minimum breaking load | kN | 18.9 | |
| Maximum DC resistance at 20℃ | Ω/km | 0.232 |
Some not mentioned, please see AS1531.
PACKING DETAIL
Conductors shall be wound on a non-returnable fumigated drum or metal drum. The
required marking shall be printed with a weather-proof material on the outsides of drum
according to customer’s requirement.
| Cable Type | Drum Length | Drum Dimensions & Weights | Material | |||||
| D | d | B | b | A | Net Weight | |||
| m | mm | mm | mm | mm | mm | kg | ||
|
MOON 7/4.75 |
2200 | 1250 | 600 | 720 | 630 | 95 | 746 | Fumigated wooden drum |
|
Note: 1 The value"D" don't contain the dimension of seal. 2 The approximate weight of drum(Φ1250) is 150 kilograms. |
||||||||
