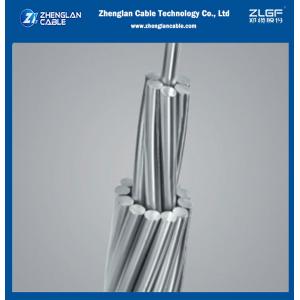

AAAC Overhead Bare Aluminum Conductor Power Cable ASTM Standard IEC61089 image

Get a Quote Email to us

Overhead Bare conductor AAAC all aluminum conductor power cable ASTM standard

APPLICATION: AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

STANDARD

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.

CONSTRUCTION of Overhead Alloy Bare Aluminum Conductor Wire AAAC 120mm2 2.8mm DIN48201

AAAC cable bvconsists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.

This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard. Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favourable when ice and wind loadings are low.

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

ELECTRICAL PROPERTIES

density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
resistivity@20°C 0.0326 Ohms mm2/m
linear Expansivity

23 x10-6 (°C)

SERVICE CONDITIONS

Ambient Temperature -5°C – 50°C
Wind Pressure 80 – 130kg/m
Seismic Acceleration 0.12 – 0.05g
Isokeraunic level 10 – 18
relative Humidity 5 – 100%

PARAMETERS

• IEC 60189

Code Number No. of Wires A2 Conductors Max. DC Resistance of Conductor at 20°C
Calculated Area Diameter of Wires Diameter of Conductor Approx. Weight Rated Strength
mm² mm² mm mm kg/km daN Ω/km
16 7 18.4 1.83 5.49 50.4 5.43 1.7896
25 7 28.8 2.29 6.87 78.7 8.49 1.1453
40 7 46 2.89 8.67 125.9 13.58 0.7158
63 7 72.5 3.63 10.8 198.3 21.39 0.4545
100 19 115 2.78 13.9 316.3 33.95 0.2877
125 19 144 3.1 15.5 395.4 42.44 0.2302
160 19 184 3.51 17.55 506.1 54.32 0.1798
200 19 230 3.93 19.65 623.7 67.91 0.1439
250 19 288 4.39 21.95 790.8 84.68 0.1151
315 37 363 3.53 24.71 998.9 106.95 0.0916
400 37 460 3.98 27.86 1268.4 135.81 0.0721
450 37 518 4.22 29.54 1426.9 152.79 0.0641
500 37 575 4.45 31.15 1585.5 169.76 0.0577
560 61 645 3.67 33.03 1778.4 190.14 0.0516
630 61 725 3.89 35.01 2000.7 213.9 0.0458
710 61 817 4.13 37.17 2254.8 241.07 0.0407
800 61 921 4.38 39.42 2540.6 271.62 0.0361
900 91 1036 3.81 41.91 2861.1 305.58 0.0321
1000 91 1151 4.01 44.11 3179 339.53 0.0289
1120 91 1289 4.25 46.75 3560.5 380.27 0 0258
AAAC conductor-DIN 48201 Part 6
Nominal Area Stranding Overall Diameter Weight Rated Strength Electrical Resistance Current Rating*
Nominal Teorical
mm^2 mm^2 No.xmm mm kg/km KN Ω/Km A
16 15.89 7/1.70 5.1 43 4.44 2.0742 78
25 24.25 7/2.10 6.3 66 6.77 1.3593 102
35 34.36 7/2.50 7.5 94 9.6 0.9591 126
50 49.48 7/3.00 9 135 13.82 0.666 158
50 48.35 19/1.80 9 133 13.5 0.6849 156
70 65.81 19/2.10 10.5 181 18.38 0.5032 189
95 93.27 19/2.50 12.5 256 26.05 0.3551 234
120 116.99 19/2.80 14 322 32.68 0.2831 269
150 147.11 37/2.25 15.8 406 41.09 0.2256 309
185 181.62 37/2.50 17.5 500 50.73 0.1828 352
240 242.54 61/2.25 20.3 670 67.74 0.1371 420
300 299.43 61/2.50 22.5 827 83.63 0.111 477
400 400.14 61/2.89 26 1104 111.76 0.0831 568
500 499.83 61/3.23 29.1 1379 139.6 0.0665 649
625* 626.2 91/2.96 32.6 1732 174.9 0.0531 742
800* 802.09 91/3.35 36.9 2218 224.02 0.0415 857
1000* 999.71 91/3.74 41.1 2767 279.22 0.0333 971
