AAAC Bare Aluminum Conductor 50mm2 For Power Transmission

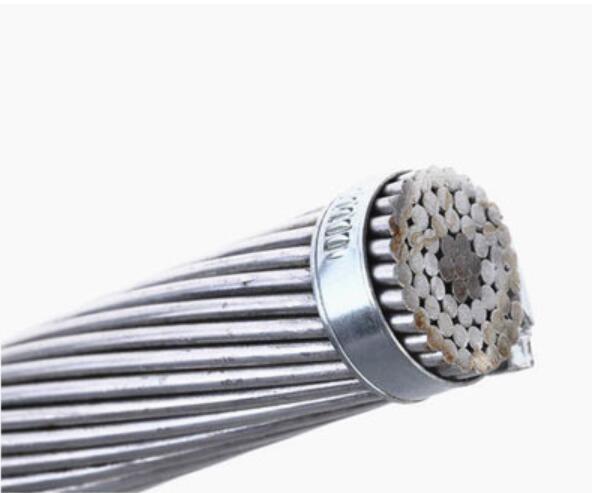

AAAC Bare Aluminum Conductor 50mm2 For Power Transmission image
Brand Name :
Suntech
Model Number :
LGJ/AAC
Certification :
ISO9001,CCC
Place of Origin :
Ningbo,China
MOQ :
2000m
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000Ton/Month
Delivery Time :
10-15 workdays
Packaging Details :
Exported Wooden Case or Containers
Name :
AAC All Aluminium Conductor
Jacket :
Non-sheathing bare
Application :
Power Transmission
Standard :
State Grid,Power Station
Material :
Aluminum
50mm2 AAC/AAAC/ACSR All Bare Conductor
What is acsr conductor ?
ACSR (Aluminium Conductor Steel Reinforced) conductor is a bimetallic conductors. The inner layers are composed by steel wires and the external layers are composed by hard-drawn aluminium AA1350-H19. The steel wires guarantee high mechanical performances.This kind of conductor is used for medium and long spans thanks to the high value of specific mechanical resistance and good transport capacity.
The steel section will change to obtain the RTS requested. The modulus of elasticity of single steel wire is three time greater than an aluminium single wire. The final modulus of elasticity is defined by the composition of ACSR conductor (number of steel wires, number of aluminium wires).The same behaviour will be found for the coefficient of linear expansion. The final value is determined by the single value of the material used and the modulus of elasticity and the section of the two components.To guarantee the protection of steel, a thin zinc coating on the wire is carried out. The zinc coating is important to prevent the galvanic corrosion.ACSR conductors has always been given high reliability thanks for the presence of steel that ensures the conductor large safety margins.
ACSR Conductors In Canadian Standard
| Code name | Total Area | Stranding and diameter | Approximate overall diameter | Linear mass | Rated tensile strength | Maximum D.C. Resistance at 20 ℃ Ω/km | Cuttent Rating | |||||
| Aluminum | Steel | Total | Aluminum | Steel | Aluminum | Steel | Total. | |||||
| mm 2 | mm 2 | mm 2 | mm | mm | mm | kg/km | kg/km | kg/km | daN | A | ||
| wren | 8.34 | 1.39 | 9.73 | 6/1.33 | 1/1.33 | 3.99 | 22.9 | 10.8 | 33.7 | 308 | 3.43035 | 63 |
| Warbler | 10.59 | 1.34 | 11.93 | 6/1.5 | 1/1.50 | 4.5 | 29 | 14 | 43 | 420 | 2.7139 | 67 |
| Turkey | 13.29 | 2.19 | 15.48 | 6/1.68 | 1/1.68 | 5.04 | 37 | 17 | 54 | 524 | 2.1586 | 78 |
| Swan | 21.16 | 3.55 | 24.71 | 6/2.12 | 1/2.12 | 6.36 | 58 | 27 | 85 | 832 | 1.3557 | 105 |
| Swante | 21.16 | 5.35 | 26.5 | 7/1.96 | 1/2.61 | 6.53 | 58 | 42 | 100 | 1053 | 1.3557 | 104 |
| Swallow | 26.69 | 4.45 | 31.14 | 6/2.38 | 1/2.38 | 7.14 | 73.3 | 34.6 | 107.9 | 1021 | 1.07124 | 126 |
| Sparrow | 33.61 | 5.61 | 39.22 | 6/2.67 | 1/2.67 | 8.01 | 92 | 44 | 136 | 1270 | 0.8535 | 139 |
| Sparate | 33.61 | 8.52 | 42.13 | 7/2.47 | 1/3.30 | 8.24 | 92 | 67 | 159 | 1611 | 0.8535 | 138 |
| Robin | 42.39 | 7.1 | 49.49 | 6/3.00 | 1/3.00 | 9 | 116 | 55 | 171 | 1585 | 0.6767 | 160 |
| Raven | 53.48 | 8.9 | 62.38 | 6/3.37 | 1/3.37 | 10.11 | 147 | 69 | 216 | 1932 | 0.5364 | 183 |
| Quail | 67.42 | 11.23 | 78.65 | 6/3.78 | 1/3.78 | 11.34 | 185 | 88 | 273 | 2362 | 0.4255 | 210 |
| Pigeon | 85.03 | 14.19 | 99.22 | 6/4.25 | 1/4.25 | 12.75 | 233 | 110 | 343 | 2941 | 0.3373 | 241 |
| Penguin | 107.23 | 17.87 | 125.1 | 6/4.77 | 1/4.77 | 14.31 | 294 | 139 | 433 | 3706 | 0.2675 | 276 |
| Waxwing | 135.16 | 7.48 | 142.64 | 18/3.09 | 1/3.09 | 15.45 | 373 | 58 | 431 | 3027 | 0.2133 | 319 |
| Partridge | 135.16 | 22 | 157.16 | 26/2.57 | 7/2.00 | 16.28 | 374 | 172 | 546 | 5029 | 0.2143 | 323 |
| Ostrich | 152 | 24.71 | 176.71 | 26/2.73 | 7/2.12 | 17.28 | 421 | 193 | 614 | 5652 | 0.1906 | 346 |
| Merlin | 170.45 | 9.48 | 179.93 | 18/3.47 | 1/3.47 | 17.35 | 470 | 74 | 544 | 3823 | 0.1691 | 364 |
| Linnet | 170.45 | 27.81 | 198.26 | 26/2.89 | 7/2.25 | 18.31 | 472 | 217 | 689 | 6271 | 0.1699 | 371 |
| Oriole | 170.45 | 39.81 | 210.26 | 30/2.69 | 7/2.69 | 18.83 | 473 | 311 | 784 | 7745 | 0.1704 | 372 |
| Chickadee | 201.42 | 11. 16 | 212.58 | 18/3.77 | 1/3.77 | 18.85 | 555 | 87 | 642 | 4399 | 0.1431 | 403 |
| Brant | 201.42 | 26.13 | 227.55 | 24/3.27 | 7/2.18 | 19.61 | 558 | 204 | 762 | 6469 | 0.1438 | 405 |
| Ibis | 201.42 | 32.77 | 234.19 | 26/3.14 | 7/2.44 | 19.88 | 558 | 256 | 814 | 7211 | 0.1438 | 403 |
| Lark | 201.42 | 46.97 | 248.39 | 30/2.92 | 7/2.92 | 20.44 | 560 | 367 | 927 | 8869 | 0.1442 | 410 |
| Pelican | 241.68 | 13.42 | 255.1 | 18/4.12 | 1/4.14 | 20.7 | 666 | 105 | 771 | 5216 | 0.1193 | 449 |
| Flicker | 241.68 | 31.29 | 272.97 | 24/3.58 | 7/2.39 | 21.49 | 670 | 245 | 915 | 7666 | 0.1199 | 454 |
| Hawk | 241.68 | 39.42 | 281.1 | 26/3.44 | 7/2.67 | 21.79 | 670 | 308 | 978 | 8665 | 0.1199 | 455 |
| Hen | 241.68 | 56.39 | 298.07 | 30/3.20 | 7/3.20 | 22.4 | 671 | 441 | 1112 | 10534 | 0.1201 | 457 |
| Osprey | 282 | 15.68 | 297.68 | 18/4.47 | 1/4.47 | 22.35 | 777 | 122 | 899 | 6088 | 0.1022 | 492 |
| Parakeet | 282 | 36.58 | 318.58 | 24/3.87 | 7/2.58 | 23.22 | 781 | 286 | 1067 | 8822 | 0.1027 | 492 |
| Dove | 282 | 45.94 | 327.94 | 26/3.72 | 7/2.89 | 23.55 | 781 | 359 | 1140 | 10103 | 0.1027 | 499 |
| Eagle | 282 | 65.81 | 347.81 | 30/3.46 | 7/3.46 | 24.21 | 783 | 515 | 1298 | 13392 | 0.103 | 500 |
| Peacock | 306.58 | 39.74 | 346.32 | 24/4.03 | 7/2.69 | 24.2 | 849 | 311 | 1160 | 9588 | 0.0945 | 522 |
| Squab | 306.58 | 49.94 | 356.52 | 26/3.87 | 7/3.01 | 24.51 | 850 | 390 | 1240 | 10841 | 0.0945 | 523 |
| Wood duck | 306.58 | 71.55 | 378.13 | 30/3.16 | 7/3.61 | 25.25 | 851 | 560 | 1411 | 12884 | 0.0947 | 523 |
| Teal | 306.58 | 69.87 | 376.45 | 30/3.61 | 19/2.16 | 25.24 | 851 | 548 | 1399 | 13359 | 0.0947 | 527 |
| Kingbird | 322.26 | 17.9 | 340.16 | 18/4.78 | 1/4.78 | 23.88 | 889 | 139 | 1028 | 6956 | 0.08945 | 530 |
| Rook | 322.26 | 41.81 | 364.07 | 24/4.14 | 7/2.76 | 24.84 | 893 | 326 | 1219 | 10083 | 0.08989 | 537 |
| Grosbeak | 322.26 | 52.45 | 374.71 | 26/3.97 | 7/3.09 | 25.15 | 893 | 409 | 1302 | 11180 | 0.08989 | 538 |
| Scoter | 322.26 | 75.22 | 394.48 | 30/3.70 | 7/3.70 | 25.88 | 895 | 589 | 1484 | 13544 | 0.09011 | 541 |
| Egret | 322.26 | 73.55 | 395.81 | 30/3.70 | 19/2.22 | 25.9 | 894 | 576 | 1470 | 14055 | 0.09011 | 542 |
| Swift | 322.26 | 8.96 | 331.22 | 36/3.38 | 1/3.38 | 23.62 | 888 | 70 | 958 | 6052 | 0.08945 | 542 |
| Flamingo | 337.74 | 43.81 | 381.55 | 24/4.23 | 7/2.82 | 25.4 | 936 | 342 | 1278 | 10566 | 0.08577 | 552 |
| Gannet | 337.74 | 55.03 | 392.77 | 26/4.07 | 7/3.16 | 25.76 | 936 | 429 | 1365 | 11733 | 0.08577 | 618 |
| Stilt | 362.58 | 46.97 | 409.55 | 24/4.39 | 7/2.92 | 26.31 | 1005 | 367 | 1372 | 11335 | 0.07989 | 577 |
| Starling | 362.58 | 59.03 | 421.61 | 26/4.21 | 7/3.28 | 26.68 | 1005 | 461 | 1466 | 12591 | 0.07989 | 578 |
| Redwing | 362.58 | 82.58 | 445.16 | 30/3.92 | 19/2.35 | 27.43 | 1006 | 647 | 1653 | 15394 | 0.08009 | 581 |
| Tern | 402.84 | 27.87 | 430.71 | 45/3.38 | 7/2.25 | 27.03 | 1116 | 217 | 1333 | 9737 | 0.07191 | 610 |
| Condor | 402.84 | 52.19 | 455.03 | 54/3.08 | 7/3.08 | 27.72 | 1116 | 408 | 1524 | 12445 | 0.07911 | 614 |
| Cuckoo | 402.84 | 52.19 | 455.03 | 24/4.62 | 7/3.08 | 27.74 | 1116 | 408 | 1522 | 12394 | 0.07191 | 614 |
| Drake | 402.84 | 65.51 | 468.45 | 26/4.44 | 7/3.45 | 28.11 | 1116 | 518 | 1628 | 13992 | 0.07191 | 614 |
| Coot | 402.84 | 11.16 | 414 | 36/3.77 | 1/3.77 | 26.41 | 1110 | 88 | 1198 | 7485 | 0.07156 | 614 |
| Mallard | 402.84 | 91.87 | 484.71 | 30/4.14 | 19/2.48 | 28.96 | 1119 | 719 | 1838 | 17118 | 0.07208 | 618 |
| Ruddy | 456.06 | 31.54 | 487.6 | 45/3.59 | 7/2.40 | 28.73 | 1263 | 247 | 1510 | 10931 | 0.06351 | 656 |
| Canary | 456.06 | 59.1 | 515.16 | 54/3.28 | 7/3.28 | 29.52 | 1263 | 461 | 1724 | 14095 | 0.06351 | 660 |
| Rail | 483.42 | 33.42 | 516.84 | 45/3.70 | 7/2.47 | 29.61 | 1339 | 262 | 1601 | 11585 | 0.05992 | 679 |
| Catbird | 483.42 | 13.42 | 496. 84 | 36/4.14 | 1/4.14 | 28.95 | 1333 | 105 | 1438 | 8766 | 0.05962 | 679 |
| Cardinal | 483.42 | 62.65 | 546. 07 | 54/3.38 | 7/3.38 | 30.42 | 1339 | 490 | 1829 | 14936 | 0.05992 | 681 |
| Ortolan | 523.68 | 36.19 | 559. 87 | 45/3.85 | 7/2.57 | 30.81 | 1451 | 283 | 1734 | 12310 | 0.05331 | 712 |
| Tanager | 523.68 | 14.51 | 538.19 | 36/4.30 | 1/4.30 | 30.12 | 1443 | 113 | 1556 | 9493 | 0.05504 | 710 |
| Curlew | 523.68 | 67.87 | 591.55 | 54/3.52 | 7/3.52 | 31.68 | 1451 | 530 | 1981 | 16180 | 0.05531 | 715 |
| Bluejay | 563.93 | 39.03 | 602.96 | 45/4.00 | 7/2.66 | 31.98 | 1563 | 385 | 1868 | 13263 | 0.05136 | 743 |
| Finch. | 563.93 | 71.55 | 635.48 | 54/3.65 | 19/2.19 | 32.85 | 1570 | 580 | 2130 | 17441 | 0.05161 | 746 |
| Bunting | 604.26 | 41.55 | 645.81 | 48/4.14 | 7/2.76 | 33.12 | 1674 | 327 | 2001 | 14179 | 0.04793 | 772 |
| Grackle | 604.26 | 76.58 | 680.84 | 54/3.77 | 19/2.27 | 33.97 | 1682 | 600 | 2282 | 18678 | 0.04817 | 773 |
| Bittern | 644.51 | 44.52 | 689.03 | 45/4.27 | 7/2.85 | 34.17 | 1785 | 349 | 2134 | 15148 | 0.04494 | 802 |
| Pheasant | 644.51 | 81.63 | 726.19 | 54/3.90 | 19/2.34 | 35.1 | 1795 | 638 | 2433 | 19400 | 0.04516 | 807 |
| Skylark | 644.51 | 17.87 | 662.38 | 36/4.78 | 1/4.78 | 33.42 | 1777 | 140 | 1917 | 11585 | 0.04472 | 810 |
| Dipper | 684.84 | 47.1 | 731.94 | 45/4.40 | 7/2.92 | 35.16 | 1898 | 368 | 2266 | 16070 | 0.0423 | 831 |
| Martin | 684.84 | 88.71 | 771.55 | 54/4.02 | 19/2.41 | 36.17 | 1906 | 679 | 2585 | 20605 | 0.0425 | 835 |
| Bobolink | 725.1 | 50.32 | 775.42 | 45/4.53 | 7/3.02 | 36.24 | 2009 | 393 | 2402 | 17071 | 0.03994 | 859 |
| Plover | 725.1 | 91.87 | 816.97 | 54/4.14 | 19/2.48 | 37.24 | 2019 | 719 | 2738 | 21824 | 0.04013 | 862 |
| Nuthatch | 765.35 | 52.9 | 818.25 | 45/4.65 | 7/3.10 | 37.2 | 2120 | 414 | 2534 | 17789 | 0.03784 | 886 |
| Parrot | 765.35 | 96.84 | 862.19 | 54/4.25 | 19/2.55 | 38.25 | 2131 | 759 | 2890 | 23020 | 0.03802 | 890 |
| Lapwing | 805.68 | 55.48 | 861.16 | 45/4.77 | 7/3.18 | 38.16 | 2232 | 435 | 2667 | 18702 | 0.03595 | 911 |
| Falcon | 805.68 | 102.1 | 907.81 | 54/4.36 | 19/2.62 | 39.26 | 2243 | 799 | 3042 | 24255 | 0.03613 | 917 |
| Chukar | 902.7 | 73.51 | 902.72 | 84/3.70 | 19/2.22 | 40.7 | 2511 | 575 | 3086 | 22685 | 0.03245 | 975 |
| BlueBird | 1092 | 88.8 | 1092.28 | 84/4.07 | 19/2.44 | 44.76 | 3036 | 697 | 3733 | 26830 | 0.02681 | 1180 |
| Kiwi | 1100 | 47.5 | 1099.2 | 72/4.41 | 7/2.94 | 44.07 | 3057 | 370 | 3427 | 22160 | 0.02684 | 1180 |
| Thrasher | 1170.8 | 65.15 | 1170.8 | 76/4.43 | 19/2.09 | 45.9 | 3256 | 511 | 3767 | 25300 | 0.02478 | 1200 |
| Grouse | 40.52 | 14.13 | 54.65 | 8/2.54 | 1/4.24 | 9.32 | 112 | 110 | 222 | 2360 | 0.7115 | 155 |
| Petrel | 51.61 | 30.06 | 81.67 | 12/2.34 | 7/2.34 | 11.71 | 143 | 235 | 378 | 4715 | 0.5613 | 187 |
| Minorca | 56.13 | 32.77 | 88.9 | 12/2.44 | 7/2.44 | 12.22 | 156 | 256 | 412 | 5125 | 0.5161 | 197 |
| Leghorn | 68.19 | 39.81 | 108 | 12/2.69 | 7/2.69 | 13.46 | 189 | 311 | 500 | 6170 | 0.4248 | 221 |
| Guinea | 80.58 | 46.97 | 127.55 | 12/2.92 | 7/2.92 | 14.63 | 223 | 367 | 590 | 7255 | 0.3595 | 244 |
| Dotterel | 89.48 | 52.19 | 141.67 | 12/3.08 | 7/3.08 | 15.42 | 248 | 409 | 657 | 7850 | 0.3237 | 260 |
| Dorking | 96.71 | 56.39 | 153.1 | 12/3.20 | 7/3.20 | 16.03 | 268 | 441 | 709 | 8480 | 0.2995 | 272 |
| Brahma | 102.97 | 91.87 | 194.84 | 16/2.86 | 19/2.48 | 18.14 | 285 | 722 | 1007 | 12880 | 0.2813 | 288 |
| Auk | 102.84 | 92.32 | 195.2 | 8/4.05 | 7/2.25 | 14.83 | 282.7 | 217.3 | 500 | 8740 | 0.2789 | 276 |
| Cochin | 107.1 | 62.45 | 169.55 | 12/3.37 | 7/3.37 | 16.84 | 297 | 488 | 765 | 9390 | 0.2705 | 287 |
What is acsr conductor features ?
Very efficient conductivity and high tensile strength
Suitable for overhead ground wires, river crossings as well as extra long span installations
Excellent weather-resistance property.
Dependable and stable performance up to 40 years.
We are China AAAC Bare Aluminum Conductor 50mm2 For Power Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 50mm2 AAC All Aluminum Conductor, Bare Aluminum Conductor, Bare Overhead Line Conductor, Power Transmission AAAC Bare ConductorSimilar Or Related
