AAAC Aluminum Conductor 70mm2 19/2.1mm En50182 IEC61089
AAAC Aluminum Conductor 70mm2 19/2.1mm En50182 IEC61089 image
AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089
Application
AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089 are mainly used for overhead lines , in transmission and distribution electrical networks, having relatively long spans. They are also used a messenger to support overhead electrical cables.
Electrical properties
Density@20ºC 2.70 kg/dm
Temperature coefficient @20°C 0.00360 (°C)
Resistivity @20°C 0.0326 Ohms mm²/m
Linear change rate of linear expansion coefficient 23 x10-6(°C)
AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089 Technical parameters
| Cross Sectional Area |
Number and Nominal Diameter of Wires |
Max. DC. resistance at 20ÜC |
Rated strength |
Approx. overall diameter |
Approx. Weight |
Current carrying capacity |
| mm2 | No x Ø (mm) | Ω/.m | KN | mm | Kg/Km | Amp |
| 35 | 7X2.5 | 0.9572 | 10.14 | 7.5 | 93.8 | 170 |
| 50 | 7×3 | 0.6647 | 14.6 | 9 | 135.1 | 210 |
| 50 | 19X1.8 | 0.6841 | 14.26 | 9 | 132.7 | 210 |
| 70 | 19X2.1 | 0.5026 | 19.41 | 10.5 | 180.7 | 255 |

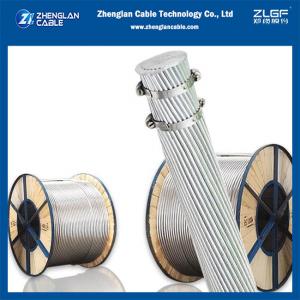

AAAC conductor 70mm2(19/2.1mm) En50182 IEC61089 Images
