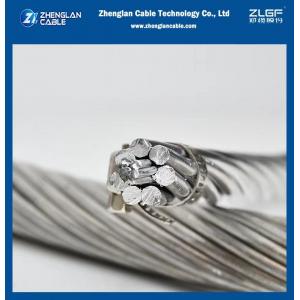

AAAC 312.8 Alloy Bare Aluminum Conductor MCM Butte Standard ASTM B 399 image

Get a Quote Email to us

All Aluminum Alloy Conductor AAAC 312.8 MCM Butte Bare conductor standard ASTM B 399

Application

All Aluminum Alloy Conductor are made out of high strength Aluminium-Magnesium-Silicon Alloy. The sag characteristics and the strength-to-weight ratio of the AAAC conductor cable is better than both AAC and ACSR. AAAC has a wide acceptance in the distribution and medium & high voltage transmission lines..

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Conductor Material: Aluminum, aluminum alloy
Jacket: none
Product name: Aluminum Alloy Conductor
Quality: 100% test
Size: AWG,mm2 or customized
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Technical parameters

Code Word Conductor size Size and stranding of ACSR equivalent Wires Wire diameter Cable diameter Mass Rated strength Nominal D.C. Ampacity
Resistance at 20 °C Sun, no wind Sun and wind No sun and wind
kcmil mm² AWG or kcmil mm mils mm in kg/km lb/kft kgf kips W/ km W/kft A*
Akron 30,58 15,5 6 7 1,68 66,1 5,04 0,198 42,5 28,6 502 1,107 2,161 0,6588 62 107 111
Alton 48,69 24,7 4 7 2,12 83,4 6,36 0,25 67,7 45,5 799 1,762 1,358 0,4138 85 143 150
Ames 77,47 39,2 2 7 2,67 105,2 8,02 0,316 107,7 72,4 1272 2,804 0,853 0,2601 119 191 201
Azusa 123,3 62,4 1/0 7 3,37 132,7 10,1 0,398 171,4 115,2 1939 4,275 0,536 0,1635 164 256 271
Anaheim 155,4 78,6 2/0 7 3,78 149 11,4 0,447 216,1 145,2 2445 5,390 0,425 0,1297 192 296 315
Amherst 195,7 99,3 3/0 7 4,25 167,2 12,7 0,502 272,1 182,8 3079 6,787 0,338 0,1030 226 342 365
Alliance 246,9 125 4/0 7 4,77 187,8 14,3 0,563 343,2 230,7 3884 8,563 0,268 0,0816 265 395 424
Butte 312,8 159 266,8 19 3,26 128,3 16,3 0,642 434,8 292,2 4767 10,508 0,211 0,0644 313 460 495
Canton 394,5 200 336,4 19 3,66 144,1 18,3 0,721 548,5 368,6 6013 13,256 0,168 0,0511 368 532 575
Cairo 465,4 236 397,5 19 3,98 156,5 19,9 0,783 647 434,8 7092 15,636 0,142 0,0433 413 590 640
Darien 559,5 284 477 19 4,36 171,6 21,8 0,858 777,9 522,8 8527 18,798 0,118 0,0360 468 663 720
Elgin 652,4 331 556,5 19 4,71 185,3 23,5 0,927 907 609,6 9943 21,920 0,101 0,0309 520 729 795
Flint 740,8 375 636 37 3,59 141,5 25,2 0,991 1030 692,2 11048 24,356 0,089 0,0272 566 790 863
Greeley 927,2 470 795 37 4,02 158,3 28,1 1,11 1289 866,3 13827 30,483 0,071 0,0217 660 908 996
1077,4 547 954 61 3,38 132,9 30,4 1,2 1498 1007 15891 35,032 0,061 0,0187 733 998 1099
1165,1 590 1033,5 61 3,51 138,2 31,6 1,24 1620 1089 17183 37,882 0,057 0,0173 771 1045 1153
1259,6 638 1113 61 3,65 143,7 32,8 1,29 1751 1177 18578 40,958 0,052 0,0160 812 1096 1211
1348,8 685 1192,5 61 3,78 148,7 34 1,34 1875 1260 19894 43,857 0,049 0,0149 850 1143 1265
1439,2 729 1272 61 3,9 153,6 35,1 1,38 2001 1345 21226 46,795 0,046 0,0140 886 1187 1315

Images

Why you choose us?

  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;

FAQ

  • Is your company a factory or a trade company? Factory, more than 20 years in China
  • How long can I expect to get the sample?—After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
  • What are your payment terms?—We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
  • What’s the delivery time?—Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
  • What is your MOQ?—Generally it is 5000m.

We are China AAAC 312.8 Alloy Bare Aluminum Conductor MCM Butte Standard ASTM B 399 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
