95mm2 Xlpe Insulated Cable SAA Certified

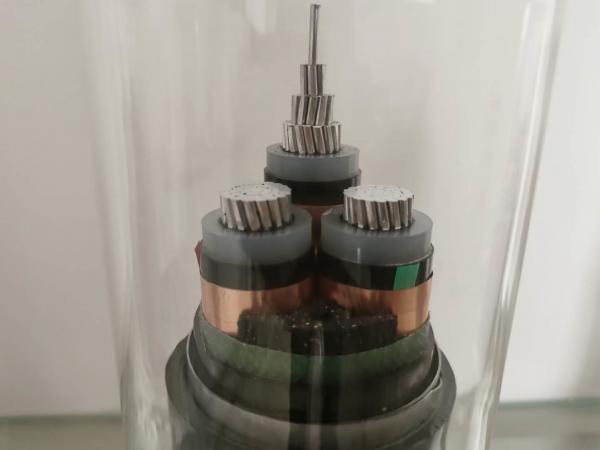

95mm2 Xlpe Insulated Cable SAA Certified image
Brand Name :
HOLD-ONE
Certification :
CE/IEC/KEMA/VDE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100km per Month
Delivery Time :
8-15 days
Packaging Details :
Iron-wooden Drum or Whole Wooden Drum
Name :
Copper Conductor Cable
Conductor Material :
Copper
standard :
IEC 60502-1
Outer Sheath :
XLPE
Color :
Customized
Type :
XLPE Underground Cable
Xlpe Insulated 95mm2 Power Cable
Product standards
XLPE power cables are manufactured to the standard AS/NZS 5000.1.
*Main cable characteristics
1. Uo/U of 0.6/1KV
2. XLPE cables are SAA certified 3. Conductor: normal annealed copper 4. Insulation and sheath: XLPE X-90 PVC 5V-90 5. Normal operating temperature: 90°C 6. Number of cores: single core/2 cores + earth core/3 cores + earth/4 cores + earth
*Application
For unenclosed, enclosed trunking, subtrunking and subcircuits in direct buried pipelines or underground pipelines in buildings and industrial plants that have not been mechanically damaged. Suitable for glanding.
| Voltage rating for XLPE Power Cable | No. x Nominal Cross Section of Conductor No. x mm2 | |||||||
| 1 core | 2 core | 3 core | 3+1 core | 4core | 3+2 core | 4+1 core | 5 core | |
| 0.6/1 kV | 1×4 mm2 | 2×4 mm2 | 3×4 mm2 | 3×4 mm2 + 1×2.5mm2 | 4×4 mm2 | 3×4 mm2 + 2×2.5mm2 | 4×4 mm2 + 1×2.5mm2 | 5×2.5 mm2 |
| 1×6 mm2 | 2×6 mm2 | 3×6 mm2 | 3×6 mm2 + 1×4 mm2 | 4×6 mm2 | 3×6 mm2 + 2×4 mm2 | 4×6 mm2 + 1×4 mm2 | 5×4 mm2 | |
| 1×10 mm2 | 2×10 mm2 | 3×10 mm2 | 3×10 mm2 + 1×6 mm2 | 4×10 mm2 | 3×10 mm2 + 2×6 mm2 | 4×10 mm2 + 1×6 mm2 | 5×6 mm2 | |
| 1×16 mm2 | 2×16 mm2 | 3x16mm2 | 3×16 mm2 + 1×10 mm2 | 4×16 mm2 | 3×16 mm2 + 2×10 mm2 | 4×16 mm2 + 1×10 mm2 | 5×10 mm2 | |
| 1x 25 mm2 | 2x 25 mm2 | 3x 25 mm2 | 3×25 mm2 + 1x16mm2 | 4×25 mm2 | 3×25 mm2 + 2x16mm2 | 4×25 mm2 + 1x16mm2 | 5×16 mm2 | |
| 1×35 mm2 | 2×35 mm2 | 3x 35 mm2 | 3×35 mm2 + 1x16mm2 | 4×35 mm2 | 3×35 mm2 + 2x16mm2 | 4×35 mm2 + 1x16mm2 | 5×25 mm2 | |
| 1×50 mm2 | 2×50 mm2 | 3x 50 mm2 | 3×50 mm2 + 1x25mm2 | 4×50 mm2 | 3×50 mm2 + 2x25mm2 | 4×50 mm2 + 1x25mm2 | 5×35 mm2 | |
| 1×70 mm2 | 2×70 mm2 | 3x 70 mm2 | 3×70 mm2 + 1x35mm2 | 4×70 mm2 | 3×70 mm2 + 2x35mm2 | 4×70 mm2 + 1x35mm2 | 5×50 mm2 | |
| 1×95 mm2 | 2×95 mm2 | 3x 95 mm2 | 3×95 mm2 + 1x50mm2 | 4×95 mm2 | 3×95 mm2 + 2x50mm2 | 4×95 mm2 + 1x50mm2 | 5×70 mm2 | |
| 1×120 mm2 | 2×120 mm2 | 3x 120 mm2 | 3x120mm2 + 1x70mm2 | 4×120 mm2 | 3x120mm2 + 2x70mm2 | 4x120mm2 + 1x70mm2 | 5×95 mm2 | |
| 1×150 mm2 | 2×150 mm2 | 3x 150 mm2 | 3x150mm2 + 1x70mm2 | 4×150 mm2 | 3x150mm2 + 2x70mm2 | 4x150mm2 + 1x70mm2 | ||
| 1×185 mm2 | 2×185 mm2 | 3x 185 mm2 | 3x185mm2 + 1x95mm2 | 4×185 mm2 | 3x185mm2 + 2x95mm2 | 4x185mm2 + 1x95mm2 | ||
| 1×240 mm2 | 3x 240 mm2 | 3x240mm2 + 1x120mm2 | 4×240 mm2 | 3x240mm2 + 2x120mm2 | 4x240mm2 + 1x120mm2 | |||
| 1×300 mm2 | 3x 300 mm2 | 3x300mm2 + 1x150mm2 | 4×300 mm2 | 3x300mm2 + 2x150mm2 | 4x300mm2 + 1x150mm2 | |||
| 1×400 mm2 | ||||||||
| 1×500 mm2 | ||||||||
Advantages of XLPE cable:
XLPE cable has a higher long-term working temperature and larger rated current, and under the same environment, the size (normal cross section) of XLPE cable may be 1 or 2 smaller than PVC cable. These not only improve the quality and performance of the product, but also reduce the production cost of the cable. Steel tape armored cables for armored cables can enhance the mechanical properties of the cables, and the cables can withstand external mechanical pressure.
Steel belt armor/steel foil armor, steel wire armor/steel wire armor/SWA. Steel tape armored cable model: VV22, VV23, VLV22, VLV23, YJ V22, YJV23, YJLV22, YJLV23, ZR-VV22, NH-VV2 2, WDZ-YJV22, WDZ-YJV23, WDZ-YJY22
