9 Meters Tubular Steel Pole For Low Voltage Overhead Electrical Networks

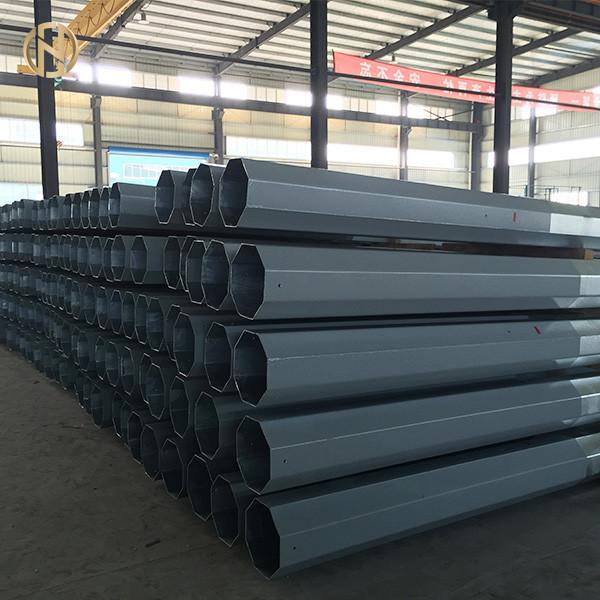

9 Meters Tubular Steel Pole For Low Voltage Overhead Electrical Networks image
Brand Name :
FUTAO
Model Number :
9m
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
$80-$400
Payment Terms :
L/C, T/T
Supply Ability :
4000 pieces every month
Delivery Time :
60 workdays
Packaging Details :
40HC or OT wrap by mat or straw mat
Height :
According to clients’ request
Thickness :
3-4.5mm
Material :
Q235, Q345
Shape :
Tubular
Color :
According to clients request
Surface Treatment :
Hot Dip Galvanized
Welding :
AWS D 1.1
Tubular Steel Poles for the support of Low Voltage Overhead electrical networks 9m
Product Description
The products above are Tubular Steel Pole 9m 4.5" steel utility pole tubular steel pole for IDECO
made specifically for power distribution for low voltage
To design in accordance with PLS software, we will require the following design parameters:
- The operational wind speed of the region where the pole will be used
- The Antenna load and height of the pole
- The total height of the pole itself
Product Specifications
| Low Voltage, 4.5" 9m length, galvanized Tubular Steel Poles. |
|
Low Voltage, 5.5" 9m length, galvanized Tubular Steel Poles. |
1. Climate Conditions:
The following is applicable unless otherwise is mentioned:
a. Maximum Ambient Temperature 50 Co
b. Minimum Ambient Temperature -10 Co
c. Design temperature 45 Co
d. Maximum daily range of air temperature 20 Co
e. Maximum Wind Pressure 420 n/m2
f. Ice Thickness 10 mm.
g. Snow Falls 1-4 days – 30 cm.
h. Site altitude 0-1400m ASL
i. Average annual rainfall 40cm during November–April
j. Relative humidity in the range 30 to 60%.
k. Average number of thunder storms 15 days / year
l. Prevailing wind winter average daily approximately 5-8 m/s, with gust up to 30 m/s.
m. Summer wind average afternoon 10-13 m/s, during morning generally light and variable, gust speed up to 30 m/s.
2. General Contract Description: Tubular steel poles being supplied under this contract shall be used by the purchaser as supports for carrying Low Voltage, Overhead electric network conductors.
3. Applicable Standards that shall be followed as minimum requirements accordance to BS EN 10255/2004 medium and astma53/ a53m-2012 for 9met , 9 met poles
4. Free from defects : Poles shall be well finished, clean and free from harmful
- Surface defects, ends of the poles shall be cut square. Poles shall be straight
- Smooth and cylindrical.
5. packing and shipment :
The packing and shipping requirements shall be fulfilled as follows:
1. Low Voltage, 4.5" 9m length tubular steel Poles shall be delivered in bundles of 6 poles with the arrangement of 2 layers, with 3 poles per layer, and strapped at four (4) locations of equal distances with the use of steel straps size 30 mm x 0.8 mm (min.) and necessary wood separators underneath the steel straps.
2. Low Voltage, 5.5" 9m length tubular steel Poles shall be delivered in bundles of 6 poles with the arrangement of 2 layers, with 3 poles per layer, and strapped at four (4) locations of equal distances with the use of steel straps size 30 mm x 0.8 mm (min.) and necessary wood separators underneath the steel straps.
- a- Low Voltage tubular Steel Poles Description(4.5 ,5.5)
The poles shall be manufactured from galvanized steel tube, at which the galvanized steel tube shall be manufactured from weldable structural steel plates according to BS EN 10255/2004 medium, that shows an analysis not more than 0.030% of sulfur and not more than 0 .035% phosphorous hot dip is required to EN ISO 1461/2009, 505 gm/m2 or micron equivalent thick on one face.
The dimensions of all galvanized steel tubes shall consider during fabrication shown in the table below:
|
Nominal Size pole |
Nominal Size (Inch) | Outside diameter (mm) | Wall thickness (mm) | Weight (kg/m) |
| 4.5 | 4 | 113.1-115 | 4.5 | 12.2 |
| 5 | 138.5-140.8 | 5 | 16.6 |
Materials Nominal Size pole 4.5:
a) Minimum grade of steel LV poles ST having a tensile strength for tubs not less than 400
n/mm2.
b) Structural steel for top cap shall be hot galvanized minimum thickness 2 mm, welded around and painted silver color.
c) Fully galvanized before fabrication and painted silver color two coats EPOXY after fabrication at all jointing and welding.
d) Fully galvanized after fabrication for poles (as an option).
e) Each pole shall be provided with circular red color marking consisting of 20 mm wide Band located at 2 m from the bottom of the pole.
f) All poles (galvanization layer) after the production shall be free of any defects during SWAGED.
g) The pole shall be bear minimum tensile strength 450 (Kgf).
| Nominal Size pole | Nominal Size (Inch) | Outside diameter (mm) | Wall thickness (mm) | Weight (kg/m) |
| 5.5 | 5 | 140- 141.3 | 4.5 | 16.6 |
| 6 | 168.3 | 5 | 18.9 |
Materials Nominal Size pole 5.5:
a) Minimum grade of steel LV poles ST having a tensile strength for tubs not less than 450 n/mm2.
b) Structural steel for top cap shall be hot galvanized minimum thickness 2 mm, welded around and painted silver color.
c) Fully galvanized before fabrication and painted silver color two coats EPOXY after fabrication at all jointing and welding.
d) Fully galvanized after fabrication for poles (as an option).
e) Each pole shall be provided with circular red color marking consisting of 20 mm wide Band located at 2 m from the bottom of the pole.
f) All poles (galvanization layer) after the production shall be free of any defects during SWAGED.
g) The pole shall be bear minimum tensile strength 500 (Kgf).
Materials :
a) Minimum grade of steel Low voltage poles ST having a tensile strength for tubs not less than 500 N/mm2.
b) Structural steel for top and bottom cap shall be hot galvanized minimum thickness 2 mm, welded around and painted silver color.
c) Fully galvanized before fabrication and painted silver color two coats EPOXY after fabrication at all jointing and welding.
d) Fully galvanized after fabrication for poles (as an option).
e) All poles (galvanization layer) after the production shall be free of any defects during SWAGED.
f) Braking load (673) kgf
- Minimum grade of steel Low voltage poles ST having a tensile strength for tubs not less than 500 N/mm2.
- Structural steel for top and bottom cap shall be hot galvanized minimum thickness 2 mm, welded around and painted silver color.
- Fully galvanized before fabrication and painted silver color two coats EPOXY after fabrication at all jointing and welding.
- Fully galvanized after fabrication for poles (as an option)
- All poles (galvanization layer) after the production shall be free of any defects during SWAGED.
- Braking load (758) kgf
Packaging & Shipping

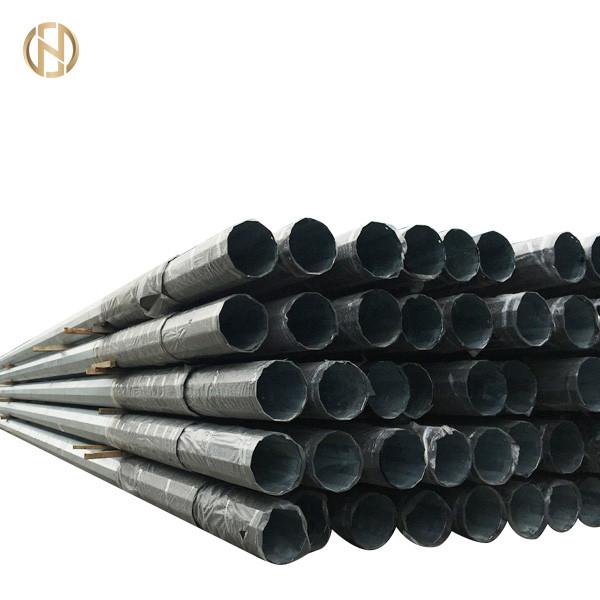

We cover the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation. Packaging can also be done according to clients’ requirements.
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration→ Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
FAQ
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. 2. You can send us a detail and assembly drawing; we can then provide you with an accurate quotation based on the drawing. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
We are China 9 Meters Tubular Steel Pole For Low Voltage Overhead Electrical Networks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
