800mm2 1000mm2 Black 5 Core Low Voltage Power Cable

 China 800mm2 1000mm2 Black 5 Core Low Voltage Power Cable supplier

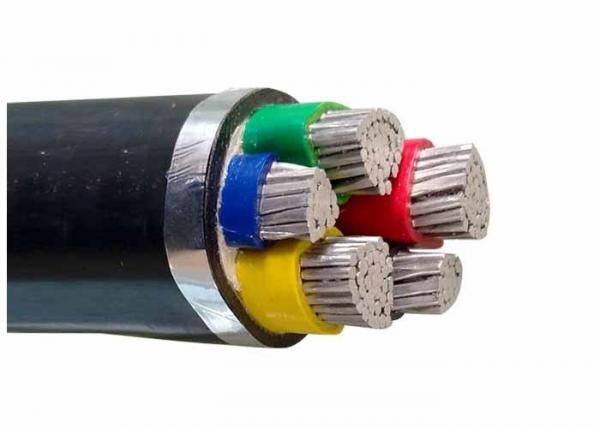

800mm2 1000mm2 Black 5 Core Low Voltage Power Cable image

Get a Quote Email to us

Brand Name :
OEM

Certification :
ISO/RoHS/CE

Place of Origin :
china

MOQ :
200 meters

Payment Terms :
L/C, T/T

Supply Ability :
50000meters per week

Delivery Time :
5-15day

Packaging Details :
wooden drum

Conductor :
Copper, Aluminum

Insulation :
XLPE, PVC, PE

Armour :
DSTA, SWA, AWA

Outer Sheath :
PVC, PE, ZR-PVC

Sample :
Free Sample

Colour :
Black or As Requirement

Application :
Construction, Industrial, Underground etc.

Standard :
IEC, JIS, UL, BS, IEC, ASTM, DIN

Price :
Negotiable

800mm2 1000mm2 Black 5 Core Low Voltage Power Cable

1. Conductor
Plain, annealed copper or Aluminum conductors, solid circular stranded or sectoral stranded, conforming to the applicable requirements of IEC 60228.

2. Insulation
PVC, PE or XLPE thermosetting material, conforming to the applicable requirements of IEC 60502-1.

3. Assembly
Insulated conductors are laid up, filled where necessary with non-hygroscopic material and covered with an extruded thickness of thermoplastic material.

4. Armour
Galvanized round wires (SWA or AWA), or two layers of steel tape (DSTA), complying to the applicable requirements of IEC 60502-1.

5. Sheath
PVC or PE based thermoplastic material, conforming to the applicable requirements of IEC 60502-1.

6. Test
Conforming to the applicable requirements of IEC 60502-1 either on Raw materials or on finished products.

LOW VOLTAGE ELECTRICAL CABLE APPLICATION

Low voltage electrical cables cover PVC, XLPE and PE insulated armoured cables rated at 0.6/1kv to international Electrotechnical Commission Publication IEC 60502-1 for use indoors, outdoors, in cable ducts, for direct burial underground, where severe mechanical stresses are present. These cables have high dielectric strength, an excellent resistance to deformations under high temperature and pressure, and high resistance to ageing, abrasion, moisture etc.

LOW VOLTAGE ELECTRICAL CABLE NORMINAL AREA

0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10m2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2, 1000mm2

LOW VOLTAGE ELECTRICAL CABLE CORES

1 core, 2 core, 3 core, 4 core, 5 core, 2+1 core, 3+1 core, 3+2 core, 4+1 core

XLPE INSULATED LOW VOLTAGE CABLE FEATURES

1. The maximum conductor operating temperature: 90°C
During short circuit (lasting less than 5 seconds) the maximum temperature of the cable conductor shall not be above 250°C
Environment temperature should be no lower than 0°C for laying the cable.

2. Bending Radius of the Cable:
Single Core Cable: Non Armoured Cable 20D, Armoured Cable 15D
Cores Cable: Non Armoured Cable 15D, Armoured Cable 12D.
Remarks: D means practical external diameter of the cable

LOW VOLTAGE ELECTRICAL CABLE TYPES

TYPE DESCRIPTION MAIN APPLICATION
CU core AL core
YJV/YJY YJLV/YJLY (Flame retardant) Cu, Al core XLPE insulated,PVC/PE sheathed power cable For laying indoor ,tunnel,canal and underground.Unable to bear external mechanical forces,but bear the traction force during laid
YJV22/YJV23 YJLV22/YJLV23 (Flame retardant) Cu, Al core XLPE insulated,steel tape armored,PVC/PE sheathed power cable For laying indoor ,tunnel,canal and underground.Able to bear external mechanical forces,but unable to bear large pulling force
YJV32/YJV33 YJLV32/YJLV33 (Flame retardant) Cu, Al core XLPE insulated,thin steel wire armored,PVC/PE sheathed power cable For laying in shaft,water underground will large difference of level.Able to bear external mechanical forces and moderate pulling force
YJV42/YJV43 YJLV42/YJLV43 (Flame retardant) Cu, Al core XLPE insulated,thick steel wire armored,PVC/PE sheathed power cable For laying in water and seabed.Able to bear positive pressure and pulling for

We are China 800mm2 1000mm2 Black 5 Core Low Voltage Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
