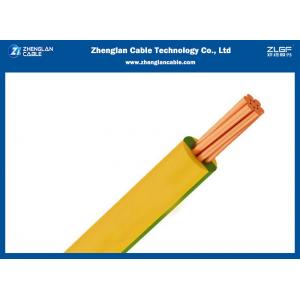

750V LSOH Flame Retardant Building Wire And Cable Single Core H07Z1-R 4sqmm Yellow

750V LSOH Flame Retardant Building Wire And Cable Single Core H07Z1-R 4sqmm Yellow image

Get a Quote Email to us

Brand Name :
Zhenglan cable

Model Number :
WDZ-BY

Certification :
3C，ISO 9001:2015，ISO 14001:2005

Place of Origin :
Henan, China

MOQ :
5000 meters

Payment Terms :
L/C, T/T,

Supply Ability :
70000m/day

Delivery Time :
15-30 days

Packaging Details :
100m in coil or as customized

Conductor Material :
99.99% oxygen-free Copper

Application :
used in House or Building

Shelf Life :
30 years

Sheathed :
Polyolefin-based thermoplastic compound

Type :
Insulated

Rate voltage :
450/750V

750V LSOH Flame Retardant Building Wire And Cable Single Core H07Z1-R 4sqmm Yellow

Zhenglan Cable Technology Co., Ltd (www(.)zhenglancable(.)com), is CE and ISO approved China cable and wire manufacturer with about 20 years' experience located in Zhengzhou, Henan province, middle of China.
Our main products are
overhead power transmission use bare conductor(ACSR, AAC, ACAR, AAAC etc)
1kv, 10kv, 35kv overhead power transmission use insulated conductor(single core covered cable, ABC cable)
STA/SWA armored or unarmored PVC/XLPE/PE insulated LV(low voltage) power cable
STA/SWA armored or unarmored XLPE insulated MV(medium voltage)power cable
450/750V instrument use control cable (shielded or unshielded)
300/300V, 300/500V, 450/750V fixed installation use building wire

450 / 750V LSOH flame retardant wire 1.5-300sqmm H07Z1-R cable IEC standard

Place of Origin:Henan, China (Mainland)
Brand Name: ZHENGLAN
Model Number: WDZ-BY
Type: Insulated
Application: fix installation use
Shelf Life: 30 years
Color: Red/Yellow/Blue/Green/Black…
Conductor Material: 99.99% oxygen-free Copper
Conductor Type: stranded catagory 2
Insulation Material: Polyolefin-based thermoplastic compound
Packaging Details: 100m in coil or other as customized
Reference standard: 60227 IEC (International); IEC 60228;

450 / 750V LSOH flame retardant wire 1.5-300sqmm H07Z1-R cable Conductor
conductor are stranded, high conductivity plain annealed copper wires meeting the requirements of the class in IEC 228

450 / 750V LSOH flame retardant wire 1.5-300sqmm H07Z1-R cable Cable Insulation
Halogen free and fire retardant insulation sheath with operation temperature 80℃

450 / 750V LSOH flame retardant wire 1.5-300sqmm H07Z1-R cable IEC standard reference Data sheet

B– stands for Stranded copper, class 2

Core number/sectional area(mm²)	Core no./diameter(mm)	Outer diameter(mm)	Weight (kg/km)		20℃conductor resistance(Ω/km)
Core number/sectional area(mm²)	Core no./diameter(mm)	Outer diameter(mm)	Cu	Al	Cu	Al

1×1.5(B)	7/0.52	3.3	21.6		12.1

1×2.5(B)	7/0.68	4.0	34.8		7.41

1×4(B)	7/0.85	4.6	50.3

1×6(B)	7/1.04	5.2	53.7		3.08
1×10	7/1.35	6.4	119	62	1.83	3.08
1×16	7/1.70	7.8	179	78	1.15	1.91
1×25	27/2.04	9.7	281	118	0.727	1.20
1×35	27/2.52	10.9	381	156	0.524	0.866
1×50	19/1.78	12.8	521	215	0.387	0.641
1×70	19/2.14	14.4	734	282	0.268	0.443
1×95	19/2.52	17.1	962	385	0.193	0.320
1×120	37/2.03	18.8	1180	431	0.153	0.253
1×150	37/2.25	20.9	1470	539	0.124	0.208
1×185	37/2.52	23.3	1810	666	0.0991	0.164
1×240	61/2.25	26.6	2350	857	0.0754	0.125
1×300	61/2.52	29.6	2930	1070	0.0601	0.100
1×400	61/2.85	33.2	3870	1390	0.0470	0.0778

Products and factory images

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.

We are China 750V LSOH Flame Retardant Building Wire And Cable Single Core H07Z1-R 4sqmm Yellow manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
