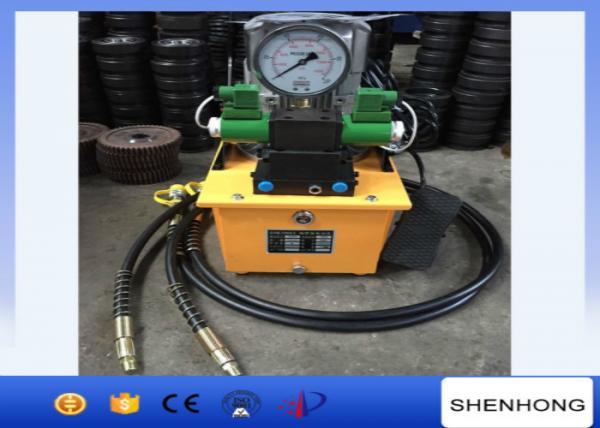

70Mpa Electric Hydraulic Power Pack 0.6L / Min Max Flow 700Bar Rated Pressure
70Mpa Electric Hydraulic Power Pack 0.6L / Min Max Flow 700Bar Rated Pressure image
Brand Name :
SHENHONG
Model Number :
ZCB-700B-2
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
2sets
Price :
negotiation
Payment Terms :
L/C, T/T
Supply Ability :
1000sets per month
Delivery Time :
7 days after payment
Packaging Details :
Standard export wooden case
Type :
Electric Hydraulic pump
Oil Tank :
7L
Feature :
Double Speed
Rated Pressure :
700bar
Weight :
28kg
Action :
Double action
70Mpa Electric Hydraulic Power Pack 0.6L / Min Max Flow 700Bar Rated Pressure
Description:
Double-speed designed, infinitely variable pressure adjustment between 0-700 bar. Double-acting electric hydraulic pump with manual valve MP series 70Mpa electric pump,hydraulic pump.
Parameter:
| Model | BS-DCS2A6 | BS-DCD1A6 | BS-SD1A6 | BS-SV2A6 |
| Working pressure | 63mpa | 63mpa | 63mpa | 63mpa |
| Max flow | 0.6L/Min | 0.6L/Min | 0.6L/Min | 0.6L/Min |
| Input voltage | 380/220V | 380/220V | 380/220V | 380/220V |
| Motor power | 0.75kw | 0.75kw | 0.75kw | 0.75kw |
| Oil capacity | 8L | 8L | 8L | 8L |
| Weight | 25kg | 25kg | 24kg | 26kg |
| Size | 37*29*49cm | 37*29*49cm | 37*29*49cm | 37*29*49cm |
| Material | Copper motor | Copper motor | Copper motor | Copper motor |
| Control Valve | Manual control | Manual control | Manual control | Solenoid valve |
| Oil pipe | Single loop | Double loop | Double loop | Double loop |
Suzhou Shenhong Import&Export Company is trading company and manufacturer for Power Transmission Line Stringing Equipments & Construction Tools in China. Suzhou Shenhong is an experienced manufacture and trader of Power & Telecom Line Stringing Equipments and tools, and have engaged in this line for more than 10 years. The products comprise of hydraulic pullers, hydraulic tensioners, Motorised winches, stringing blocks,anti-twisting braided steel wire ropes, tackle blocks, come along clamps, cable pulling grips, swivels, connectors, hoists, gin poles, conductor cutters, pump-presses, insulator lifter, cable rollers etc.
We have professional technical team to meet your new items developing.
We will be your eyes while producing, which means we will send producing picture for every steps.
We have professional technical team to meet your new items developing.
We will be your eyes while producing, which means we will send producing picture for every steps.
We are China 70Mpa Electric Hydraulic Power Pack 0.6L / Min Max Flow 700Bar Rated Pressure manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
