70mm2 95mm2 5 Core PVC Insulated Cables For Transmission

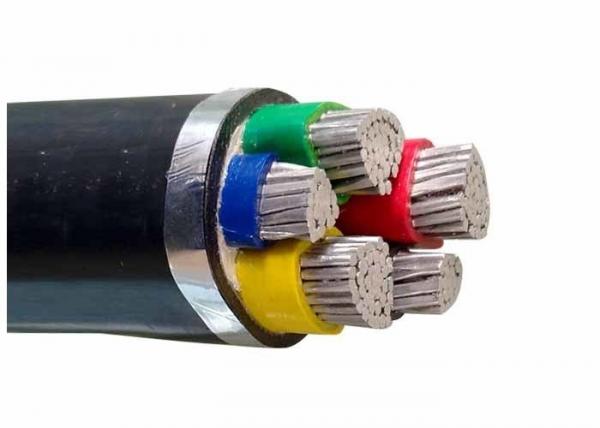

70mm2 95mm2 5 Core PVC Insulated Cables For Transmission image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Price :
Negotiable
Conductor :
Annealed Copper or Hard Drawn Aluminum
Insulation :
Polyvinyl Chloride (PVC) Insulated
Outer Sheath :
Polyvinyl Chloride (PVC) Sheathed
Armoured Layer :
DSTA/SWA/AWA Armoured or Unarmoured
Rated Voltage :
0.6/1KV
Cross Section Size :
0.75mm2-1000mm2
Standards :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Outer Sheath Colour :
Black or Customized
Application :
Construction, Industrial, Underground, Power Station
Feature :
Abrasion-resistant
70mm2 95mm2 5 Core PVC Insulated Cables For Transmission
PVC Insulated Cable Rated Voltage:
0.6/1kv
Cross Section Area of Conductor:
0.75mm2, 1mm2, 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm, 400mm2, 500mm, 630mm2, 800mm2, 1000mm2
Number of cores of PVC Insulated Cable:
1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core
PVC Insulated Cable Application:
PVC insulated cables are used for power distribution and transmission, building, appliance, flexible cord and machine tool. Insulation and jacket are made from PVC which have a number of desirable properties inculding flexibility, resistance to temperature, resistance to adverse environmental situations and low cost.
PVC Insulated Cable Usage Characreristics:
1) The long-term working tempeture of cable: not higher than 70 degree.
2) The tempeture: not exceed 160 degree in short-circuit (Max. 5s).
3) The installation the ambient tempeture: not be lower than o degree, and bending radius: not less than 10 times of outer diameter.
PVC Insulated Cable Types:
| PVC Insulated Cable Types | Description | Cores | Nomi Section Area |
| Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, electric cable |
1 core
2 core 3 core 4 core 5 core 3+1 core 3+2 core 4+1 core |
1.5~1000mm2 |
| Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, electric cable |
||
| Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | 4~1000mm2 | |
| Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | ||
| Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| ZR-Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, flame retardant, electric cable | 1.5~1000mm2 | |
| ZR-Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | 4~1000mm2 | |
| ZR-Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
||
| ZR-Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
We are China 70mm2 95mm2 5 Core PVC Insulated Cables For Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 70mm2 PVC Insulated Cables, 95mm2 PVC Insulated Cables, 95mm2 pvc insulated power cable, PVC Insulated CablesSimilar Or Related
