7/16 Swg Galvanized Steel Strand For Guy Wire Static Wire Stay Wire

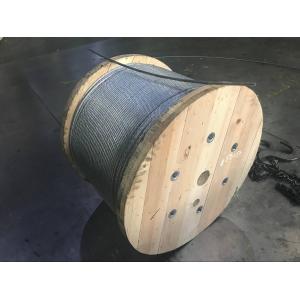

7/16 Swg Galvanized Steel Strand For Guy Wire Static Wire Stay Wire image
Description
Stay Wires are galvanized steel wire strands that are used for sustaining mechanical load. Generally they are made up of 6 wires stranded around 1 wire, twisting 7 wires together. A common use for stay wires is in the electricity industry, using the wire to stay power poles and tower structures. Stay wire is made in compliance with BS 183 or other customer specified specifications. It can be supplied in coils/ drums as per requirement.
Applicable Standards
It is designed as BS 183
Dimension Characteristics
|
Code Name
|
Section
|
Stranding
|
Overall Diameter
|
Conductor Weight
|
Breaking Load
|
|
|
mm2
|
No.
|
mm |
mm
|
kg/km
|
kN
|
|
|
Grade 1150
|
||||||
| 7/24 SWG | 1.72 | 7 | 0.56 | 1.7 | 14 | 1.98 |
| 7/22 SWG | 2.77 | 7 | 0.71 | 2.1 | 28 | 3.19 |
| 7/21 SWG | 3.97 | 7 | 0.85 | 2.6 | 31 | 4.57 |
| 7/20 SWG | 4.45 | 7 | 0.90 | 2.7 | 35 | 5.12 |
| 7/19 SWG | 5.50 | 7 | 1.00 | 3.0 | 43 | 6.32 |
| 7/18 SWG | 8.59 | 7 | 1.25 | 3.8 | 67 | 9.88 |
| 7/17 SWG | 10.78 | 7 | 1.40 | 4.2 | 84 | 12.35 |
| 7/16 SWG | 14.07 | 7 | 1.60 | 4.8 | 110 | 16.20 |
| 7/15 SWG | 17.81 | 7 | 1.80 | 5.4 | 140 | 20.50 |
| 7/14 SWG | 21.99 | 7 | 2.00 | 6.0 | 170 | 25.30 |
| 7/13 SWG | 30.62 | 7 | 2.36 | 7.1 | 240 | 35.20 |
| 7/12 SWG | 38.61 | 7 | 2.65 | 8.0 | 300 | 44.40 |
| 7/11 SWG | 49.48 | 7 | 3.00 | 9.0 | 392 | 56.90 |
| 54.55 | 7 | 3.15 | 9.5 | 430 | 62.75 | |
| 7/10 SWG | 58.07 | 7 | 3.25 | 9.8 | 460 | 66.80 |
| 7/9 SWG | 73.24 | 7 | 3.65 | 11.0 | 570 | 84.20 |
| 7/8 SWG | 87.96 | 7 | 4.00 | 12.0 | 690 | 101.00 |
| 7/7 SWG | 99.30 | 7 | 4.25 | 12.8 | 780 | 114.00 |
| 7/6 SWG | 124.04 | 7 | 4.75 | 14.0 | 970 | 142.70 |
| 19/19 SWG | 14.92 | 19 | 1.00 | 5.0 | 120 | 17.16 |
| 19/18 SWG | 23.32 | 19 | 1.25 | 6.3 | 180 | 26.81 |
| 19/17 SWG | 29.25 | 19 | 1.40 | 7.0 | 230 | 33.64 |
| 19/16 SWG | 38.20 | 19 | 1.60 | 8.0 | 300 | 43.93 |
| 19/14 SWG | 59.69 | 19 | 2.00 | 10.0 | 470 | 68.64 |
| 93.27 | 19 | 2.50 | 12.5 | 730 | 107.30 | |
| 9/11 SWG | 134.30 | 19 | 3.00 | 15.0 | 1050 | 154.50 |
| 188.06 | 19 | 3.55 | 17.8 | 1470 | 216.30 | |
| 19/8 SWG | 238.76 | 19 | 4.00 | 20.0 | 1870 | 274.60 |
| 336.69 | 19 | 4.75 | 23.8 | 2630 | 387.20 | |
We are China 7/16 Swg Galvanized Steel Strand For Guy Wire Static Wire Stay Wire manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
