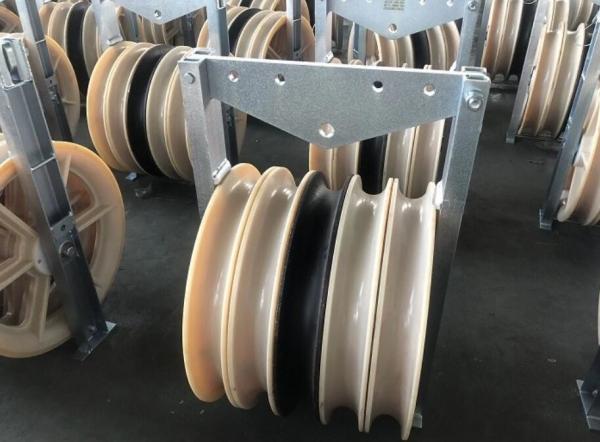

660mm Sheaves Pilot Wire Rope Pulley Block
660mm Sheaves Pilot Wire Rope Pulley Block image
Brand Name :
Suntech
Model Number :
660
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Get newest price
Payment Terms :
L/C , T/T, Western Union
Supply Ability :
5000 pcs per month
Delivery Time :
7 days after Payment
Packaging Details :
Exported cases and containers
Model :
660mm
Sheaves :
1,3,5,7,9
Material :
MC Nylon Sheave and Steel Support
Application :
Telecom Site Construction
Terms :
FOB,CIF,CFR
Usage :
Construction Works
660mm Nylon Wheel Used To Large Diameter Bundled Conductor Stringing Block Pulley
660MM Overhead Transmission Line Conductor Stringing Blocks
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10121 | SHD660 | 400-500 | 20 | 30 | Aluminum alloy |
| 10124 | SHDN660 | 400-500 | 20 | 24 | MC Nylon |
| 10122 | SHS660 | 400-500 | 40 | 106 | Central steel or Nylon sheave, Side sheave Aluminum lined with neoprene |
| 10125 | SHSLN660 | 400-500 | 40 | 92 | |
| 10127 | SHSQN660 | 400-500 | 40 | 76 | MC Nylon |
| 10123 | SHW660 | 400-500 | 60 | 150 | Aluminum Alloy lined with neoprene |
| 10126 | SHWLN660 | 400-500 | 60 | 120 | |
| 10128 | SHWQN660 | 400-500 | 60 | 110 | MC Nylon |
| 10129 | SHQZ660 | 400-500 | 80 | 260 | Central steel, conductor sheave nylon or aluminum alloy |
| 10130 | SHQ660A | 400-500 | 80 | 190 |
Single sheave Nylon Stringing Block
| Item No. | Model | ACSR Size Range (mm²) | Working Load (KN) | Weight (kg) | Material of Sheave |
| 10191 | SHDN-120×30 | 25-70 | 5 | 1.5 | Nylon |
| 10192 | SHDN-160×40 | 70-95 | 10 | 2.4 | |
| 10193 | SHDN-200×40 | 95-120 | 15 | 2.6 | |
| 10194 | SHDN-200×60 | 120-150 | 15 | 3.1 | |
| 10195 | SHDN-250×40 | 120-150 | 20 | 3.7 | |
| 10196 | SHDN-250×60 | 150-180 | 20 | 3.9 | |
| 10197 | SHDN-270×60 | 180-240 | 20 | 4.4 | |
| 10198 | SHDN-320×60 | 240-300 | 20 | 7.5 | |
| 10199 | SHDN-400×80 | 300-400 | 20 | 8 | |
| 10104 | SHDN508 | 300-400 | 20 | 16 | Nylon, optional can be lined with neoprene |
| 10124 | SHDN660 | 400-500 | 20 | 24 | |
| 10131 | SHDN750 | 500-600 | 30 | 32 | |
| 10141 | SHDN822 | 600-700 | 30 | 38 | |
| 10151 | SHDN916 | 700-800 | 50 | 51 | |
| 10165 | SHDN1040 | 800-900 | 50 | 60 |
Application: It is suitable to string stranded aluminum and ACSR conductors on tangent structures. Compression sleeves, swivel connectors, and pulling rope connectors can pass through the groove.
We are China 660mm Sheaves Pilot Wire Rope Pulley Block manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

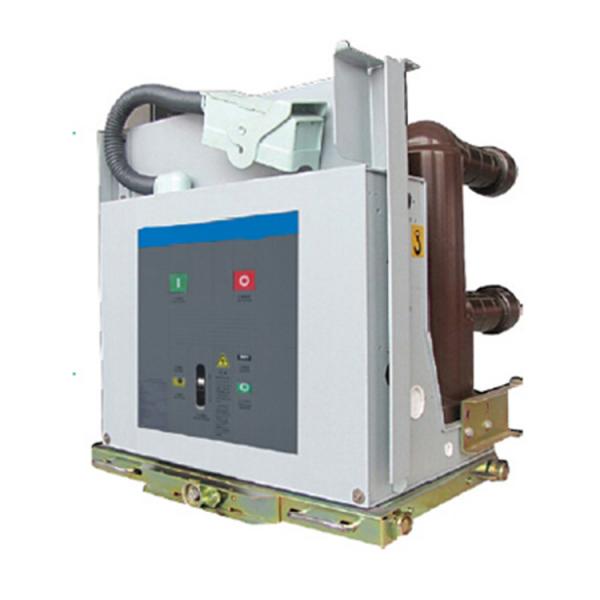

Tags: 12KV AC Circuit Breaker, conductor stringing blocks, Indoor Embedded AC Circuit Breaker, Indoor Embedded Vacuum Circuit BreakerSimilar Or Related
