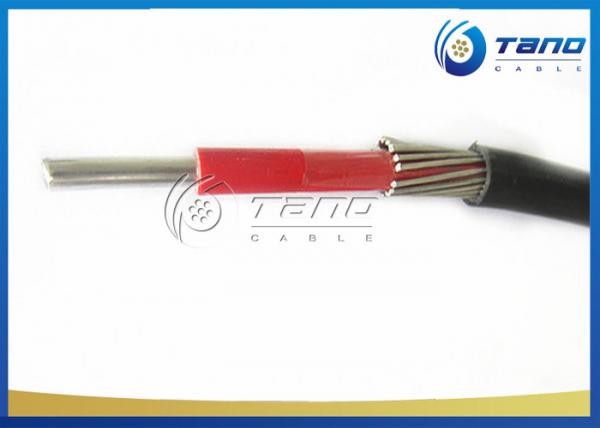

600 / 1000V Voltage Concentric Cable Electric Service Entrance PVC / PE Jacket
600 / 1000V Voltage Concentric Cable Electric Service Entrance PVC / PE Jacket image
Brand Name :
TANO CABLE
Model Number :
Concentric Cable
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1000M
Price :
negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM per Month
Delivery Time :
7-30days
Packaging Details :
by wooden drums, rolls
Conductor :
AL or CU
Insulation :
XLPE / PVC / PE
Jacket :
PVC / PE
Voltage :
600 / 1000v
name :
Concentric Cable
model :
Concentric Cable
600 / 1000V Concentric Cable XLPE / PVC 2 X 16mm2 Copper / Aluminum Conductor
APPLICATION
The concentric cables are used as electric service entrance from the power distribution network until the meter panel (especially where it is required to prevent "black" losses or electric power robbery). Popular in African market.
CABLE TYPE & TECHNICAL SPECIFICATION
Type 1: ASTM Standard Circular Type Concentric Cables
1. Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
2. Insulation: XLPE
3. Neutral Conductor: Copper wire, Aluminum Wire, Aluminum Alloy Wire S8000, Copper Clad Aluminum(CCA)
4. Binder Tape: Polyester Tape or Semi-conducting Tape
5. Outer Sheath: XLPE
Technical Particulars
| Size | Phase Conductor | XLPE Insulation | Neutral Conductor | XLPE Sheath | Approx.Weight | ||||||
| Structure | O.D | Thickness | O.D | Structure | O.D | Thickness | O.D | CU | AL | CCA | |
| AWG | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km | kg/km | kg/km |
| 2×8 | 7/1.23 | 3.69 | 1.14 | 5.97 | 25/0.65 | 7.27 | 1.14 | 9.84 | 202 | 97 | 101 |
| 2×10 | 7/0.98 | 2.94 | 1.14 | 5.22 | 25/0.52 | 6.26 | 1.14 | 8.83 | 141 | 74 | 77 |
Packing
Inspection before delivery
These products are popular in African market. With rich manufacturing experience, we would like to provide you them very much. Any demand can feel free to contact us. Welcome to visit our factory ay anytime.
We are China 600 / 1000V Voltage Concentric Cable Electric Service Entrance PVC / PE Jacket manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
