6 To 35kv MV Power Cable Copper Conductor Three Core XLPE Insulation Armored Electrical Cable
6 To 35kv MV Power Cable Copper Conductor Three Core XLPE Insulation Armored Electrical Cable image
6 To 35kv MV Power Cable Copper Conductor Three Core XLPE Insulation Armored Electrical Cable
Parameter:
| Normal cross sectional area(mm²) | Appro conductor dia(mm) | Nom insulation thickness(mm) | Copper tape thickness(mm) | Copper wire screen area(mm²) | Appro. Insulation dia(mm) | Nom sheath thickness(mm) | Appro overall diameter(mm) | Appro weight(kg/km) | |
| CU | AL | ||||||||
| 3Cx50 | 8.25 | 8.0 | 0.1 | 16 | 25.9 | 2.0 | 68 | 5800 | 4900 |
| 3Cx70 | 9.90 | 8.0 | 0.1 | 16 | 27.5 | 2.0 | 71 | 6800 | 5500 |
| 3Cx95 | 11.7 | 8.0 | 0.1 | 16 | 29.3 | 2.1 | 75 | 8000 | 6100 |
| 3Cx120 | 13.1 | 8.0 | 0.1 | 16 | 30.7 | 2.1 | 79 | 9000 | 6700 |
| 3Cx150 | 14.3 | 8.0 | 0.1 | 16 | 31.9 | 2.2 | 81 | 10100 | 7300 |
| 3Cx185 | 16.3 | 8.0 | 0.1 | 25 | 33.9 | 2.2 | 86 | 11800 | 8300 |
| 3Cx240 | 18.7 | 8.0 | 0.1 | 25 | 36.3 | 2.3 | 91 | 14000 | 9400 |
| 3Cx300 | 20.9 | 8.0 | 0.1 | 25 | 38.5 | 2.4 | 97 | 16500 | 10700 |
| 3Cx400 | 23.7 | 8.0 | 0.1 | 35 | 41.3 | 2.5 | 103 | 19700 | 12300 |

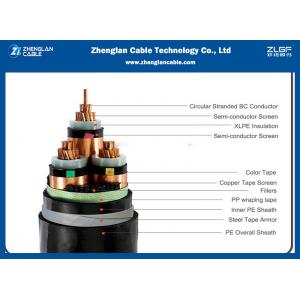

6 To 35kv MV Power Cable Copper Conductor Three Core XLPE Insulation Armored Electrical Cable picture:
6 To 35kv MV Power Cable Copper Conductor Three Core XLPE Insulation Armored Electrical Cable test equipment:
Why Choose Zhenglan Cable:
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
