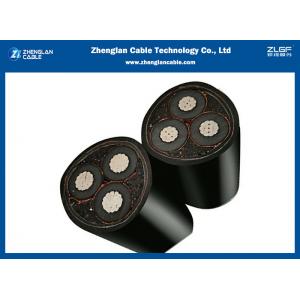

6.35/11kv tripolar steel tape armored aluminum cable 3x70mm2 IEC60502-2 armoured power cable APPLICATIONS:

6.35/11kv tripolar steel tape armored aluminum cable 3x70mm2 IEC60502-2 armoured power cable are designed for distribution of electrical power with nominal voltage Uo/U ranging from 6.35/11(12)KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

STANDARD:

IEC 60502 Part 2(3.6/6KV to 18/30KV)

Cable Construction

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.

Conductors

Either aluminium or copper conductors are used. Conductors will be circular, compacted & stranded and shall comply with IEC 60228 class 2.

Conductor Screen

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field. By careful material selection and special attention to process parameters, we produce the insulation screen layers with the required degree of stripping force as stipulated by the applicable national or international standard.

Insulation

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE. our

medium voltage cables are normally supplied with red PVC over sheaths complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.

Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths according to BS 7211 and BS 6724 standards or other equivalent international standards.

6.35/11kv tripolar steel tape armored aluminum cable 3x70mm2 IEC60502-2 armoured power cable technical parameters

Three core 6.35/11kv without armor

Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 3.4 0.1 16 14.3 1.6 41 2400 1900
35 7.10 3.4 0.1 16 15.3 1.6 43 2800 2200
50 8.25 3.4 0.1 16 16.5 1.7 46 3400 2500
70 9.90 3.4 0.1 16 18.1 1.7 50 4200 2900
95 11.7 3.4 0.1 16 19.9 1.8 54 5300 3400
120 13.3 3.4 0.1 16 21.3 1.8 57 6200 3900
150 14.3 3.4 0.1 25 22.5 1.9 60 7200 4400
185 16.3 3.4 0.1 25 24.5 1.9 64 8600 5100
240 18.7 3.4 0.1 25 26.9 2.0 70 10700 6100
300 20.9 3.4 0.1 25 29.1 2.1 75 12900 7100
400 23.7 3.4 0.1 25 31.9 2.2 81 15900 8500
Normal cross sectional area(mm²) Appro conductor dia(mm) Nom insulation thickness(mm) Copper tape thickness(mm) Copper wire screen area(mm²) Appro. Insulation dia(mm) Nom armor thickness(mm) Nom sheath thickness(mm) Appro overall diameter(mm) Appro weight(kg/km)
CU AL
25 6.05 3.4 0.1 16 12.5 0.5 2.3 44 3200 2700
35 7.10 3.4 0.1 16 13.5 0.5 2.4 46 3700 2000
50 8.25 3.4 0.1 16 14.7 0.5 2.5 49 4300 3400
70 9.90 3.4 0.1 16 16.3 0.5 2.6 53 5200 3900
95 11.7 3.4 0.1 16 18.1 0.5 2.8 57 6400 4600
120 13.1 3.4 0.1 16 19.5 0.5 2.9 61 7400 5200
150 14.3 3.4 0.1 25 20.7 0.5 3.0 64 8500 5700
185 16.3 3.4 0.1 25 22.7 0.5 3.1 68 10000 6500
240 18.7 3.4 0.1 25 25.3 0.5 3.3 74 12300 7600
300 20.9 3.4 0.1 25 27.9 0.5 3.4 79 14600 8800
400 23.7 3.4 0.1 35 31.1 0.8 3.7 87 18700 11300
