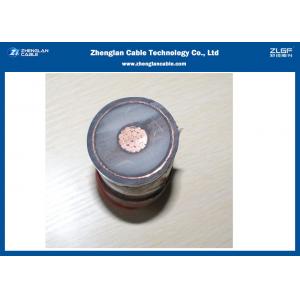

6/10KV Copper Or Aluminum XLPE 120mm² MV Cables image

Get a Quote Email to us

6/10KV Copper or Aluminum Conductor XLPE Insulated 120mm² MV Cables

APPLICATIONS:

Medium voltage power cable for static application in ground, within and outside facilities, outdoor, in cable canals, in water, in conditions where cables are not exposed to heavier mechanical stress and tensile strain. Due to its very low factor of dielectric loss, which remains constant over its entire operating lifetime, and owing to excellent insulation property of XLPE-material, firmly longitudinally spliced with conductor screen and insulation screen of semi-conductive material (extruded in one process), the cable has a high operating reliability. Used in transformer stations, electric power plants and industrial plants.

STANDARD:

IEC 60228 Conductors of insulate cables
IEC 60502-2 Power cables with extruded insulation and their accessories for rated voltages from 1 kV(Um=1.2kV) up to 30kV(Um=36kV)

Noted:Single Core Cables to BS 6622/BS 7835/IEC 60502/VDE 0276

Cable Construction

1)Conductor : Aluminium/Copper ,Class 1 or Class 2
2)Conductor screen: Non-metallic,semi-conducting compound
3)Insulation: Cross-linked polyethylene XLPE
4)Insulation screen: Non-metallic,semi-conducting compound
5
)Metallic screen: Copper tape
6)Oversheath: Polyvinyl chloride PVC

Cable Parameters:
6/10KV Medium Voltage Single Core Power Cable (Amoured)

Nom.
Cross-Section
Area
Aluminium Wire Armoured Cables
Nom. Bedding Thickness Armour Wire Size Nom. Sheath Thickness Approx. Overall Diameter kg/km
mm² mm mm mm mm
16 1.2 1.6 1.8 24 770 670
25 1.2 1.6 1.8 25 910 750
35 1.2 1.6 1.8 26 1040 820
50 1.2 1.6 1.8 28 1190 900
70 1.2 1.6 1.9 29 1470 1040
95 1.2 1.6 2 31 1780 1190
120 1.2 2 2 34 2150 1410
150 1.2 2 2.1 35 2480 1560
185 1.2 2 2.1 37 2890 1730
240 1.2 2 2.2 40 3570 2050
300 1.2 2 2.3 42 4230 2330
400 1.3 2.5 2.4 47 5320 2890
500 1.4 2.5 2.5 51 6510 3530
630 1.5 2.5 2.6 56 7960 4050

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China 6/10KV Copper Or Aluminum XLPE 120mm² MV Cables manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
