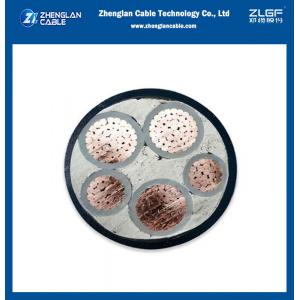

5Core CU Xlpe Copper Low Voltage Power Cables Armoured Types Of Electrical Underground image

Get a Quote Email to us

Low voltage 5Core Copper Core Armoured/Unarmoured Types of Electrical Underground Power Cables

Application:

They are used for electricity supply in low voltage installation system. They are suitable for installation in indoors and outdoors, in cable ducts, in power and switching stations, local energy distributions, industrial plants, where there is have many movings.

Construction:

Conductors: Copper/Al, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228.

No

Item
Data
1

Voltage:
0.6/1KV 1.8/3KV
2

Insulation Material:
PVC/XLPE
3

Conductor:
Copper/Aluminum
4

Conductor Type:
Solid/Stranded
5

Armoured
SWA/STA/AWA
6

Sheath:
PVC,PE,XLPE
Core colours
without yellow-green core
2-cores: brown, blue
3-cores: brown, black, grey
4-cores: brown, black, grey, blue
with yellow-green core
3-cores: brown, blue, yellow-green
4-cores: brown, black, grey, yellow-green
5-cores: brown, black, grey, yellow-green, blue

Noted: Insulation color as per standards or customer requirement.

Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228

China: GB/T 12706.2-2008

Other standards such as BS7870,DIN and ICEA upon request

Insulation:

The products are designed with XLPE Insulation material and thickness shall be as per IEC 60502-1 and BS 6346.

PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS EN 50363. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Outer Sheath:

Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths:

LV power cable with special fire resistance PVC outer sheath to comply with the flame test requirements of IEC 60331,

Low Smoke Halogen Free (LSHF) material according to IEC 60502-1, BS 7211, BS 6724 or other equivalent standards are also available

​Parameters:

Nominal

Cross

Section

Diameter of

Conductor

(Approx.)

Nominal

Insulation

Thickness

Nominal

PVC Sheath

Thickness

Overall

Diameter

(Approx.)

Weight

of Cable

(Approx.)

mm² mm mm mm mm Kg/Km
4×1.5 1.38 0.7 1.8 11 170
4×2.5 1.76 0.7 1.8 12 230
4×4 2.25 0.7 1.8 14 305
4×6 2.76 0.7 1.8 15.5 400
4×10 4.0 0.7 1.8 18 585
4×16 5.0 0.7 1.8 20 835
4×25 6.3 0.9 1.8 22 1210
4×35 7.4 0.9 1.8 24.5 1670
4×50 8.8 1.0 1.8 26.5 2250
4×70 10.6 1.1 2.0 32 3015
4×95 12.4 1.1 2.1 36.5 4085
4×120 14.0 1.2 2.3 40.5 5320
4×150 15.5 1.4 2.4 44.5 44.5 6510
4×185 17.4 1.6 2.6 51 8050
4×240 20.3 1.7 2.8 58.5 58.5 10520
4×300 22.7 1.8 3 64.5 13130
4×400 25.4 2.0 3.3 73.5 16850

Product show:

Test equipment
