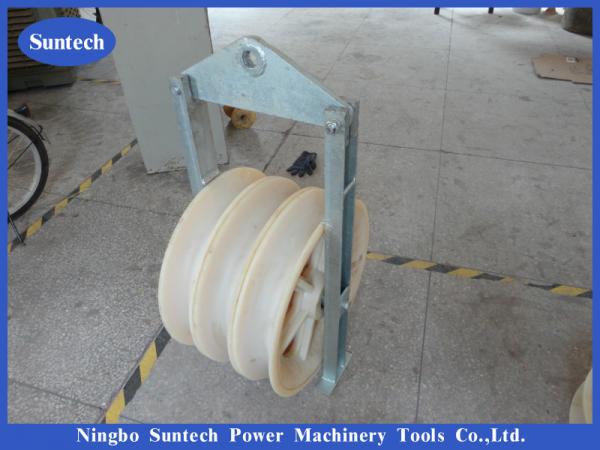

508*110mm Three Nylon Wheels Bundled Conductor Pulley
508*110mm Three Nylon Wheels Bundled Conductor Pulley image
Brand Name :
SHENHONG
Model Number :
508
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
1pc
Price :
negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
1000pcs per month
Delivery Time :
7-30 days after payment
Packaging Details :
export package
Material :
Nylon
Surface :
Garvanized
Application :
Pull Cable
Wheel Diameter :
508mm
Wheel Width :
110mm
Product :
Cable Pulley Block
508*110 Three nylon wheels diameter bundled conductor pulley for transmission line

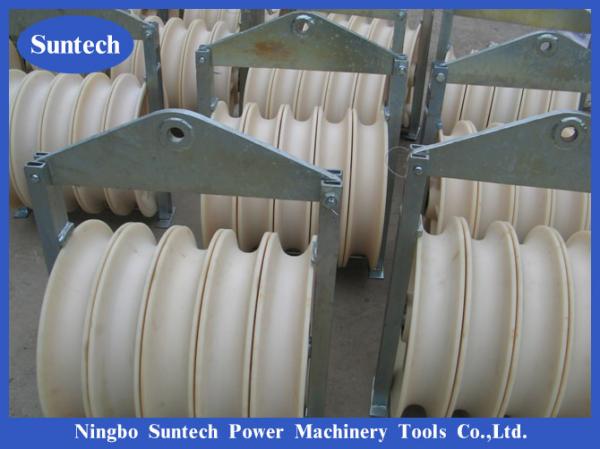

508 mm stringing blocks
508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| G1410 | SHD508 | 1 | 20 | 18 | Rubber lined aluminum sheave |
| G1411 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminum sheave |
| G1412 | SHW508 | 5 | 60 | 93 | |
| G1413 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| G1414 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminum sheave |
| G1415 | SHWLN508 | 5 | 60 | 79 | |
| G1416 | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| G1417 | SHWQN508 | 5 | 60 | 70 |
Services:
1. Our Quality Assurance
Before packaging, we should control the quality of each process to avoid defects in the manufacturing process.
2. Fast delivery time
There is sufficient stock, using advanced equipment and machinery to produce, to ensure delivery within 7-15 days.
3. Packaging
Durable wooden boxes, wooden pallets or cartons, you can ensure that the ordered items will reach your perfect state.
4. Application
It is widely used in overhead power line construction.
We are China 508*110mm Three Nylon Wheels Bundled Conductor Pulley manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
