508 X 75MM 60KN Conductor Stringing Blocks
508 X 75MM 60KN Conductor Stringing Blocks image
Brand Name :
Suntech
Model Number :
508X75MM
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
L/C , T/T, Western Union
Supply Ability :
8000 pcs per month
Delivery Time :
15-20 days after Payment
Packaging Details :
Exported Wooden Case
Name :
Stringing Block
Size :
508X75mm
Material :
MC Nylon Sheave
Application :
For transmission line
Usage :
High Voltage
Trade term :
FOB,CIF,CFR,EXW

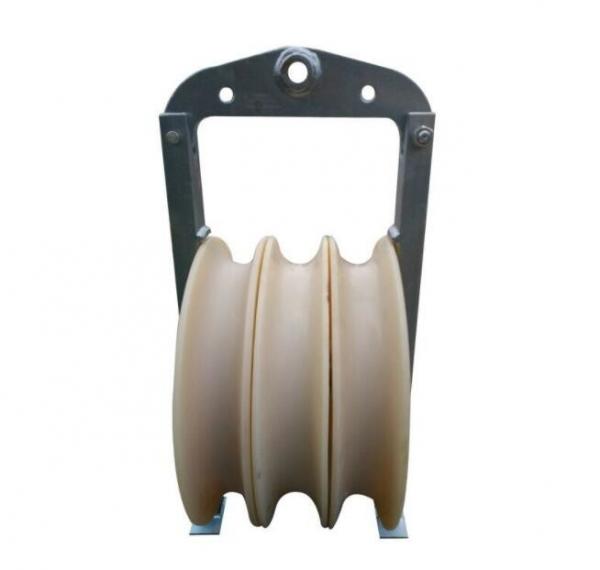

508 X 75MM THREE SHEAVES TRANSMISSION LINE MC NYLON CONDUCTOR STRINGING PILOT BLOCK
508 mm stringing blocks are normally used for stringing medium size conductor (17-25 mm) in overhead transmission line construction. We have designed series of these stringing blocks for single conductor, 2 bundled conductor and 4 bundled conductors stringing. 1.Maximum suitable conductor ACSR400.Configuration: 2.Sheave dimension ( outside diameter× root diameter × sheave width) Φ508×Φ408×75 (mm) 3.Sheave dimension Φ508×Φ408×100 (mm) can be customized
TECHNICAL DATA
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber lined aluminium sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104/10104A | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107/10107A | SHSQN508 | 3 | 40 | 38 | MC nylon sheave |
| 10108/10108A | SHWQN508 | 5 | 60 | 70 |
We are China 508 X 75MM 60KN Conductor Stringing Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
