508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley
508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley image
Brand Name :
Suntech
Model Number :
508X100mm
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 PCS
Price :
Get the lastest price
Payment Terms :
L/C , T/T, Western Union, MoneyGram
Supply Ability :
2000 pcs per month
Delivery Time :
10-15 days after Payment
Packaging Details :
Exported Wooden Case or Containers
Name :
Bundled Conductor Pulley
Sheaves :
1,3,5,7
Material :
MC Nylon Sheave
Application :
Stringing Line
Usage :
Transmission Line
Feature :
Work Well

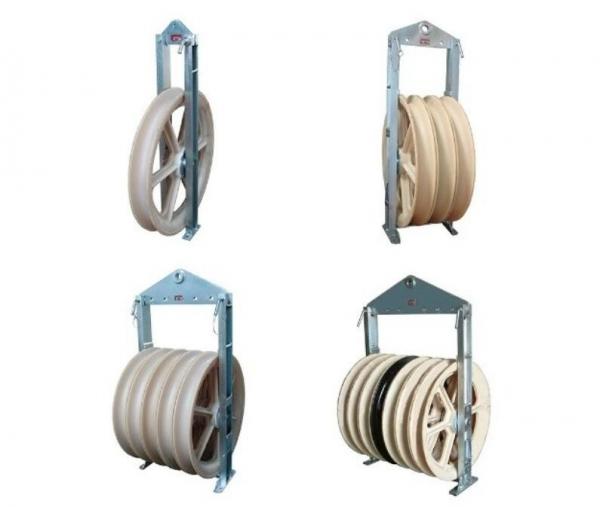

508mm Diameter Bundled Conductor Pulley Stringing Pulley Block With Nylon Wheel
ACSR Conductor Wire Nylon Pulley Block
This 508mm Large Diameter Stringing Block ,large diameter stringing pulley block and stringing conductor block comes with the maximum suitable conductor LGJ400. In other words, our product is adaptable to the conducting wire which has the aluminum's nominal cross section of up to 400 square millimeters. The block dimension (outside diameter*root diameter*sheave width) is Φ508×Φ408×75 (mm).
Bundled Conductor Pulley Stringing Pulley Block Technical Parameters
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features of Sheave |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber coated aluminum sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle: cast steel sheave Conductor: Rubber coated aluminum sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107 | SHSQN508 | 3 | 40 | 43 | MC nylon sheave |
| 10108 | SHWQN508 | 5 | 60 | 70 |
Note Bundled Conductor Pulley Stringing Pulley Block
Maximum suitable conductor ACSR400;
Sheave dimension ( outside diameter x root diamter xsheave width)
Sheave dimension Φ508×Φ408×75 (mm) can be customized.
Feature of sheave: rubber coated aluminum sheave,middle cast steel sheave, conductor: rubber coated aluminum sheave.
Our Service:
High quality fasteners products with best price;
Many years excellent experience with pre-sale and after-sale service;
Strict quality control according to your requirement;
Professional packing team keep every pack safely;
Send you some free samples along with your cargo to share us quality;
Large Pulley Blocks in Warehouse
We are China 508 mm Diameter Transmission Line Stringing Tools Bundled Conductor Pulley manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

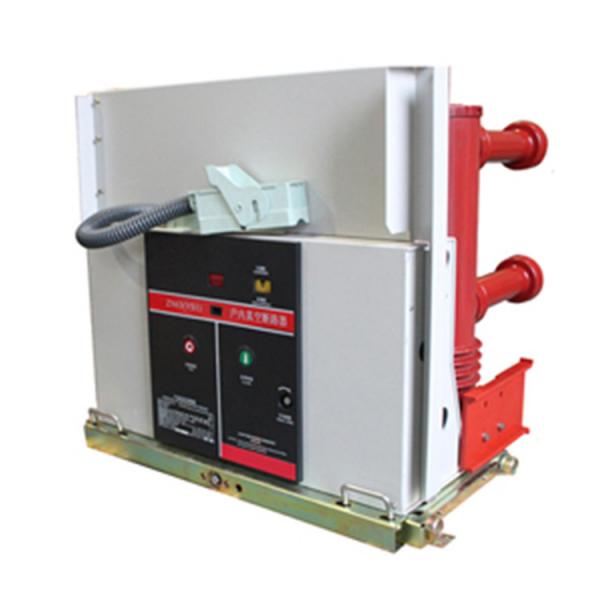

Tags: 12KV HV Circuit Breaker, 12KV Vacuum Circuit Breaker, conductor stringing blocks, GB 311.1 Vacuum Circuit BreakerSimilar Or Related
