500sqmm ASTMB231 AAC All Aluminum Conductor For Overhead Transmission Lines

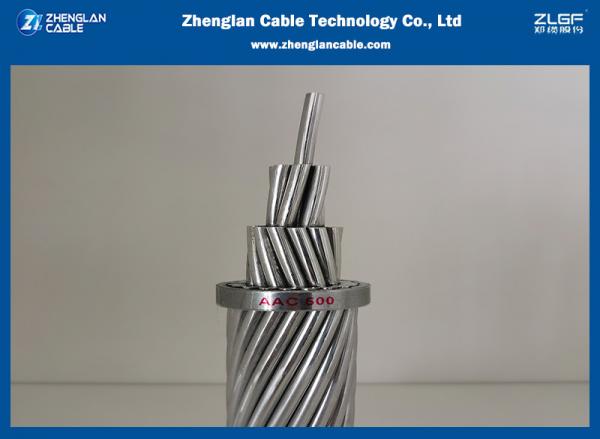

500sqmm ASTMB231 AAC All Aluminum Conductor For Overhead Transmission Lines image
Brand Name :
Zhenglan Cable
Model Number :
AAC 500mm²
Certification :
ISO 9001:2015, ISO 14001:2005, CE;
Place of Origin :
Henan, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T,
Delivery Time :
15 days
Packaging Details :
Wooden drum, wood and steel drum,as customer’s request
Material :
hard drawn aluminum wire
Out Sheath Color :
None
Core :
Normal OR CUSTOMIZED
Cable Drum Length :
Wooden
characted :
Bare Conductor
Nominal Area :
10-1500sqmm
Jacket :
None
Application :
Overhead line
500sqmm AAC All Aluminum Conductor For Overhead Transmission Lines ISO 9001:2015
Applications
Stranded 1350 aluminum conductors shown in this section of data are classified as follows:
Class AA For bare conductors usually used in overhead lines.
Class A For conductors to be covered with weather-resistant materials and for bare conductors where greater flexibility is required.
Compact strand conductor for use in bare overhead applications or for use with weather-resistant coverings or insulations is also available.
Classes refer to stranding and are an indication of relative conductor flexibility, AA being the least flexible, C the most flexible.
Construction
Aluminum alloy 1350-H19 wires, concentrically stranded.
STANDARD
ASTMB231,BS215 Part1,DIN48201,IEC61089
IEC 61089
|
Specification No. |
Nominal cross section mm² |
No.of single wire |
Diameter mm |
Unit length weight kg/km |
Rating tension resistance kN |
DC resistance 20℃ Ω/km |
|
| Single wire | Stranded wire | ||||||
|
10 16 25 40 63 |
10 16 25 40 63 |
7 |
1.35 1.71 2.13 2.7 3.39 |
4.05 5.12 6.40 8.09 10.2 |
27.4 43.8 68.4 109.4 172.3 |
1.95 3.04 4.50 6.80 10.39 |
2.8633 1.7896 1.1453 0.7158 0.4545 |
|
100 125 160 200 250 |
100 125 160 200 250 |
19 |
2.59 2.89 3.27 3.66 4.09 |
12.9 14.5 16.4 18.3 20.5 |
274.8 343.6 439.8 549.7 687.1 |
17.00 21.25 26.40 32.00 40.00 |
0.2877 0.2302 0.1798 0.1439 0.1151 |
|
315 400 450 500 560 |
315 400 450 500 560 |
37 |
3.29 3.71 3.94 4.15 4.39 |
23.0 26.0 27.5 29.0 30.7 |
867.9 1102.0 1239.8 1377.6 1542.9 |
51.97 64.00 72.00 80.00 89.60 |
1.0916 0.0721 0.0641 0.0577 0.0515 |
|
630 710 800 900 1000 |
630 710 800 900 1000 |
61 |
3.63 3.85 4.09 4.33 4.57 |
32.6 34.6 36.8 39.0 41.1 |
1738.3 1959.1 2207.4 2483.3 2759.2 |
100.80 113.60 128.00 144.00 160.00 |
0.0458 0.0407 0.0361 0.0321 0.0289 |
|
1120 1250 1400 1500 |
1120 1250 1400 1500 |
91 |
3.96 4.18 4.43 4.58 |
43.5 46.0 48.7 50.4 |
3093.5 3452.6 3866.9 4143.1 |
179.2 200.00 224.00 240.00 |
0.0258 0.0231 0.0207 0.0193 |
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
We are China 500sqmm ASTMB231 AAC All Aluminum Conductor For Overhead Transmission Lines manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 500sqmm AAC All Aluminum Conductor, 500sqmm ASTMB231 aac bull conductor, Aluminum Power Cable, ASTMB231 AAC All Aluminum ConductorSimilar Or Related
