4x70sqmm XLPE Insulated PVC Sheathed Power Cable Transmit Aluminum Conductor

 China 4x70sqmm XLPE Insulated PVC Sheathed Power Cable Transmit Aluminum Conductor supplier

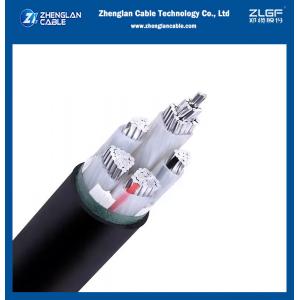

4x70sqmm XLPE Insulated PVC Sheathed Power Cable Transmit Aluminum Conductor image

Get a Quote Email to us

LV 4x70sqmm Aluminum conductor,XLPE insulated,PVC sheathed power cable transmit and distribute electrical energy

Application

These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

Structure
Conductor: Copper/Al
Insulation: XLPE/PVC
Inner sheath:PVC/LSZH/PE
Outer sheath: PVC/LSZH/PE
Operation characteristic
1.Rated voltage:0.6/1kV.
2.Long-term permission working temperature of cable conductor is 90℃.
3.The minimum allowable bending radius of cable is 8 times of outer diameter of thecable.

Construction:

Conductors :Soild, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228 can also be supplied upon request.

Insulation :XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.

Colour Code

Colour Code (1) :

1 Core : Red or Black

2 Cores : Red, Black

3 Cores : Red, Yellow, Blue

4 Cores : Red, Yellow, Blue, Black

5 Cores : Red, Yellow, Blue, Black, Green Above

5 Cores : Black Cores with White numerals

Colour Code (2) :

1 Core : Brown or Blue

2 Cores : Brown or Blue

3 Cores : Brown, Black, Grey

4 Cores : Blue, Brown, Black, Grey

5 Cores : Green/Yellow, Blue, Brown, Black, Grey Above

5 Cores : Black Cores with White numerals

Assembly /Inner Sheath

Two, Three or Four insulated conductors are laid-up together with non-hygroscopic

fillers and the assembly is bedded with an extruded layer of PVC. In case of non- armoured cables, this layer may be omitted;

Armour

Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346.

Single core cables shall be Aluminium wire armour.

Aluminum/Steel Tapes applied helically over the bedding of multi-core cables

as per IEC 60502.

Outer Sheath

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Fire Performance of Cable Sheaths

Cables can be supplied with special flame retardant PVC outer sheath to comply with the flame test requirements of IEC 60332-3-22, IEC 60332-3-23 and IEC 60332-3-24, can also supply cables with Low Smoke Halogen Free (LSHF) material according to

IEC 60502-1, BS 7211, BS 6724 or other equivalent standards.

Cable Parameters:

Four cores(Galvanized steel wire armoured)

Nominal
Area
Approx Conductor Diameter Nominal Insulation thickness Nominal bedding thickness Nominal Steel Wire dia. Nominal Sheath thickness Approx. Overall Diameter Approx.
Weight
mm² mm mm mm mm mm mm Kg/Km
4×1.5 1.6 0.7 1 0.9 1.8 15 415
4×2.5 2 0.7 1 0.9 1.8 17.5 490
4×4 2.6 0.7 1 0.9 1.8 19 600
4×6 3.1 0.7 1 0.9 1.8 20 730
4×10 4 0.7 1 1.25 1.8 23 970
4×16 5 0.7 1 1.6 1.8 26 1520
4×25 6.3 0.9 1 1.6 1.8 29 2010
4×35 7.4 0.9 1 1.6 1.9 31 2560
4×50 8.8 1 1 1.6 2.1 36 3350
4×70 10.6 1.1 1.2 2 2.2 40 4680
4×95 12.4 1.1 1.2 2 2.4 44 5710
4×120 14 1.2 1.4 2.5 2.5 50 7500
4×150 15.5 1.4 1.4 2.5 2.6 55 9010
4×185 17.4 1.6 1.4 2.5 2.8 61 10820
4×240 20.3 1.7 1.6 2.5 3.1 69 13630
4×300 22.7 1.8 1.6 2.5 3.2 75 16820
4×400 25.4 2 1.8 3.15 3.4 83 22230

Product show

About us:

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

Why Choose Zhenglan Cable:

  • OEM/ODM services provided;
  • Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
  • Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
  • Registered capital of $30 million and factory covers an area of 60,000㎡;
  • Advanced test equipment and procedures, 100% inspection before factory;
  • Enough stocks and the higest efficient shipping time guarranteed;
  • Professional pre-sales and after-sales services provided.

We are China 4x70sqmm XLPE Insulated PVC Sheathed Power Cable Transmit Aluminum Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
