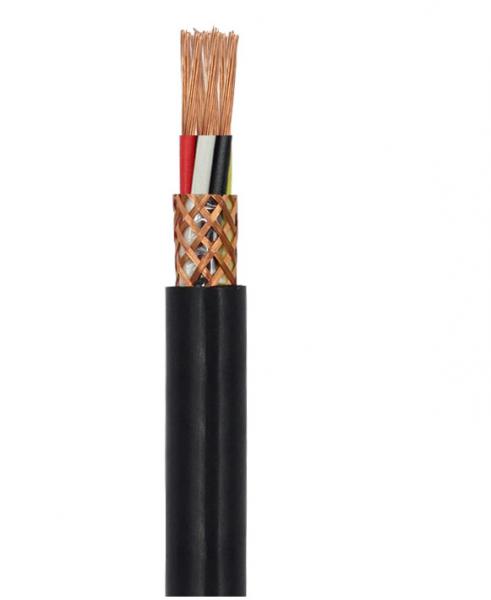

4mm2 6mm2 SWB Flame Retardant Cables For Alarm System
4mm2 6mm2 SWB Flame Retardant Cables For Alarm System image
Brand Name :
OEM
Certification :
ISO/RoHS/CE
Place of Origin :
china
MOQ :
200 meters
Payment Terms :
L/C, T/T
Supply Ability :
50000meters per week
Delivery Time :
5-15day
Packaging Details :
wooden drum
Application :
Mining,Alarm system and Signaling
Insulation material :
Fiberglass,
Conductor material :
copper
Type :
Insulated
Conductor type :
Stranded,flexible
Color :
black and others
Price :
Negotiable
4mm2 6mm2 SWB Flame Retardant Cables For Alarm System
Applications:
The cable is suitable for machine tools productions, the installation engineering of complete equipment, power stations, air-conditioning system, heating system, refrigeration equipment, Office Automation equipment, data processing system and other related situations.
Properties:
Has good mechanical, electrical insulation, and chemical properties. It also has the property of anti-electromagnetic wave due to the shielded structure..
Working Voltage:
< 0.75mm²:300/300V
≥ 0.75mm²:300/500V
Standards:
JB8734.4-1998 GB5023.5-2008
Fire rated cable for fire alarm system SWB shield Fire resistant Cable
|
Nominal Area mm2/AWG
|
Specification
|
Rated voltage
|
External Diameter mm
|
|
0.2(25AWG)
|
0.14*12
|
300/500V
|
4.4
|
|
0.2(24AWG)
|
0.15*12
|
300/500V
|
4.4
|
|
0.3(23AWG)
|
0.14*16
|
300/500V
|
5.0
|
|
0.3(22AWG)
|
0.15*18
|
300/500V
|
5.0
|
|
0.4(21AWG)
|
0.14*28
|
300/500V
|
5.6
|
|
0.5(20AWG)
|
0.15*28
|
300/500V
|
5.6
|
|
0.75(19AWG)
|
0.19*24
|
300/500V
|
6.5
|
|
1.0(18AWG)
|
0.18*32
|
300/500V
|
6.8
|
|
1.0(17AWG)
|
0.2*32
|
300/500V
|
6.8
|
|
1.5(16AWG)
|
0.19*48
|
300/500V
|
7.4
|
|
2.0(15AWG)
|
0.23*40
|
300/500V
|
9.4
|
|
2.0(14AWG)
|
0.24*45
|
300/500V
|
9.4
|
|
2.6(13AWG)
|
0.24*58
|
300/500V
|
10.0
|
|
4.0(12AWG)
|
0.24*80
|
300/500V
|
11.0
|
|
4.0(11AWG)
|
0.24*92
|
300/500V
|
11.0
|
|
6.0(10AWG)
|
0.24*115
|
300/500V
|
11.6
|
Fire rated cable for fire alarm system SWB shield Fire resistant Cable
We are China 4mm2 6mm2 SWB Flame Retardant Cables For Alarm System manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 4mm2 fire retardant cable, 6mm2 flame retardant cables, Fire Resistant Cable, SWB flame retardant cables
