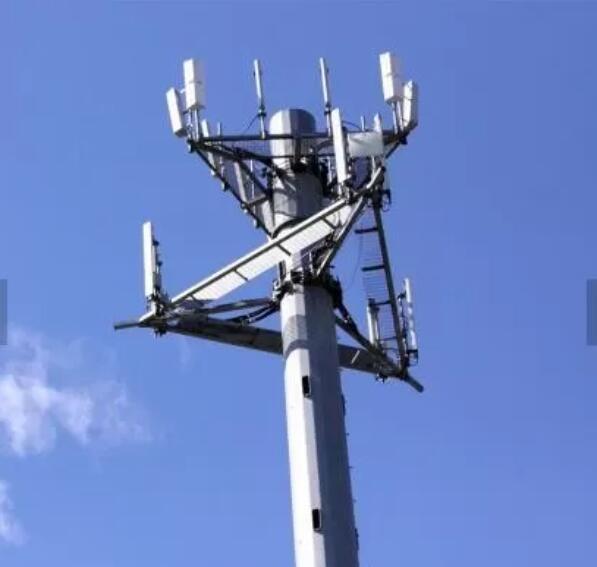

4G Steel Monopole Tower For Telecommunication Industry

4G Steel Monopole Tower For Telecommunication Industry image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
Telecommunication Tower

Certification :
ISO

Place of Origin :
China

MOQ :
1 Tower

Price :
Get the newest prices

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
80000 Metric Ton/Metric Tons Per Year

Delivery Time :
30-35 days after deposit

Packaging Details :
Exported Containers

Type :
Straight Pole ,Tensile Pole ,Turn Pole

Wind Pressure :
5-190 KM/H

Application :
Mobile Communication Tower

Usage :
Transmission line tower

Surface Treatment :
Hot Dip Galvanised

Life :
More than 30 years

Telecommunication Industry 4G Monopole Cell Steel Tower

Product Name: 4G Cell Monopole Tower for Telecommunication Industry

Communication tower consists of tower body, platform, lightning rod, ladder, antenna support and other steel components, and by hot galvanized anti-corrosion treatment, mainly for microwave, ultrashort wave, wireless network signal transmission and transmission.

Bundled by Galvanized strapping for 30m Galvanized Steel Single Mast Communication Antenna Poles Cell Phone Radios Monopole TowerContainer bag for Connection Bolts.

Specifications of :4G Cell Monopole Tower

Products	4G Cell Monopole Tower for Telecommunication Industry
Height	15-60m
Applications	Telecommunication, Broadcasting, etc
Shape	Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material	Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Surface Treatment	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 Can be powder coated or painted according to clients' request
Wall Thickness	2~30mm
Once Forming	16m Once forming without joint
Welding	Welding of cell monopole tower complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods No fissure, scar, overlap, layer or other defects Internal and external welding makes cell monopole tower more beautiful in shape If customers need any other requirements of welding on cell monopole tower , we also can make adjustment ad your request
Joint	Cell monopole tower is jointed with insert mode, flange mode.
Base plate	Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
Life Period	More than 30 years, it is according to installing environment

Hot dip galvanizing	Standard	Steel thickness/mm	Mean coating thickness/μm	Metallic element	Content
Pole shafts,cross arms&bolted on accessories	ASTM A123/A123M-15 AS/NZS 4680	>6	85	Mn	0.25%-0.40%
		<3-6	70	Mn	0.25%-0.40%
		1.5-3	55	Cu	<0.15%
		<1.5	55	Cu	<0.15%
Bolts,nuts&washers	GB/T 5267.3-2008 (ISO 10684-2004)	_____	≥ 54	P	<0.025%
Foundation bolts	ASTM A153/A153M-09	_____	≥ 54	S	<0.03%

Features of galvanized telescopic antenna mast:

1, wide application

2, standardized design

3, matured technology

4, good quality

Engineering and Design Management

“Design and technology,professional and common, software and hardware” is cell monopole tower

design philosophy. We have established a close cooperative relationship with design institutions and companies

in the same industry. Through close communication and explorations, our company took in advanced design

concept, introducing domestic and foreign first-class design software, and attracting high-quality personnel.

In the R&D Department, there are many experienced senior research & design staff and rigid development

network, which ensure our design proposals meet customer demand, even exceed their expectations.

We are China 4G Steel Monopole Tower For Telecommunication Industry manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
