477 Mcm ACSR Conductor / Overhead Electric Transmission ACSR Line Conductors BS50182/ASTMB232/232M/IEC61089

China 477 Mcm ACSR Conductor / Overhead Electric Transmission ACSR Line Conductors BS50182/ASTMB232/232M/IEC61089 supplier

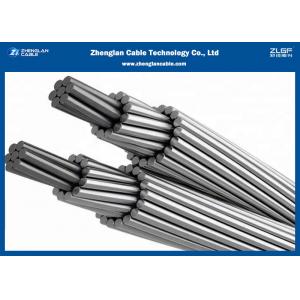

477 Mcm ACSR Conductor / Overhead Electric Transmission ACSR Line Conductors BS50182/ASTMB232/232M/IEC61089 image

Get a Quote Email to us

China Manufacturer 477 mcm ACSR Conductor Hot Sales Overhead Electric Transmission ACSR Line Conductors

APPLICATION

ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

STANDARD

Basic design to BS 215-2 / BS EN 50182 / IEC 61089 / ASTM B 232/B 232M / DIN 48204 / JIS C 3110 standards.

CONSTRUCTION

ACSR conductors are formed by several wires of aluminium and galvanized steel, stranded in concentric layers. The wire or wires which form the core, are made of galvanized steel and the external layer or layers, are of aluminium. Galvanized steel core consist normally of 1, 7 or 19 wires. The diameters of steel and aluminium wires can be the same, or different.

By varying the relative proportions of aluminium and steel, the required characteristics for any particular application can be reached. A higher U. T. S. Can be obtained, by increasing steel content, and a higher current carrying capacity by increasing aluminium content.

477 Mcm ACSR Conductor / Overhead Electric Transmission ACSR Line Conductors BS50182/ASTMB232/232M/IEC61089 TECHNICAL DATA

Numbers of Wires Modules of Elasticity Coeficient of linear Expansion
AL STEEL Kg/mm2 Lb/in2 1/Cº 1/Fº
6 1 81 11.5 x106 19.1 x10-6 10.6 x10-6
6 7 77 11.0 x106 19.8 x10-6 11.0 x10-6
12 7 107 15.2 x106 15.3 x10-6 8.5 x10-6
18 1 67 9.5 x106 21.2 x10-6 11.8 x10-6
24 7 74 10.5 x106 19.6 x10-6 10.9 x10-6
26 7 77 10.9 x106 18.9 x10-6 10.5 x10-6
28 7 79 11.2 x106 18.4 x10-6 10.2 x10-6
30 7 82 11.6 x106 17.8 x10-6 9.9 x10-6
30 19 80 11.4 x106 18.0 x10-6 10.0 x10-6
32 19 82 11.7 x106 17.5 x10-6 9.7 x10-6
54 7 70 9.9 x106 19.3 x10-6 10.7 x10-6
54 19 68 9.7 x106 19.4 x10-6 10.8 x10-6

477 Mcm ACSR Conductor / Overhead Electric Transmission ACSR Line Conductors BS50182/ASTMB232/232M/IEC61089 CONSTRUCTION PARAMETERS

AMERICAN STANDARD ASTM B232-B232 M1999
Code Word Stranding Stranding Nominal Overall Diameter Mass Rated Strength
Aluminium Wires Steel Wires
Number Diameter Number Diameter
mm mm mm kg/Km kN
Raven 6/1 6 3.37 1 3.37 10.11 216.08 19.48
Minorca 12/7 12 2.44 7 2.44 12.22 411.18 50.26
Quail 6/1 6 3.78 1 3.78 11.35 272.04 23.58
Leghorn 12/7 12 2.69 7 2.69 13.46 499.28 60.5
Guinea 12/7 12 2.92 1 2.92 14.63 589.76 71.17
Pigeon 6/1 6 4.25 1 4.25 12.75 343.02 29.45
Dotterel 12/7 12 3.08 7 3.08 15.42 656.13 76.95
Dorking 12/7 12 3.2 7 3.2 16.03 707.92 83.18
Brahma 16/19 16 2.86 19 2.48 18.14 1003.91 126.33
Cochin 12/7 12 3.37 7 3.37 16.87 783.96 92.08
Penguin 6/1 6 4.77 1 4.77 14.3 432.76 37.14
Partidge 26/7 26 2.57 7 2 16.31 546.01 50.26
Waxwing 18/1 18 3.09 1 3.09 15.47 430.23 30.69
Ostrich 26/7 26 2.73 7 2.12 17.27 613.42 56.49
Oriole 30/7 30 2.69 1 2.69 18.82 783.37 76.95
Linnet 26/7 26 2.89 7 2.25 18.29 687.53 62.72
Widgeon 18/1 18 3.47 1 3.47 17.37 542.88 38.7
Lark 30/7 30 2.92 7 2.92 20.47 925.34 90.3
Ibis 26/7 26 3.14 7 2.44 19.89 812.54 72.51
Brant 24/7 24 3.27 1 2.18 19.61 761.05 64.94
Chickadee 18/1 18 3.77 1 3.77 18.87 641.4 44.04
Hen 30/7 30 3.2 7 3.2 22.43 1110.76 105.87
Hawk 26/7 26 3.44 7 2.67 21.79 975.19 86.74
Flicker 24/7 24 3.58 7 2.39 21.49 913.58 76.51
Pelican 18/1 18 4.14 1 4.14 20.68 769.83 52.49
Eagle 30/7 30 3.46 7 3.46 24.21 1295.74 123.66
Dove 26/7 26 3.72 7 2.89 23.55 1138.74 100.53
Parakeet 24/7 24 3.87 7 2.58 23.22 1065.67 88.07
Osprey 18/1 18 4.47 1 4.47 22.33 897.81 60.94
Teal 30/19 30 3.61 19 2.16 25.25 1396.79 133.45
WoodDuck 30/7 30 3.61 7 3.61 25.25 1408.54 128.55
Squab 26/7 26 3.87 7 2.84 24.54 1237.11 108.09
Peacock 24/7 24 4.03 7 2.69 24.21 1158.98 96.08
Egret 30/19 30 3.7 19 2.22 25.88 1469.11 140.12
Scoter 30/7 30 3.7 7 3.7 25.88 1480.87 135.23
Grosbeak 26/7 26 3.97 7 3.09 25.15 1300.95 112.09
Rook 24/7 24 4.14 7 2.76 24.82 1217.61 100.53
Swift 36/1 36 3.38 1 3.38 23.62 956.59 61.39
Kingbird 18/1 18 4.78 1 4.78 23.88 1026.68 69.84
Gannet 26/7 26 4.07 7 3.16 25.76 1363.45 117.43
Flamingo 24/7 24 4.23 7 2.82 25.4 1276.69 105.42
Redwing 30/19 30 3.92 19 2.35 27.46 1650.82 153.91
Starling 26/7 26 4.21 7 3.28 26.7 1463.9 126.33
Stilt 24/7 24 4.39 7 2.92 26.31 1370.6 113.43
Mallard 30/19 30 4.14 19 2.48 28.96 1836.24 170.81
Condor 54/7 54 3.08 7 3.08 27.74 1520.9 125.44
Term 45/7 45 3.38 7 2.25 27 1331.9 98.31
Rake 26/7 26 4.44 7 3.45 28.14 1626.56 140.12
Cukoo 24/7 24 4.62 7 3.08 27.74 1522.39 124.1
Coot 36/1 36 3.77 1 3.77 26.42 1195.89 74.73
Canary 54/7 54 3.28 7 3.28 29.51 1723.29 141.9
Ruddy 45/7 45 3.59 7 2.4 28.73 1507.51 108.54
Cardinal 54/7 54 3.58 7 3.38 30.38 1826.12 150.35
Rail 45/7 45 3.7 7 2.47 29.59 1598.28 115.21
Catbird 36/1 36 4.14 1 4.14 28.96 1434.59 88.07
Curlew 54/7 54 3.51 7 3.51 31.62 1977.76 162.8
Ortolan 45/7 45 3.85 7 2.57 30.78 1730.73 123.22
Tanager 36/1 36 4.3 1 4.3 30.12 1553.64 95.19
Finch 54/19 54 3.65 19 2.19 32.84 2128.07 173.92
Bluejay 45/7 45 4 7 2.66 31.98 1866.15 132.56
Grackle 54/19 54 3.77 19 2.27 33.99 2278.37 186.38
Bunting 45/7 45 4.14 7 2.76 33.07 1997.11 142.34
Pheasant 54/19 54 3.9 19 2.34 35.1 2431.65 193.94
Bittern 45/7 45 4.27 7 2.85 34.16 2131.05 151.68
Skylark 36/1 36 4.78 1 4.78 33.43 1913.77 117.43
Martin 54/19 54 4.02 19 2.41 36.17 2581.96 205.95
Dipper 45/7 45 4.5 7 2.93 35.2 2263.49 161.02
Piover 54/19 54 4.14 19 2.48 37.21 2735.24 218.41
Bobolink 45/7 45 4.53 7 3.02 36.25 2397.43 170.37
Parrot 54/19 54 4.25 19 2.55 38.23 2884.05 229.97
Nuthatch 45/7 45 4.65 7 3.1 37.24 2529.87 178.37
Falcon 54/19 54 4.36 19 2.62 39.24 3038.82 202.39
Lapwing 45/7 45 4.78 7 3.18 38.2 2663.81 187.71
Chukar 84/19 84 3.7 19 2.22 40.69 3083.47 226.86
Bluebird 84/19 84 4.07 19 2.44 44.75 3732.31 268.23
Kiwi 72/7 72 4.41 7 2.94 44.07 3424.26 221.52
Thrasher 76/19 76 4.43 19 2.07 45.77 3754.63 252.21

477 Mcm ACSR Conductor / Overhead Electric Transmission ACSR Line Conductors BS50182/ASTMB232/232M/IEC61089 drawing
