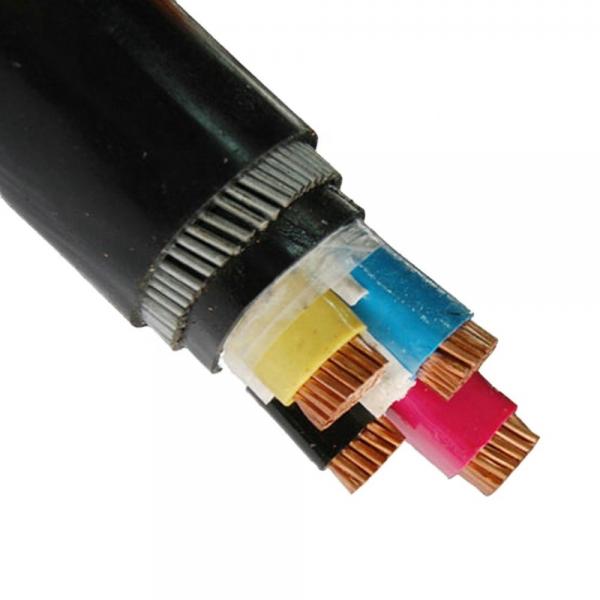

4*70 SQ MM Armoured Electrical Cable Copper Core NYRY Cable
4*70 SQ MM Armoured Electrical Cable Copper Core NYRY Cable image
Brand Name :
Nuoxing
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000 meters
Price :
USD 1-100
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Model Number :
NYRY
Product Name :
NYRY Armoured Electrical Cable
Conductor :
Copper
Insulation material :
PVC
Armour :
Steel Wire
Type :
Low Voltage
Jacket :
PVC
Referece Standard :
IEC60502
Package :
Wooden Reel, Iron-wooden Reel, Steel Reel
4*70 SQMM CU/PVC/SWA/PVC Copper Core Steel Wire Armor NYRY Armoured Electrical Cable
Application:
NYRY Armoured Electrical Cable suitable for AC rated voltage 0.6/1K and below power transmission and distribution system. Adopt GB IEC standard production, excellent physical performance, easy to lay and use.
Use characteristics:
1 The long-term allowable working temperature of the conductive core of the cable does not exceed 70 degrees
2 When short circuit (the longest time is not more than 5 seconds), the maximum temperature of the cable conductor does not exceed 165 degrees
3 The cable is not limited by the drop in laying, and the ambient temperature when the cable is laid is not less than 0 degrees.
4 Good chemical stability, resistance to acid, alkali, salt oil and organic solvents, and has the characteristics of flame resistance
5 Light weight, good bending performance, simple and convenient installation and maintenance
Construction:
VV32/VLV32-0.6/1-kV-single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Polyvinyl chloride PVC
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Low carbon steel wire
7. Binder tape: Non-hygroscopic material
8. Outer sheath: Polyvinyl chloride PVC
Specificaiton:
| Product name | Armoured Electrical Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 0.6/1 KV |
| Conductor material | Copper/Aluminum |
| Insulation Material | XLPE/PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
Quality commitment:
1. Strictly implement the quality management system, the products conform to the relevant national standards and customer requirements.
2. The products are packed and transported in strict accordance with customer requirements and regulations to ensure the safety and reliability of the products during loading and unloading and transportation.
3. Product per circle of meters, less 1 meter our company add 10 meters.
4. Product implementation of three packages (quality, quantity, price), free technical advice and related technical information for customers.
5. Strict quality control on the procurement of raw materials, product production process quality control points, semi-finished products, finished products, packaging, etc., to ensure excellent product quality and timely delivery.
Armoured Electrical Cable
We are China 4*70 SQ MM Armoured Electrical Cable Copper Core NYRY Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
