450 / 750V Non Flexible Pvc Insulated Building Wire And Cable PVC Type ST5 Sheathed

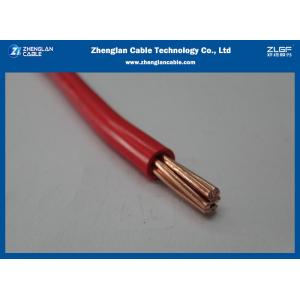

450 / 750V Non Flexible Pvc Insulated Building Wire And Cable PVC Type ST5 Sheathed image
300/500V non-flexible pvc insulated copper wire single solid core building wire
Place of Origin:Henan, China (Mainland)
Brand Name: ZHENGLAN
Model Number: BV
Type: Insulated
Application: fix installation use
Shelf Life: 30 years
Color: Red/Yellow/Blue/Green/Black…
Conductor Material: 99.99% oxygen-free Copper
Conductor Type: Solid type catagory 1 or stranded catagory 2
Insulation Material: PVC/XLPE
Packaging Details: 100m in coil or other as customized
Descriptions
Code designation: 60227 IEC (International)
Electrical BV Cable Conductor
PVC Insulated Cable
conductor are solid or stranded, high conductivity plain annealed copper wires meeting the requirements of the class in BS 6360 and IEC 228 specifications for "Conductors in insulated cables with solid copper conductors are offered up to 1 Sq.mm.
Electrical BV Cable Insulation
pvc insulated power cable The insulation of standard wiring cables is PVC grade Type T1 1 of Bs 7655 Formerly BS 6746) suitable for a maximum continous conductor operating temperature of 70C
Where specifically required, wiring cables can be offered with heat resistance PVC insulated grade. Type 5 (85 cType T1 3 (90 c). These cables are identified by the grade of PVC.
Single core Non- flexible copper wire Data sheet
300/500V
| Core number/sectional area(mm²) | Core no./diameter(mm) | Outer diameter(mm) | Weight(kg/km) | 20℃conductor resistance(Ω/km) |
| 1×0.5 | 1/0.80 | 2.3 | 8.5 | 36.0 |
| 1×0.75(A) | 1/0.97 | 2.5 | 11.1 | 24.5 |
| 1×0.75(B) | 7/0.37 | 2.6 | 12.0 | 24.5 |
| 1×1.0(A) | 1/1.13 | 2.6 | 12.0 | 24.5 |
| 1×1.0(B) | 7/0.43 | 2.7 | 13.9 | 18.1 |
A–stands for solid annealed copper class 1; B– stands for Stranded copper, class 2
450/750V
| Core number/sectional area(mm²) | Core no./diameter(mm) | Outer diameter(mm) | Weight (kg/km) | 20℃conductor resistance(Ω/km) | ||
| Cu | Al | Cu | Al | |||
| 1×1.5(A) | 1/1.38 | 3.2 | 20.3 | 12.1 | ||
| 1×1.5(B) | 7/0.52 | 3.3 | 21.6 | 12.1 | ||
| 1×2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 7.41 | 11.80 |
| 1×2.5(B) | 7/0.68 | 4.0 | 34.8 | 7.41 | ||
| 1×4(A) | 1/2.25 | 4.4 | 47.1 | 22 | 4.61 | 7.39 |
| 1×4(B) | 7/0.85 | 4.6 | 50.3 | |||
| 1×6(A) | 1/2.76 | 5.0 | 50.3 | 29 | 3.08 | 4.91 |
| 1×6(B) | 7/1.04 | 5.2 | 53.7 | 3.08 | ||
| 1×10 | 7/1.35 | 6.4 | 119 | 62 | 1.83 | 3.08 |
| 1×16 | 7/1.70 | 7.8 | 179 | 78 | 1.15 | 1.91 |
| 1×25 | 27/2.04 | 9.7 | 281 | 118 | 0.727 | 1.20 |
| 1×35 | 27/2.52 | 10.9 | 381 | 156 | 0.524 | 0.866 |
| 1×50 | 19/1.78 | 12.8 | 521 | 215 | 0.387 | 0.641 |
| 1×70 | 19/2.14 | 14.4 | 734 | 282 | 0.268 | 0.443 |
| 1×95 | 19/2.52 | 17.1 | 962 | 385 | 0.193 | 0.320 |
| 1×120 | 37/2.03 | 18.8 | 1180 | 431 | 0.153 | 0.253 |
| 1×150 | 37/2.25 | 20.9 | 1470 | 539 | 0.124 | 0.208 |
| 1×185 | 37/2.52 | 23.3 | 1810 | 666 | 0.0991 | 0.164 |
| 1×240 | 61/2.25 | 26.6 | 2350 | 857 | 0.0754 | 0.125 |
| 1×300 | 61/2.52 | 29.6 | 2930 | 1070 | 0.0601 | 0.100 |
| 1×400 | 61/2.85 | 33.2 | 3870 | 1390 | 0.0470 | 0.0778 |
A–stands for solid annealed copper class 1; B– stands for Stranded copper, class 2
Products and factory images
We are China 450 / 750V Non Flexible Pvc Insulated Building Wire And Cable PVC Type ST5 Sheathed manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
