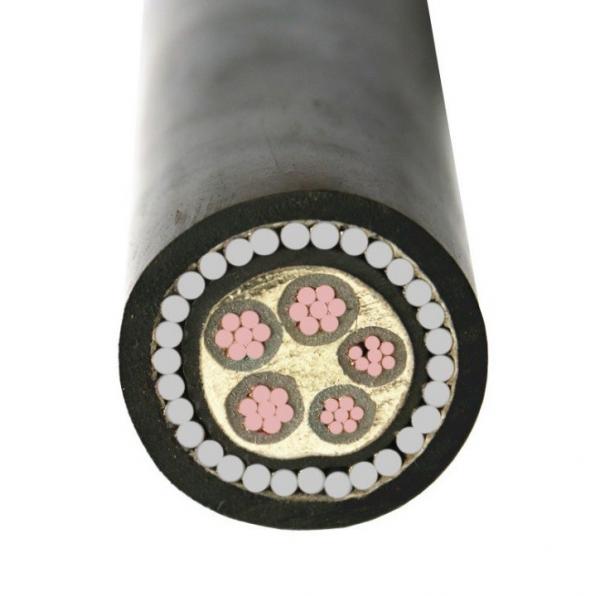

4+1 Core Low Carbon N2XRY Cable 0.6KV 1KV SWA Power Cable

 China 4+1 Core Low Carbon N2XRY Cable 0.6KV 1KV SWA Power Cable supplier

4+1 Core Low Carbon N2XRY Cable 0.6KV 1KV SWA Power Cable image

Get a Quote Email to us

Brand Name :
Nuoxing

Certification :
CE/CCC/ISO9001

Place of Origin :
China

MOQ :
1000 meters

Price :
USD 1-100

Payment Terms :
T/T, L/C, Western Union

Supply Ability :
1000 km per month

Delivery Time :
10-20 days

Packaging Details :
standard export packing in wooden drums or boxes

Product Name :
4+1 Core Low Carbon SWA Power Cable Wire Low Voltage

Conductor material :
Copper

Insulation material :
XLPE

Application :
Construction,Underground,Industrial

Core :
1, 2, 3, 3+1, 3+2, 4, 4+1 core

Jacket :
PVC

Standard :
IEC60502

Armor :
Non-magnetic steel wire/low carbon steel wire

0.6 1 KV 4+1 Core Low Carbon SWA N2XRY Power Cable Wire Low Voltage

0.6/1 KV Non-Hygroscopic Material Tape N2XRY Low Voltage Electrical Cable

Construction:

Single-core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: Cross-linked polyethylene XLPE
3. Inner sheath: Polyvinyl chloride PVC
4. Armour: Non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: Polyvinyl chloride PVC

Multi core
1. Conductor: Copper or aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: crosslinked polyethylene XLPE
3. Filler: Non-hygroscopic material
4. Binder tape: Non-hygroscopic material
5. Inner sheath: Polyvinyl chloride PVC
6. Armour: Steel-tape
7. Outer sheath: Polyvinyl chloride PVC

Application:

N2XRY low voltage power cable is not only simple in structure and convenient to use, but also has excellent electrical insulation, physical and mechanical properties, flame resistance, chemical resistance, impact resistance, performance, and moisture resistance. The laying temperature of the cable is not lower than 0℃, the long-term allowable working temperature (90℃), the current transmission capacity is large, and it is not restricted by the laying drop.

Product advantages:

1. Excellent insulation:
XLPE maintains the original good insulation of PE, and the insulation resistance is further increased. The dielectric loss tangent value is very small, and it is not greatly affected by temperature.
2. Heat resistance:
XLPE has very high heat resistance, the long-term working temperature can reach 90℃, and the heat life can reach 40 years.
3. Better mechanical properties:
Due to the establishment of new chemical bonds between macromolecules, the hardness, stiffness, resistance and impact resistance of XLPE have been improved, thereby making up for the shortcomings of PE being vulnerable to environmental stress and cracking.
4. Chemical resistance:
XLPE has strong acid and alkali resistance and oil resistance. Its combustion products are mainly water and carbon dioxide, which is less harmful to the environment and meets modern fire safety requirements.

Specificaiton:

Product name Low Voltage Electrical Cable
Certifications CE/CCC/ISO
Standard IEC60502-1
Rated Voltage 0.6/1 KV
Conductor material Copper/Aluminum
Insulation Material XLPE/PVC
Armoured Material None/Steel Tape/Steel wire
Jacket Material PVC
Number of cores 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C
Section area 1.5MM2 – 400MM2

FAQ:

Q1. Are you trading company or manufacturer ?

A: We are professional manufacture with our own independent export rights.

Q2. What if I don’t find the type and size of cable I need on this page?

A: Don't worry. Contact us and send us your requirements, we will help you choose the correct cable you need. It is better if you have the following information: cable voltage, conductor material, insulation and outer sheath material, armor type. Otherwise, you can provide us with cable installation environment, application requirements, etc.

Q3. Can you produce according to the samples ?

A: Yes, we can produce by your samples or technical drawings.

Q4. How long is you delivery time ?

A: Depends on your quantity, normally 1-3 weeks.

We are China 4+1 Core Low Carbon N2XRY Cable 0.6KV 1KV SWA Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
