4 Legged Self Supporting Gsm Galvanised Telecommunication Steel Tower

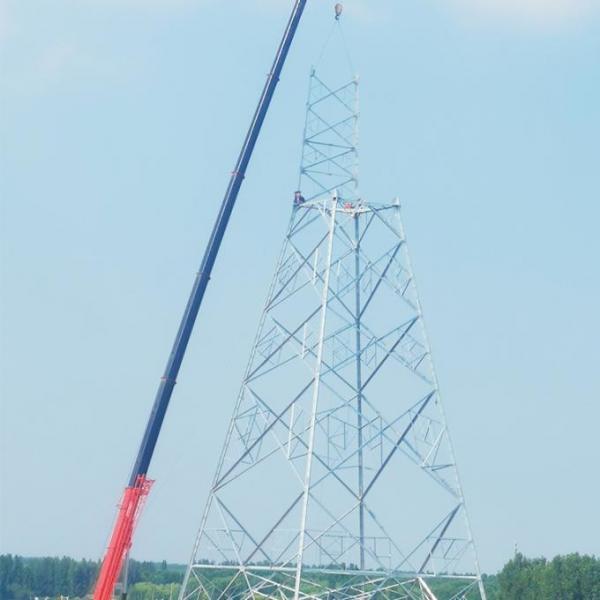

4 Legged Self Supporting Gsm Galvanised Telecommunication Steel Tower image
Brand Name :
Suntech
Model Number :
Telecom Tower
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Tower
Price :
Get the newest prices
Payment Terms :
L/C, T/T
Supply Ability :
30000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Product Name :
GSM Tower
Material :
Steel Q355/Q255
Application :
Telecommunication Tower
Usage :
Steel Tower
Lifetime :
20-30 years
4 Legged Self Supporting Steel Galvanised Telecom Gsm Tower
Signal tower is a type of signal transmission tower, also called a signal transmission tower or a signal
tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe
three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole),
lifting communication tower, and movable communication tower.
With more than 26 years experiences on the steel pole,we have manufactured and exported huge quantity
of hot dip galvanized and /or Steel Antenna Microwave Communication Monopole from 20m to 40m which
service for the signal transmission industry development of the world.We have the complete production line
and machines,and skillful workers with high efficiency which can make us produce 10 tons or 5 sets of the
electric power poles everyday. A quick production period and delivery schedule ensured our client have more
obvious advantage in their market.
The Steel Antenna Microwave Communication Monopole is made by the high-quality hot rolled steel plate
which was bent into Trapezoid according to the poles's dimension,then welding ,grinding,hot dip galvanized
and packing for delivery as following shows:
1. The single-tube tower is generally divided into 2-5 sections, which are connected by plug or flange.
2. The cross section of the single-tube tower is circular or polygonal, the main body of the tower is tapered,
and the upper diameter is small and the diameter is large.
3. There is an antenna installation platform on the body of the single-tube tower. The tower has a nail-climbing
worker to operate on the upper and lower towers. The tower has safety protection devices to protect workers.
4. Single-tube tower ladders can be set up in two forms: outer ladder and inner ladder.
5. The single-tube tower has a small footprint, simple tower structure and short construction period, which can
save land resources and costs, and is especially suitable for construction in cities.
Product Name | Angle-steel communication tower |
Application | Communication accessories |
Height | 5-80m |
Material | Q235/Q345 or customized |
Shape | Conoid ,Columniform or Polygonal |
Appearance | Hot dip galvanization and color paint as customer's request |
Spare Parts | Parts for connection or installation |
Galvanized standard | ASTM A123 |
Wind pressure | 160KM/H |
Minimum yield strength | 355 mpa |
Minimum ultimate tensile strength | 490 mpa |
Max ultimate tensile strength | 620 mpa |
Maximum Design Wind Speed | 30m/s |
Service life | 20-30 years |
We are China 4 Legged Self Supporting Gsm Galvanised Telecommunication Steel Tower manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
