4 Cores FR Cable Copper Conductor Mica Tape XLPE Insulated Fire Proof Cable 0.6/1kV

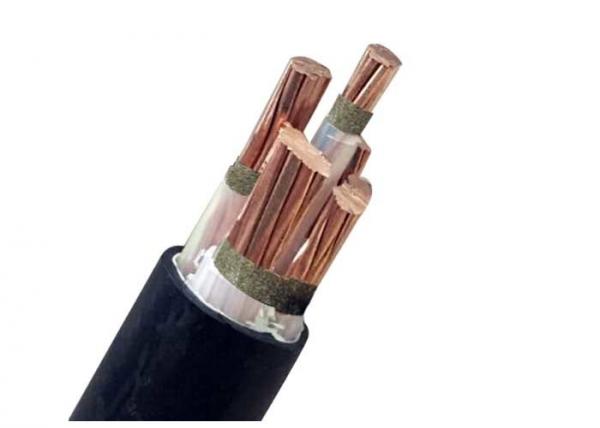

4 Cores FR Cable Copper Conductor Mica Tape XLPE Insulated Fire Proof Cable 0.6/1kV image
Brand Name :
SHANCABLE
Model Number :
NH-YJV
Certification :
CE/KEMA/ISO/PCCC
Place of Origin :
SHANGHAI,CHINA
MOQ :
1000m
Price :
0.15-35.9 US$/M
Supply Ability :
10KM per Week
Delivery Time :
As per requirement
Packaging Details :
Customized
Function :
Fire Resistant/Proof
Screen :
Mica Tape
Rated Voltage :
600/1000V
Insulation :
XLPE
Sample :
Free
Number of cores :
1,2,3,4,5
Application :
Indoor and Outdoor
Sheath :
PVC/PE/LSOH
Color :
Black, Orange
4 Cores High Quality FR Cable Copper Conductor Mica Tape XLPE Insulated Fire Proof Cable 0.6/1kV
Rated Voltage: 0.6/1KV
Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2
Applications
These cables are installed to supply power to building essential services including fire alarms,
sprinkler control system, emergency and evacuation lighting and smoke control systems,
such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels
Standards
International: IEC 60502, IEC 60227 IEC 60331, IEC 601034
China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001
Other standards such as BS,DIN and ICEA upon request
Technical data
Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )
Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C
Min. Bending Radius: single core cable 20(d+D)±5%
Multi-core cable 15(d+D)±5%
Certificates
CE, RoHS, CCC, KEMA and more others at request
Constructions
Conductor — Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound
Insulation — XLPE or LSZH compound
Sheath — PVC/PE/LSZH compound
Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath
Max. Operating Temperature : 100 meters per roll or wooden drum or as per requirement
Production Capacity : 20 kilometer/ day
MOQ : 5000 meters for small size, 1000 meters for big size
Specifications
| Nom. Cross-section of conductor | Insulation Thickness | Sheath | Approx. | Approx | Max. D.C. Resistance of Conductor (20°C) | Test Voltage | Current Rating | |
| mm2 | mm | Thickness | O.D. | Weight | Ω/km | A.C | ||
| mm | mm | kg/km | kV/5min | In air(A) | In soil(A) | |||
| 4×1.5 | 0.7 | 1.8 | 14.4 | 241 | 12.1 | 3.5 | 20 | 27 |
| 4×2.5 | 0.7 | 1.8 | 15.4 | 295 | 7.41 | 3.5 | 26 | 35 |
| 4×4 | 0.7 | 1.8 | 16.5 | 369 | 4.61 | 3.5 | 34 | 45 |
| 4×6 | 0.7 | 1.8 | 17.8 | 463 | 3.08 | 3.5 | 43 | 57 |
| 4×10 | 0.7 | 1.8 | 20.9 | 667 | 1.83 | 3.5 | 60 | 77 |
| 4×16 | 0.7 | 1.8 | 23.4 | 930 | 1.15 | 3.5 | 83 | 105 |
| 4×25 | 0.9 | 1.8 | 27.1 | 1351 | 0.727 | 3.5 | 105 | 125 |
| 4×35 | 0.9 | 1.8 | 29.5 | 1772 | 0.524 | 3.5 | 125 | 155 |
| 4×50 | 1 | 1.9 | 38.4 | 2380 | 0.387 | 3.5 | 160 | 185 |
| 4×70 | 1.1 | 2 | 43.2 | 3302 | 0.268 | 3.5 | 200 | 225 |
| 4×95 | 1.1 | 2.2 | 47.3 | 4330 | 0.193 | 3.5 | 245 | 270 |
| 4×120 | 1.2 | 2.3 | 52.5 | 5374 | 0.153 | 3.5 | 285 | 310 |
| 4×150 | 1.4 | 2.5 | 58.3 | 6655 | 0.124 | 3.5 | 325 | 345 |
| 4×185 | 1.6 | 2.7 | 64.7 | 8246 | 0.0991 | 3.5 | 375 | 390 |
| 4×240 | 1.7 | 2.9 | 73.1 | 10569 | 0.0754 | 3.5 | 440 | 450 |
| 4×2.5+1×1.5 | 0.7 | 1.8 | 16.5 | 313 | 7.41 | 26 | 35 | |
| 4×4+1×2.5 | 0.7 | 1.8 | 17.7 | 424 | 4.61 | 34 | 45 | |
| 4×6+1×4 | 0.7 | 1.8 | 19.1 | 535 | 3.08 | 43 | 57 | |
| 4×10+1×6 | 0.7 | 1.8 | 22.1 | 760 | 1.83 | 60 | 77 | |
| 4×16+1×10 | 0.7 | 1.8 | 25.1 | 1071 | 1.15 | 83 | 105 | |
| 4×25+1×16 | 0.7 | 1.8 | 29 | 1556 | 0.727 | 105 | 125 | |
| 4×35+1×16 | 0.9 | 1.9 | 31.4 | 1976 | 0.524 | 125 | 155 | |
| 4×50+1×25 | 1 | 2.1 | 36 | 2689 | 0.387 | 160 | 185 | |
| 4×70+1×35 | 1.1 | 2.2 | 41.1 | 3719 | 0.268 | 200 | 225 | |
| 4×95+1×50 | 1.1 | 2.4 | 46.3 | 4903 | 0.193 | 245 | 270 | |
| 4×120+1×70 | 1.2 | 2.5 | 51 | 6165 | 0.153 | 285 | 310 | |
| 4×150+1×70 | 1.4 | 2.7 | 55.8 | 7431 | 0.124 | 325 | 345 | |
| 4×185+1×95 | 1.6 | 2.9 | 62.1 | 9192 | 0.0991 | 375 | 390 | |
| 4×240+1×120 | 1.7 | 3.1 | 68.8 | 11860 | 0.0754 | 440 | 450 | |
Operating characteristics
1. Max Long-time operating temperature of PVC insulated cable is 70°C,XLPE 90°C;
2. Installing temperature of cable should not be less than 0°C;
3. Max short-circuit temperature is:PVC not exceed 160°C,XLPE 250°C,Not more than5 Sec;
4. Permitting bending radius cable: Not less than 10 D times (D:external diameter of cable)
5. Perfect chemical stability, resistant against acids, alkali, grease and organic solvents, and flamer retardant.
FAQ
Shipping: By sea or air due to heavy weight. Samples will be send by DHL, Fedex. etc
Payment: We accept T/T, L/C , just choose what you like
Delivery time: Generally 15~25 working days upon receipt deposit. According to the quantity.
MOQ: Generally our MOQ is 1000meters. samples below 20 centimeter can be provided freely.
