4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof

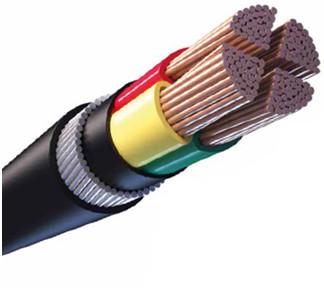

4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof image
Brand Name :
Huanghe
Model Number :
PVC Insulated Electrical Cable
Certification :
IOS OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Conductor :
Annealed Copper or Hard Drawn Aluminum
Insulation :
Polyvinyl Chloride (PVC)
Outer Sheath :
Polyvinyl Chloride (PVC)
Armor :
DSTA/SWA/AWA Armored or Unarmored
Rated Voltage :
0.6/1KV
Cross Section Area :
0.75mm2-1000mm2
Standard :
IEC60502, BS IEC ASTM DIN, GB/T12706, VDE, UL
Color :
Black or Customized
Application :
Construction, Industrial, Underground, Power Station
Feature :
Abrasion-resistant
4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof
Rated Voltage:
0.6/1kv
Number of cores:
1 core, 2 core, 3 core, 3+1 core, 3+2 core, 4 core, 4+1 core, 5 core
PVC Insulated Cable Application:
PVC insulated cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks.
PVC Insulated Cable Electrical Characreristics:
| Rated Voltage Uo/U | 0.6/1 kV |
| Maximum operating voltage | 1.2 kV |
| Frequence | 50 Hz |
| Test voltage : | 3500 V |
| Permissible operating temperature at conductor | +70°C |
| short circuit temperature ( duration max. 5 s) | +160°C |
| Minimum installation temperature | should not be lower than 0°C |
| Max. conductor permissible tensile stress | 50 N/mm² |
| Minimum bending radius | 15 x cable Ø |
PVC Insulated Cable Types:
| PVC Insulated Cable Types | Description | Cores | Nomi Section Area |
| Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, electric cable |
1 core
2 core 3 core 4 core 5 core 3+1 core 3+2 core 4+1 core |
1.5~1000mm2 |
| Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, electric cable |
||
| Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | 4~1000mm2 | |
| Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, electric cable | ||
| Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, electric cable | ||
| ZR-Cu/PVC/PVC | copper core, pvc insulated, pvc sheathed, flame retardant, electric cable | 1.5~1000mm2 | |
| ZR-Al/PVC/PVC | aluminum core, pvc insulated, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/STA/PVC | copper core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | 4~1000mm2 | |
| ZR-Al/PVC/STA/PVC | aluminum core, pvc insulated, steel tape armoured, pvc sheathed, flame retardant, electric cable | ||
| ZR-Cu/PVC/SWA/PVC | copper core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
||
| ZR-Al/PVC/SWA/PVC | aluminum core, pvc insulated, steel wire armoured, pvc sheathed, flame retardant, electric cable |
PVC Insulated Cable Technical Data:
0.6/1KV Cu- conductor, PVC Insulated, PVC Sheathed (Unarmoured) 3 core
| No.cores x cross-sec. |
Insulation thickness |
Nominal Sheath |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg / km | A | A | Ω/km |
| 3×1.5 | 0.7 | 1.8 | 10.1 | 132 | 21 | 28 | 12.1 |
| 3×2.5 | 0.7 | 1.8 | 11.0 | 171 | 28 | 37 | 7.41 |
| 3×4.0 | 0.7 | 1.8 | 12.0 | 225 | 37 | 48 | 4.61 |
| 3×6.0 | 0.7 | 1.8 | 13.1 | 296 | 47 | 61 | 3.08 |
| 3×10 | 0.7 | 1.8 | 15.3 | 440 | 64 | 82 | 1.83 |
| 3×16 | 0.7 | 1.8 | 17.5 | 638 | 85 | 107 | 1.15 |
| 3×25 | 0.9 | 1.8 | 21.0 | 954 | 115 | 138 | 0.73 |
| 3×35 | 0.9 | 1.8 | 23.1 | 1266 | 140 | 165 | 0.52 |
| 3×50 | 1.0 | 1.8 | 23.4 | 1614 | 168 | 198 | 0.39 |
| 3×70 | 1.1 | 1.9 | 27.4 | 2264 | 213 | 242 | 0.27 |
| 3×95 | 1.1 | 2.0 | 30.6 | 2975 | 263 | 290 | 0.19 |
| 3×120 | 1.2 | 2.1 | 34.0 | 3776 | 307 | 330 | 0.15 |
| 3×150 | 1.4 | 2.3 | 38.6 | 4682 | 357 | 371 | 0.12 |
| 3×185 | 1.6 | 2.4 | 43.3 | 5802 | 415 | 418 | 0.10 |
| 3×240 | 1.7 | 2.6 | 48.1 | 7437 | 498 | 485 | 0.08 |
| 3×300 | 1.8 | 2.8 | 52.2 | 9313 | 575 | 548 | 0.06 |
0.6/1KV Cable Cu- Conductor, PVC Insulated, Steel Tape Armoured PVC Sheathed 3 Core
| No.cores x cross-sec. |
Insulation thickness |
Nominal Sheath |
Outer Ø approx. |
weight approx. |
Current ratings in air 30℃ | Current ratings buried 20℃ | maximum DC resistance at 20℃ |
|---|---|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg / km | A | A | Ω/km |
| 3×4 | 0.7 | 1.8 | 15.2 | 379 | 37 | 45 | 4.61 |
| 3×6 | 0.7 | 1.8 | 16.3 | 463 | 46 | 57 | 3.08 |
| 3×10 | 0.7 | 1.8 | 18.6 | 628 | 63 | 77 | 1.83 |
| 3×16 | 0.7 | 1.8 | 20.7 | 851 | 83 | 100 | 1.15 |
| 3×25 | 0.9 | 1.8 | 24.2 | 1209 | 112 | 131 | 0.73 |
| 3×35 | 0.9 | 1.8 | 26.4 | 1546 | 137 | 158 | 0.52 |
| 3×50 | 1.0 | 1.8 | 26.8 | 1908 | 163 | 187 | 0.39 |
| 3×70 | 1.1 | 2.0 | 32.0 | 2874 | 211 | 233 | 0.27 |
| 3×95 | 1.1 | 2.2 | 35.4 | 3685 | 255 | 277 | 0.19 |
| 3×120 | 1.2 | 2.3 | 38.8 | 4560 | 298 | 317 | 0.15 |
| 3×150 | 1.4 | 2.4 | 43.4 | 5570 | 348 | 358 | 0.12 |
| 3×185 | 1.6 | 2.6 | 48.5 | 6837 | 403 | 403 | 0.10 |
| 3×240 | 1.7 | 2.7 | 53.5 | 8606 | 480 | 468 | 0.08 |
| 3×300 | 1.8 | 2.9 | 57.6 | 10577 | 549 | 531 | 0.06 |
We are China 4 Core PVC Insulated Cable 5 Core Armoured Polyvinyl Chloride Wire Fireproof manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: PVC Insulated Cable, PVC Insulated Wire, PVC Sheathed CableSimilar Or Related
