4 Core Armoured Power Cable CU OR AL Underground 50mm² 70mm² 95mm² ISO 9001

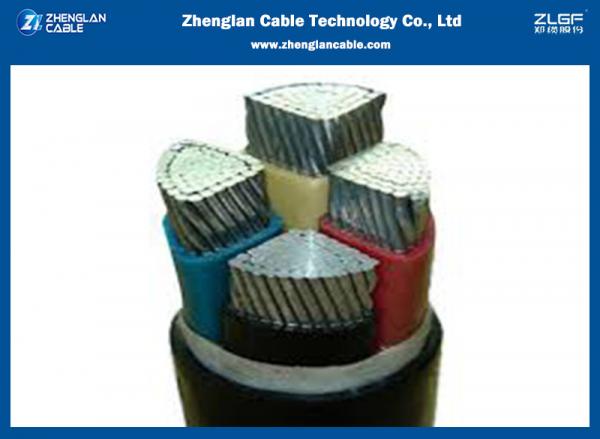

4 Core Armoured Power Cable CU OR AL Underground 50mm² 70mm² 95mm² ISO 9001 image
Brand Name :
Zhenglan cable
Model Number :
Armoured Power Cable
Certification :
CCC,ISO 9001,CE…
Place of Origin :
Henan, China
MOQ :
1000 meters
Price :
Negotiable
Payment Terms :
T/T, L/C,
Delivery Time :
5-15 days
Packaging Details :
Wooden drum, wood and steel drum,as customer’s request
Name :
Armoured Power Cable
Material :
CU/AL
Application :
power station
Insulation :
XLPE/PVC
Out Sheath Color :
Black or Customized
Core :
4
characted :
Armoured
Jacket :
PVC
Armoured :
STA/SWA
Shield :
Copper Tape
Port :
Shanghai or Qingdao
4 Core CU OR AL Underground 50mm² 70mm² 95mm² Armoured Power Cable ISO 9001 Multi Color
Application of Armoured Power Cable:
These Armoured Power Cable are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.
Parameters of Armoured Power Cable
|
Nominal Area |
Approx Conductor Diameter |
Nominal Insulation thickness |
Nominal bedding thickness |
Nominal Steel Wire dia. |
Nominal Sheath thickness |
Approx. Overall Diameter |
Approx. Weight |
| mm² | mm | mm | mm | mm | mm | mm | Kg/km |
| 4×1.5 | 1.6 | 0.7 | 1 | 0.9 | 1.8 | 15 | 415 |
| 4×2.5 | 2 | 0.7 | 1 | 0.9 | 1.8 | 17.5 | 490 |
| 4×4 | 2.6 | 0.7 | 1 | 0.9 | 1.8 | 19 | 600 |
| 4×6 | 3.1 | 0.7 | 1 | 0.9 | 1.8 | 20 | 730 |
| 4×10 | 4 | 0.7 | 1 | 1.25 | 1.8 | 23 | 970 |
| 4×16 | 5 | 0.7 | 1 | 1.6 | 1.8 | 26 | 1520 |
| 4×25 | 6.3 | 0.9 | 1 | 1.6 | 1.8 | 29 | 2010 |
| 4×35 | 7.4 | 0.9 | 1 | 1.6 | 1.9 | 31 | 2560 |
| 4×50 | 8.8 | 1 | 1 | 1.6 | 2.1 | 36 | 3350 |
| 4×70 | 10.6 | 1.1 | 1.2 | 2 | 2.2 | 40 | 4680 |
| 4×95 | 12.4 | 1.1 | 1.2 | 2 | 2.4 | 44 | 5710 |
| 4×120 | 14 | 1.2 | 1.4 | 2.5 | 2.5 | 50 | 7500 |
| 4×150 | 15.5 | 1.4 | 1.4 | 2.5 | 2.6 | 55 | 9010 |
| 4×185 | 17.4 | 1.6 | 1.4 | 2.5 | 2.8 | 61 | 10820 |
| 4×240 | 20.3 | 1.7 | 1.6 | 2.5 | 3.1 | 69 | 13630 |
| 4×300 | 22.7 | 1.8 | 1.6 | 2.5 | 3.2 | 75 | 16820 |
| 4×400 | 25.4 | 2 | 1.8 | 3.15 | 3.4 | 83 | 22230 |
Construction of Armoured Power Cable :
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.
Insulation:XLPE material and thickness shall be as per IEC 60502 or BS 5467 rated for 90°C continuous operation.
Colour Code:
| Colour Code (1) : | |
| 1 Core | Red or Black |
| 2 Cores | Red, Black |
| 3 Cores | Red, Yellow, Blue |
| 4 Cores | Red, Yellow, Blue, Black |
| 5 Cores | Red, Yellow, Blue, Black, Green |
Assembly /Inner Sheath: Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers and the assembly is bedded with an extruded layer of PVC. In case of non-armoured cables, this layer may be omitted.
Armour: Aluminum/Galvanized Steel Wires applied helically over the bedding as per IEC 60502 or as per BS 5467, BS 6346. Single core cables shall be Aluminium wire armour. Aluminum/Steel Tapes applied helically over the bedding of multi-core cables as per IEC 60502.
Outer Sheath: Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.
Pictures of Armoured Power Cable
Why you choose us?
- OEM/ODM services provided;
- Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
- Registered capital of $30 million and factory covers an area of 60,000㎡;
- Advanced test equipment and procedures, 100% inspection before factory;
- Enough stocks and the higest efficient shipping time guarranteed;
- Professional pre-sales and after-sales services provided.
We are China 4 Core Armoured Power Cable CU OR AL Underground 50mm² 70mm² 95mm² ISO 9001 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
