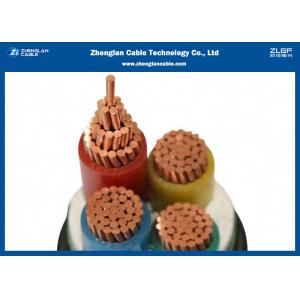

4 Core 5 Core Armoured Copper XLPE Low Smoke Zero Halogen Cables

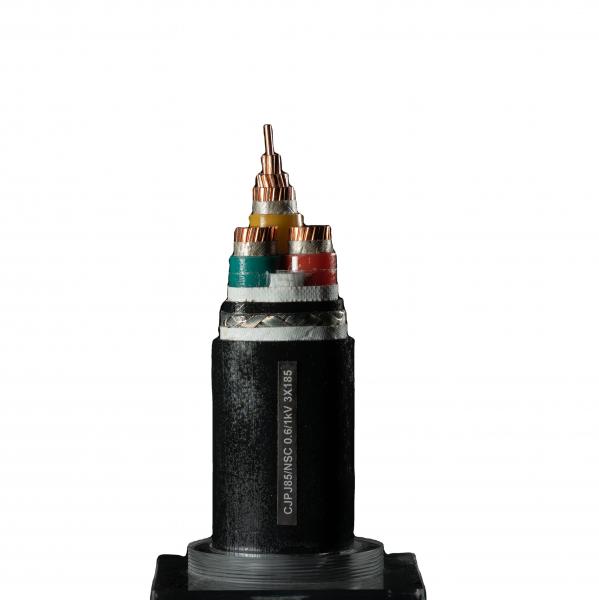

3 core 4 core 5 core XLPE insulated low voltage steel wire armoured LSZH copper power cable

1.Quick Details:
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Certificates: ISO9001,CCC, CE, etc
Insulation Material: polyolefin
Type: Low Voltage
Application: Construction
Conductor Material: Copper
Jacket: LSZH (Low Smoke Zero Halogen) Type
Sizes: 1.5~1000mm2
Sheath: Low-Smoke Halogen-Free
Number of cores: 5 for low voltage
Rated voltage: 0.6/1KVPackaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Characteristics:
Voltage Rating (Uo/U) 600/1000V
Temperature Rating Fixed installation: -20°C to +90°C
Minimum Bending Radius
1.5mm2 to 16mm2 – Fixed: 6 x overall diameter
25mm2 and above – Fixed: 8 x overall diameter

Application;
Multi-core LSZH cable with steel wire armour (SWA). Power and auxiliary control cables for use in power networks, underground, outdoor and indoor applications and for use in cable ducting. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.
