4.5x70mm2 1.1kv Low Voltage Power Cable XLPE Insulated LSZH Sheathed Aluminum

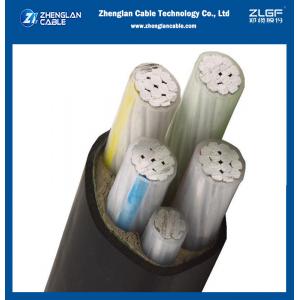

4.5x70mm2 1.1kv Low Voltage Power Cable XLPE Insulated LSZH Sheathed Aluminum image
4.5x70mm2 XLPE insulated LSZH sheathed aluminum cable 1.1kv LV power cable
Application
4.5x70mm2 XLPE insulated LSZH sheathed aluminum cable 1.1kv LV power cable are generally used for fi xed installation. Suitable for building wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for burial in the ground, either directly or in ducts.
Conductor: Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
Insulation: PVC(Polyvinyl Chloride) type TI1
Colour Code 1 Core : Brown 2 Cores: Brown or Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers
Filler(optional) PVC or Polypropylene yarn Binder Tape(optional) Polyester (Mylar) tape
4.5x70mm2 XLPE insulated LSZH sheathed aluminum cable 1.1kv LV power cable Technical parameter
| Conductor dimensions (mm2) | Insulation thickness (mm) | Sheath thickness mm | Outer diameter mm | Cable weight (Kg/km) | ||
| Phase line | Null line | Phase line | Null line | 4+1C | 4+1C | 4+1C |
| 2.5 | 1.5 | 0.7 | 0.7 | 1.8 | 12.8 | — |
| 4 | 2.5 | 0.7 | 0.7 | 1.8 | 14 | 197 |
| 6 | 4 | 0.7 | 0.7 | 1.8 | 15.4 | 237 |
| 10 | 6 | 0.7 | 0.7 | 1.8 | 18.1 | 328 |
| 16 | 10 | 0.7 | 0.7 | 1.8 | 21.1 | 444 |
| 25 | 16 | 0.9 | 0.7 | 1.8 | 24.7 | 606 |
| 35 | 16 | 0.9 | 0.7 | 1.8 | 27.3 | 731 |
| 50 | 25 | 1 | 0.9 | 1.9 | 31.3 | 975 |
| 70 | 35 | 1.1 | 0.9 | 2.1 | 34.4 | 1234 |
| 95 | 50 | 1.1 | 1 | 2.2 | 38.7 | 1579 |
| 120 | 70 | 1.2 | 1.1 | 2.4 | 43.6 | 1993 |
| 150 | 70 | 1.4 | 1.1 | 2.5 | 47.9 | 2380 |
| 185 | 95 | 1.6 | 1.1 | 2.7 | 53.3 | 2946 |
| 240 | 120 | 1.7 | 1.2 | 2.9 | 60.1 | 3701 |
| 300 | 150 | 1.8 | 1.4 | 3.1 | 62.9 | 4480 |
| 400 | 185 | 2 | 1.6 | 3.4 | 67.8 | 5725 |
4.5x70mm2 XLPE insulated LSZH sheathed aluminum cable 1.1kv LV power cable show
About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.
Our main products are
- overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
- 1-35kv overhead transmission line use insulated conductor
- power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
- power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
- 300/300V, 300/500V, 450/750V cotrol cable, house wire
FAQ
1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 500m.
We are China 4.5x70mm2 1.1kv Low Voltage Power Cable XLPE Insulated LSZH Sheathed Aluminum manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
