4-37 Copper Core PVC Insulated Control Cable 450/750V

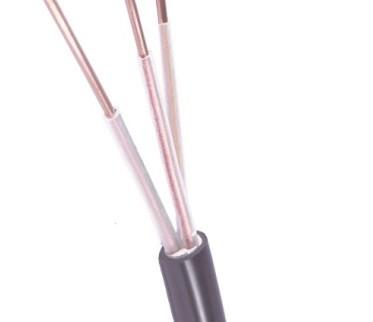

4-37 Copper Core PVC Insulated Control Cable 450/750V image
Brand Name :
Nuoxing
Model Number :
KVV
Certification :
CE/CCC/ISO9001
Place of Origin :
China
MOQ :
1000
Price :
1-100
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 km per month
Delivery Time :
10-20 days
Packaging Details :
standard export packing in wooden drums or boxes
Product Name :
4-37 Copper Core PVC Insulated Control Cable
Conductor material :
Copper
Insulation material :
PVC
Rated voltage :
450/750V
Jacket :
PVC
Standard :
IEC60502
450/750V 4-37 Copper Core PVC Insulated Control Cable IEC60502
Introduction:
KVV PVC Insulated Cable belongs to the control cable in the cables for electrical installations. It has good high temperature resistance, cold resistance and aging resistance. It is generally used for control and monitoring circuits and protection circuits. In addition, flame-retardant, fire-resistant and low-smoke and halogen-free control cables can be produced according to user requirements. Different types of KVV cables have different characteristics and functions.
Basic characteristics:
1. The implementation standard of KVV control cable GB9330-88
2. The long-term allowable working temperature of the core conductor is 70℃, and the ambient temperature when the cable is laid is not lower than 0℃
3. The number of cores that can be produced for the cable is 2-61 cores
4. Cable KVV and KVVR type structure: conductor, insulation layer, tape and sheath
5. KVV control cables are widely laid in fixed places in the city, cable trenches, pipelines, etc.
6. Commonly used models of control cables are KVV, KYJV, KVVP, KVV22, ZC-KVV, NH-KVV, WDZ-KVV, etc.
Specificaiton:
| Product name | PVC Insulated Cable |
| Certifications | CE/CCC/ISO |
| Standard | IEC60502-1 |
| Rated Voltage | 450/750V |
| Conductor material | Copper/Aluminum |
| Insulation Material | PVC |
| Armoured Material | None/Steel Tape/Steel wire |
| Jacket Material | PVC |
| Number of cores | 1C,2C,3C,4C,5C,3+1C,3+2C,4+1C |
| Section area | 1.5MM2 – 400MM2 |
PVC Insulated Cable
We are China 4-37 Copper Core PVC Insulated Control Cable 450/750V manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
