3Cores Copper / Aluminum PVC Insulated Cables 0.6/1KV IEC 60502-1 GB/T 12706-2008 Standard (CU/PVC/LSZH/DSTA )
3Cores Copper / Aluminum PVC Insulated Cables 0.6/1KV IEC 60502-1 GB/T 12706-2008 Standard (CU/PVC/LSZH/DSTA ) image
Brand Name :
Zhenglan cable
Certification :
3C; ISO 9001:2015, ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
1000 meters
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15 Working Days
Packaging Details :
Fully wooden drum, steel wooden drum, fully steel drum or customized
Model Number :
VV22-0.6/1kv-4×150+1x70mm²
Material :
Cu
Insulation :
PVC
Packing detail :
wooden drum, steel and wood drum
Colour :
Black, yellow, red, blue
Cover :
PVC
Rated voltage :
0.6/1KV
Size :
4×150+1x70mm²
3Cores Copper / Aluminum PVC Insulated Cables 0.6/1KV IEC 60502-1 GB/T 12706-2008 Standard (CU/PVC/LSZH/DSTA )
Application:
These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.

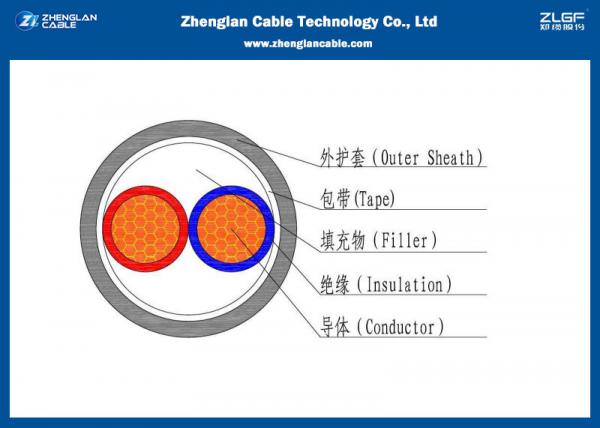

Construction:
Conductors | The conductors shall be either of Class 1 or Class 2 of plain or metal-coated annealed copper or of plain aluminium or aluminium alloy, or of Class 5 of plain or metal-coated copper in accordance with IEC 60228. |
Conductor Shape | Circular Stranded or Compacted Circular Stranded |
Appearance Shape | Circular |
Insulation | PVC Insulation material and thickness shall be as per IEC 60502-1, PVC material shall be Type A as per IEC 60502-1. |
Colour Code |
Colour Code (1) : 3Cores: Red, Yellow, Blue Colour Code (2) : 3Cores: Brown, Black, Grey Other colour can be manufactured upon request. |
Outer Sheath | Outer sheath shall be of extruded PE Type ST1/ST2 as per IEC 60502-1. |
Electrical Properties & Service conditions:
Rated Voltage Uo/U (Um) | 0.6/1kv |
Installation Temperature | Minimum: 0°C,Maximum: 60°C |
Installation Type | Outdoor Direct burial |
Operating Temperature | Maximum: 90°C. |
Short-circuit Maximum Conductor Temperature: | 160℃ |
Min. Bending Radius | Single Core: 15×OD; multi core:12×OD |
Packaging Details:
1. standard seaworthy drum (wooden drum,wooden steel drum, steel drum);
2. drum size can be customized or Meeting container the Max.load size;
3. drum overall diameter can be from 1 meter to 2.5 meters;
4. under customer requirement with certain length packed in rolls wrapped in plastic tape or Nylon plastic tape.
Parameters:
IEC 60502-1
Nominal Cross Section | Diameter of Conductor (Approx.) | Nominal Insulation Thickness | Nominal Sheath Thickness | Overall Diameter (Approx.) |
Mm2 | mm | mm | mm | mm |
3×1.5 | 1.4 | 0.8 | 1.8 | 10.1 |
3×2.5 | 1.8 | 0.8 | 1.8 | 10.9 |
3×4 | 2.3 | 1 | 1.8 | 12.9 |
3×6 | 2.8 | 1 | 1.8 | 13.9 |
3×10 | 3.6 | 1 | 1.8 | 15.7 |
3×16 | 4.5 | 1 | 1.8 | 17.6 |
3×25 | 5.6 | 1.2 | 1.8 | 20.8 |
3×35 | 6.7 | 1.2 | 1.8 | 23.2 |
3×50 | 8 | 1.4 | 1.8 | 26.9 |
3×70 | 9.4 | 1.4 | 1.9 | 30.1 |
3×95 | 11 | 1.6 | 2.1 | 34.7 |
3×120 | 12.4 | 1.6 | 2.2 | 38 |
3×150 | 13.8 | 1.8 | 2.3 | 42.1 |
3×185 | 15.3 | 2 | 2.5 | 46.5 |
3×240 | 17.5 | 2.2 | 2.7 | 52.5 |
3×300 | 19.5 | 2.4 | 2.8 | 58 |
3×400 | 22.6 | 2.6 | 3.1 | 66.1 |
Why choose us
- Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
- Registered capital of $30 million and factory covers an area of 60,000㎡
- Advanced test equipment and procedures, 100% inspection before factory
- Enough stocks and the higest efficient shipping time guarranteed
- Professional pre-sales and after-sales services provided
We are China 3Cores Copper / Aluminum PVC Insulated Cables 0.6/1KV IEC 60502-1 GB/T 12706-2008 Standard (CU/PVC/LSZH/DSTA ) manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
