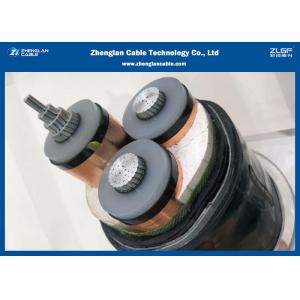

3C Aluminum Conductor XLPE Medium Voltage Cables , 8.7/15kV Armoured Cable （CU/XLPE/LSZH/STA/NYBY/N2XBY） image
3C Aluminum Conductor XLPE Medium Voltage Cables , 8.7/15kV Armoured Cable (CU/XLPE/LSZH/STA/NYBY/N2XBY)
1.Quick Details
Place of Origin: Henan, China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: XLPE
Application: Construction
Conductor Material: Aluminum
Type: Medium Voltage
Jacket: PVC
Sizes: 1.5~1000mm2
Insulation color: Red, yellow, green all according to clients demand
Number of cores: 1-5cores
Rated voltage: 8.7/15KV
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized
2. Applications
The cable are used to transmit and distribute power in power transmission and distribution system of 35kV or lower. It is generally applied to the fields including power, construction, mines, metallurgy, petrochemical industry and communication in complete replace of oil immersed paper insulated power cable.
1)The highest allowed operating temperature of conductor for long-term working is 90 degrees.
2)In short circuit (Max long term is no more than 5 seconds). The highest temperature for conductor is no more than 250 degrees.
3)The cable is laid without horizontal drop limit. The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.
4)Excellent electrical performance, resistance to chemical corrosion.
5)They can stand advisable traction when laid.They can stand traction from Outside.Left low smoke halogen-free after burned.Retard the burning of the cable
3. Why Choose Zhenglan Cable:
>OEM/ODM services provided
>Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
>Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
>Registered capital of $30 million and factory covers an area of 60,000㎡
>Advanced test equipment and procedures, 100% inspection before factory
>Enough stocks and the higest efficient shipping time guarranteed
>Professional pre-sales and after-sales services provided
| Model | Description |
| YJV(YJLV) | Copper(Aluminum) core XLPE insulated PVC sheathed power cable |
| YJV22(YJLV22) | Copper(Aluminum) core XLPE insulated steel tape armoured and PVC sheathed power cable |
| YJV32(YJLV32) | Copper(Aluminum) core XLPE insulated steel wire armoured and PVC sheathed power cable |
| ZR-YJV(ZR-YJLV) | Copper(Aluminum) core XLPE insulated flame retardant PVC sheathed power cable |
| ZR-YJV22(ZR-YJLV22) | Copper(Aluminum) core XLPE insulated steel tape armoured and flame retardant PVC sheathed power cable |
| ZR-YJV32(ZR-YJLV32) | Copper(Aluminum) core XLPE insulated steel wire armoured and flame retardant PVC sheathed power cable |
3C Aluminum Conductor XLPE Medium Voltage Cables , 8.7/15kV Armoured Cable (CU/XLPE/LSZH/STA/NYBY/N2XBY)technical data
| Normal cross sectional area(mm²) | Appro conductor dia(mm) | Nom insulation thickness(mm) | Copper tape thickness(mm) | Copper wire screen area(mm²) | Appro. Insulation dia(mm) | Nom sheath thickness(mm) | Appro overall diameter(mm) | Appro weight(kg/km) | |
| CU | AL | ||||||||
| 25 | 6.05 | 4.5 | 0.1 | 16 | 16.5 | 1.7 | 46 | 3500 | 2400 |
| 35 | 7.10 | 4.5 | 0.1 | 16 | 17.5 | 17 | 48 | 3800 | 2600 |
| 50 | 8.25 | 4.5 | 0.1 | 16 | 18.7 | 1.7 | 51 | 4400 | 3000 |
| 70 | 9.90 | 4.5 | 0.1 | 16 | 20.3 | 1.8 | 55 | 4200 | 2900 |
| 95 | 11.7 | 4.5 | 0.1 | 16 | 22.1 | 1.8 | 59 | 5300 | 3400 |
| 120 | 13.1 | 4.5 | 0.1 | 16 | 23.5 | 1.8 | 62 | 6400 | 4000 |
| 150 | 14.3 | 4.5 | 0.1 | 25 | 24.7 | 1.9 | 65 | 7400 | 4500 |
| 185 | 16.3 | 4.5 | 0.1 | 25 | 26.7 | 1.9 | 69 | 10000 | 5800 |
| 240 | 18.7 | 4.5 | 0.1 | 25 | 29.1 | 2.0 | 75 | 12200 | 6800 |
| 300 | 20.9 | 4.5 | 0.1 | 25 | 31.3 | 2.1 | 80 | 14400 | 7900 |
| 400 | 23.7 | 4.5 | 0.1 | 35 | 34.1 | 2.2 | 87 | 17500 | 9300 |
3C Aluminum Conductor XLPE Medium Voltage Cables , 8.7/15kV Armoured Cable (CU/XLPE/LSZH/STA/NYBY/N2XBY)Images
We are China 3C Aluminum Conductor XLPE Medium Voltage Cables , 8.7/15kV Armoured Cable （CU/XLPE/LSZH/STA/NYBY/N2XBY） manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
