3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable

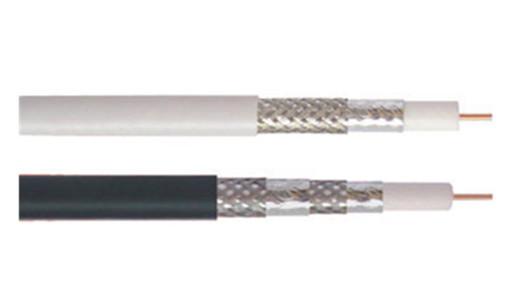

3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable image
Brand Name :
JHY
Model Number :
RG59
Certification :
RoHS/CE/CCC/CB
Place of Origin :
SHENZHEN CHINA
MOQ :
500m
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000m/day
Delivery Time :
5-15day
Packaging Details :
305m/roll
Product name :
Flexible Coaxial cable
Conductor material :
Oxygen free copper
Insulation :
Foam PE
Rated Voltage :
-10ºC~70ºC
Resistance :
75 ohm
Rated voltage :
30V
3c-2v Coaxial Cable 75 Ohm SYV-75-3 RG6 rj6 5C2V 5DFB Coaxial Cable
Production Description:
Description:
RG6 coaxial cable;
Meets GB/T14864-1993 or JIS C 3501;CE, RoHS compliant;
Impedance: 75Ω
Insulation resistance: ≥5000MΩ/km
Operating temperature: -20~70°C
Usage: mainly uses for Closed Circuit Television Monitoring System (CCTV) application, public antenna, video/radio, as well as uses for security monitoring system & television engineering.
Structure details:
Conductor Material: solid bare copper
(Other options: stranded CCS, CU, BC)
Conductor Diameter: 1.02mm
Insulation: 4.51mm FPE/SPE
Shield 1: aluminum foil 100% coverage
Shield 2: braid (material & coverage optional)
Jacket: PVC, LSZH
Overall diameter: 6.91mm
Color: black, white.
| Procuct Construction | STANDARD SHIELD | TRI-SHIELD | QUAD-SHIELD | |
|
CONDUCTOR |
MATERIAL | BC/CCS | BC/CCS | BC/CCS |
| Nom.Dia. | 18AWG | 18AWG | 18AWG | |
|
DIELECTRIC |
MATERIAL | Foam PE | Foam PE | Foam PE |
| Nom.Dia. | 4.57mm | 4.57mm | 4.57mm | |
|
SHIELD |
MATERIAL | Al Foil+Al Braiding | Al Foil+Al Braiding+Al Foil | (Al Foil+Al Braiding)*2 |
| COVERAGE | 40%-95% | 40%-95% | 40%-60% | |
|
JACKET |
MATERIAL | PVC/PE | PVC/PE | PVC/PE |
| Nom.Thick. | 0.80mm | 0.80mm | 0.86mm | |
| Nom.Dia | 6.91mm | 7.06mm | 7.62mm | |
|
MESSENGER |
MATERIAL | Galvanized steel wire | ||
| Nom.Dia. | 1.30mm | 1.30mm | 1.30mm | |
| Nominal Impedance(ohm) | 75±3 | ||
| Nominal Velocity of propagation(%) | 85 | ||
| Nominal Capacitance(pf/m) | 50 | ||
| Spark Test(VAC) | 3000 | ||
| SRL(dB) | 20 | 20 | |
|
Attenuation [68°F(20℃)] |
Frequency(MHz) | Maximum(dB/100ft) | Maximum(dB/100m) |
| 5 | 0.58 | 1.9 | |
| 55 | 1.6 | 5.25 | |
| 187 | 2.85 | 9.35 | |
| 300 | 3.55 | 11.64 | |
| 450 | 4.4 | 14.43 | |
| 600 | 5.1 | 16.73 | |
| 750 | 5.65 | 18.54 | |
| 865 | 6.1 | 20.01 | |
| 1000 | 6.55 |
21.49 |
|
5. Product Image:
Company Information:
| OUR ADVANTAGES | |
|
Shenzhen Jinhuanyu Wire and Cable Co., Ltd. Company Certificates: ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS,etc
To provide quality products and excellent service are our missions. OEM and ODM are welcome. Any further information needed please contact us. |
|
We are China 3c 2v Coaxial Cable , 75 Ohm SYV-75-3 RG6 Rj6 5C2V 5DFB TV Coaxial Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
