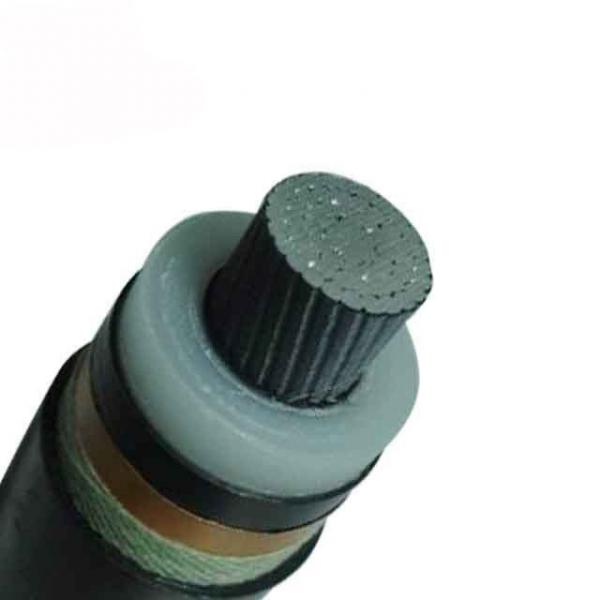

33kV High Voltage Underground Cable
33kV High Voltage Underground Cable image
Place of Origin :
china
Brand Name :
OEM
Supply Ability :
50000meters per week
Packaging Details :
wooden drum
MOQ :
200 meters
Price :
Negotiable
Insulation Material :
XLPE
Type :
Medium Voltage
Application :
Construction
Conductor Material :
Aluminum
Jacket :
PVC
Conductor Screen :
Extruded Semi-conductive compound
Insulation Screen :
Extruded Semi-conductive compound
Metallic Screen :
Copper Tape or Copper Wire
Jacket Color :
Black
No. of Cores :
1
Nominal Cross Sectional Area of Conducto :
25~630mm2
Rated Voltage :
33kV
Design Standard :
IEC 60502-2, IEC 60228 etc.
Product Keywords :
underground cable aluminum cable
Certification :
ISO/RoHS/CE
Delivery Time :
5-15day
Payment Terms :
L/C, T/T
33kv High Voltage Underground Cable
Main Application
XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Construction
Conductor: Plain annealed stranded compacted circular aluminium conductor to IEC60228 class 2
Conductor Screen: Extruded semi-conductive compound
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Insulaton Screen: Extruded semi-conductive compound
Metallic Screen: Copper tape or Copper Wire
Outer Jacket (Sheath): PVC type ST2 to IEC 60502
Technical Parameter of 33kV Al / XLPE / PVC 1C Power Cable
| Aluminum Conductor | Conductor Screen | Insulation | Insulation Screen | Copper Tape Screen | Outer Sheath | |||
| Nominal Cross Sectional Area | Diameter | Thinkness | Thinkness | Thinkness | Width | Layer No. | Thinkness | Thinkness |
| mm² | mm | mm | mm | mm | mm | mm | mm | mm |
| 25 | 6 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 35 | 7 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 50 | 8 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 70 | 10 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 95 | 12 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 120 | 13 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 150 | 15 | 1 | 3 | 1 | 35 | 1 | 0 | 2 |
| 185 | 16 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 240 | 18 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 300 | 21 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 400 | 24 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
| 500 | 27 | 1 | 3 | 1 | 40 | 1 | 0 | 2 |
Our Services
1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
We are China 33kV High Voltage Underground Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
