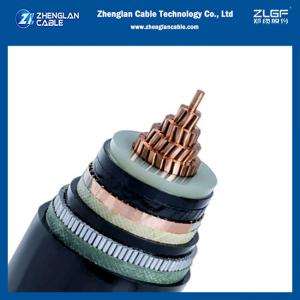

30KV Medium Voltage Power Cable XLPE/PVC insulation SWA/STP armour1x25mm2 Single Core MV Copper image

Get a Quote Email to us

30KV Medium Voltage Power Cable XLPE/PVC insulation SWA/STP armour1x25mm2 Single Core MV Copper

​​APPLICATIONS:

MV power cable single core medium voltage copper cable are designed for distribution of electrical power with nominal voltage Uo/U ranging from 12/20(24)KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

STANDARD:

IEC 60502 Part 2(3.6/6KV to 18/30KV)

Cable Construction

We adopt highly specialized plant, state-of-the-art research facilities and meticulous quality control procedures that are required for the manufacturing of xlpe insulated cables for use up to 6KV and XLPE insulated cables for use at voltages up to 35 KV.

Conductors

oxygen free bare copper conductors circular shape, compacted & stranded and shall comply with IEC 60228 class 2.

Conductor Screen

This will be an extruded layer of semi-conducting crosslinkable compound applied under simultaneous triple extrusion process over the conductor along with the insulation and the insulation screen. The triple extrusion is a single high precision operation that eliminates the possibility of any contamination between the layers which could create irregularities in the electrical field.

Insulation

This will be an extruded layer of XLPE applied over conductor screen under triple extrusion process along with conductor screen and insulation screen.

Insulation Screen

This will be a layer of semi-conducting crosslinkable compound which will be applied by triple extrusion process over the insulation.

Metallic Screen

It will consist of a layer of copper tape applied helically with overlap over insulation screen. Other combinations of metallic screens as per customer ’s requirement can also be provided on request.

Laying-Up

In case of three core cables, the three cores are laid up with non-hygroscopic fillers like polypropylene(PP) fillers at interstices and a binder tape is applied with an overlap. These binder tapes can be of PVC or foamed Polyethylene.

Over Sheath

An extruded layer is applied over the armour in case of armoured cables and over laid up cores in case of unarmoured cables. Outer sheath material can be either PVC, PE, HDPE or MDPE complying with BS 6622 or IEC 60502. Other colors may be provided to suit a range of installation considerations such as the effect of UV radiations and differing soil compositions. Anti-termite formulations can also be supplied in addition to graphite-coated over sheaths where on-site testing of the sheath is required.

Fire Performance on Cable Sheaths

Cables can also be supplied with special flame retardant PVC over sheaths to comply with the IEC 60332 standard. We can also supply cables with Low Smoke Halogen Free (LSZH) sheaths.

18/30KV 1x185mm2 cu/xlpe/cws/lszh-st7 MV power cable single core medium voltage copper cable ​ ​reference technical parameters

Nom. Cross- Section Area Nom. Insulation Thickness Metallic Screen Area Nom.Bedding Thickness Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
mm² mm mm² mm mm mm kg/km
70 8 16 1.2 2.2 40.1 2560
95 8 16 1.2 2.3 42.2 2890
120 8 16 1.2 2.3 44.2 3200
150 8 25 1.3 2.4 47.2 3760
185 8 25 1.3 2.5 49.6 4180
240 8 25 1.3 2.5 52.3 4830
300 8 25 1.4 2.6 55.1 5540
400 8 35 1.4 2.7 58.3 6680
500 8 35 1.5 2.8 62.6 7790
630 8 35 1.5 2.9 66.8 9290

Medium voltage copper cable​ images

Medium voltage copper cable​​ ​​​ Package

Cable testing
