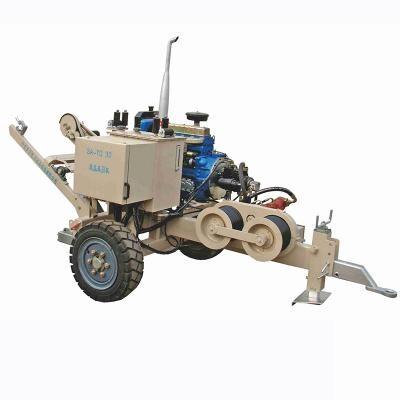

30KN Stringing Hydraulic Puller Tensioner For OPGW ADSS Transmission Project
30KN Stringing Hydraulic Puller Tensioner For OPGW ADSS Transmission Project image
Brand Name :
Suntech
Model Number :
YQZ30
Certification :
ISO,CE
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10sets per month
Delivery Time :
In Stock
Packaging Details :
Exported Containers
Name :
Hydraulic Puller Tensioner
Pulling Force :
30KN
Max Pulling Speed :
5km/h
Max Continual Tension :
25kn
Apply :
Pulling And Tensioning OPGW
Warranty :
At least one year
30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
Brief Introduction:
30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
A transmission line tension stringing and aerial cableway erection job tension of the tension machine. The liner is fixed round groove of the main driven wheels arranged in parallel composition, and a diameter of the driven wheel driving wheel diameter 0.6 to 0.95, the master, the driven wheel two further fixed wheel and two or more groove substrate. When the wire is rotated by external traction rounds, only the large diameter drive wheel braking force that is applied. Selection round slot liner material of different coefficient of friction the wire by force, to avoid wire lantern, to protect the wire and release the tension wheel uniform wire. While the whole weight, smaller in size and lower cost.
Principle:
30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
Automatic hydraulic tensile machine manufacturer in Germany ZECK Features: Each friction wheel is driven by a hydraulic motor planetary gear transmission efficiency, frustrated not stop and then start producing sheet when the wire damage. Friction wheel with a special pad to protect the wires, replace the easy life assurance work up to 1200 hours. Patents have ground and pressure line features automatic rope fixed.
Application:
30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
30KN Hydraulic Wire Conductor Tensioner Used in 220KV Overhead Line Transmission is used to string various conducts and earthwire.
Technical Data:
30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
| Model Type | YQZ30 |
| Overall Size(MM) | 3560 ×1600 ×2220 |
| Weight(KG) | 1700 |
| Max Tension(KN) | 30 |
| Max Continual Tension(KN) | 25 |
| Max Velocity(km/h) | 5 |
| Diameter of Tension wheel(mm) | 1200 |
| Solt No. of Tension wheel | 5 |
| Rated Pulling Force (KN) | 30 |
| Max Pulling Speed(km/h) | 5 km/h |
| Max dia of wire | Φ32mm |
| Engine Power | 11KW/ 2200 r/min |
| Voltage | 12V |
Feature:
30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
1. Bullwheel with wearproof MC nylon lining segments.
2. infinitely variable tension control and constant tension conductor stringing .
3. it adapt Italian reducer .
4. spring applied hydraulic released brake acts automatically in case of hydraulic
failure to ensure safety
Main component:
30KN Hydraulic Cable Tensioner Used For OPGW ADSS Transmission Project
1. Engine :Domestic water –cooled engine .
2. Main pump/motor ,Chinese famous branded pump and motor .
3. Reducer :RR(Italian )
4. Radiator: AKG
5. Hydraulic instrument : WIKA
6. It can choose import engine.
We are China 30KN Stringing Hydraulic Puller Tensioner For OPGW ADSS Transmission Project manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
